Finish Thompson

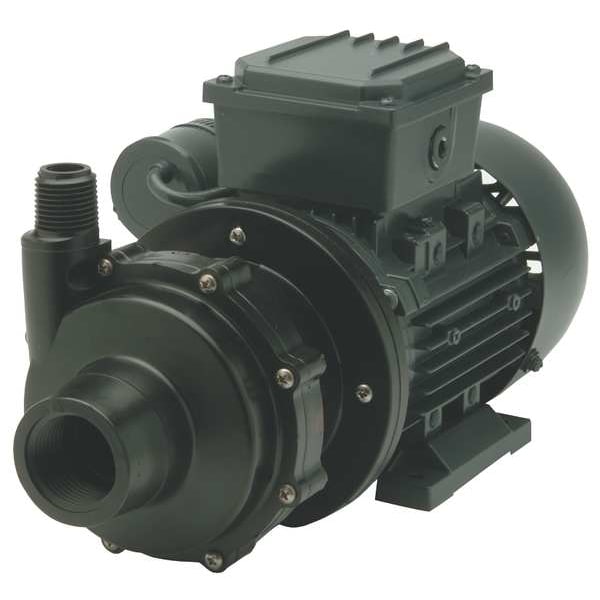

1/8 HP PVDF Magnetic Drive Pump 115V 1" FNPT

product price: $597.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • HP 1/8 hp
  • Voltage 115
  • Inlet 1 in FNPT
  • Outlet 1/2 in MNPT
  • Max. Head 21 ft
See all product information

Product Information

Dimensions

Length 11 3/4 in
Width 6 3/16 in
Height 6 in
Manufacturers Warranty Length 5 yr
Intake Pipe Size 1 in
Overall Height 6 in
Discharge Pipe Size 1/2 in
Overall Width 6.2 in
Overall Length 11.8 in

Details

Item Magnetic Drive Pump
HP 1/8 hp
Voltage 115
Inlet 1 in FNPT
Outlet 1/2 in MNPT
Max. Head 21 ft
Operating Pressure 8.2 psi
Housing Material PVDF
GPM of Water @ 15 Ft. of Head 8.5 gpm
Mounting Close Coupled
Series DB3
GPM of Water @ 18 Ft. of Head 5.5 gpm
GPM of Water @ 3 Ft. of Head 15 gpm
GPM of Water @ 9 Ft. of Head 12.5 gpm
Motor Enclosure Totally Enclosed Fan Cooled
Design Centrifugal
Max. Specific Gravity 1.2
GPM of Water @ 6 Ft. of Head 14 gpm
Impeller Material PVDF
Application Acids, DI-Water, Plating Solutions, Sodium Hypochlorite
Full Load Amps 1.55
Max. Viscosity 50 CPS
Gasket Material Fluoroelastomer
Motor Type Permanent Split Capacitor
Bearing Type Radial, Thrust
Temp. @ 10 psig 220 Degrees F
Temp. @ 30 psig 220 Degrees F
Temp. @ 0 psig 220 Degrees F
Temp. @ 20 psig 220 Degrees F
Chemical Compatibility Deionized Water
Mounting Orientation Horizontal
Motor Mounting Type Horizontal
Feet of Head (Maximum) 20.4 ft
Discharge Pipe Type MNPT
Flow Rate @ 3 ft of Head (Maximum) 15 gpm
Nameplate Voltage 115V AC
Flow Rate @ 9 ft of Head (Maximum) 12.5 gpm
Phase Single
Operating Pressure (Maximum) 8.2 psi
Motor Speed (Maximum) 3,450 RPM
Flow Rate @ 18 ft of Head (Maximum) 5.5 gpm
Flow Rate @ 15 ft of Head (Maximum) 8.5 gpm
Full Load Current 1.55 A
Viscosity (Maximum) 50 cps
Priming Manual
Specific Gravity (Maximum) 1.8
Media Temperature (Maximum) 220 Degrees F
Horsepower (Maximum) 1/8 hp
Flow Rate @ 6 ft of Head (Maximum) 14 gpm
Intake Pipe Type FNPT

Description

Magnetic Drive Pump, Chemical Compatibility Deionized Water, Discharge Pipe Size 1/2 in, Discharge Pipe Type MNPT, Feet of Head (Maximum) 20.4 ft, Flow Rate @ 3 ft of Head (Maximum) 15 gpm, Flow Rate @ 6 ft of Head (Maximum) 14 gpm, Flow Rate @ 9 ft of Head (Maximum) 12.5 gpm, Flow Rate @ 15 ft of Head (Maximum) 8.5 gpm, Flow Rate @ 24 ft of Head (Maximum) Not Applicable, Flow Rate @ 50 ft of Head (Maximum) Not Applicable, Horsepower (Maximum) 1/8 hp, Intake Pipe Size 1 in, Intake Pipe Type FNPT

Restrictions

  • Hazardous material
