- Item

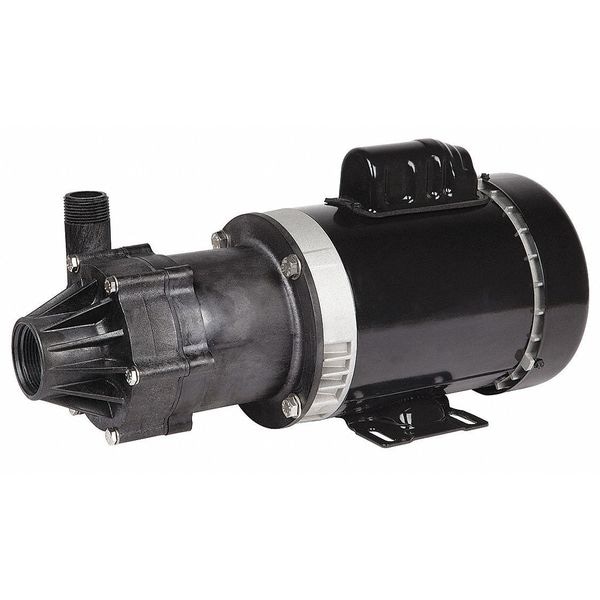

- Magnetic Drive Pump
- HP
- 3/4 hp
- Voltage
- 115/230
- Inlet
- 1-1/2 in FNPT
- Outlet
- 1 in MPT
- Max. Head
- 58.9 ft
- Operating Pressure
- 25.5 psi
- Housing Material
- Glass-Filled Polyphenylene
- Impeller Material
- Carbon/Polyphenylene
- GPM of Water @ 40 Ft. of Head
- 30.8 gpm
- Temp. @ 30 psig
- 165 Degrees F
- Design
- Gravity-feed, Requires the Pump Inlet to be Lower than Liquid Level
- GPM of Water @ 15 Ft. of Head
- 45 gpm
- Motor Type
- Permanent Split Capacitor
- GPM of Water @ 9 Ft. of Head
- 46.5 gpm
- GPM of Water @ 18 Ft. of Head
- 43 gpm
- Application
- For Highly Corrosive Chemicals, Eliminates Seal-caused Friction Loss, Wear, Contamination and Leakage
- Bearing Type
- Ball
- GPM of Water @ 6 Ft. of Head
- 48.8 gpm
- Motor Enclosure
- Totally Enclosed Fan Cooled
- Temp. @ 0 psig
- 180 Degrees F
- GPM of Water @ 50 Ft. of Head
- 21.7 gpm
- Mounting
- Horizontal
- Max. Viscosity
- 100 SSU
- Gasket Material
- FKM
- Series
- MD-HC
- Temp. @ 20 psig
- 170 Degrees F
- Max. Specific Gravity
- 1.1
- Temp. @ 10 psig
- 175 Degrees F
- Full Load Amps
- 11.80/5.90 A
- GPM of Water @ 3 Ft. of Head
- 51 gpm
- GPM of Water @ 24 Ft. of Head
- 40 gpm
- Flow Rate @ 18 ft of Head (Maximum)
- 43 gpm
- Intake Pipe Type
- FNPT
- Flow Rate @ 24 ft of Head (Maximum)
- 40 gpm
- Phase
- Single
- Viscosity (Maximum)
- 100 SUS
- Flow Rate @ 40 ft of Head (Maximum)
- 30.8 gpm
- Flow Rate @ 3 ft of Head (Maximum)
- 51 gpm
- Specific Gravity (Maximum)
- 1.1
- Feet of Head (Maximum)
- 58.5 ft
- Motor Mounting Type
- Horizontal
- Flow Rate @ 15 ft of Head (Maximum)
- 45 gpm
- Nameplate Voltage
- 115/230V AC
- Operating Pressure (Maximum)
- 25.5 psi
- Frequency
- 60 Hz
- Flow Rate @ 50 ft of Head (Maximum)
- 21.6 gpm
- Full Load Current
- 11.8 A
- Horsepower (Maximum)
- 3/4 hp
- Ambient Temperature (Maximum)
- 77 Degrees F
- Flow Rate @ 9 ft of Head (Maximum)
- 46.5 gpm
- Media Temperature (Maximum)
- 200 Degrees F
- Discharge Pipe Type
- NPT
- Flow Rate @ 6 ft of Head (Maximum)
- 51 gpm
- Case Pressure - Maximum
- 25.5 psi
- Motor Design
- Permanent Split Capacitor
- Chemical Compatibility
Acetylene,Acid,Alcohol,Aluminum Chloride,Aluminum Chloride 20%,Aluminum Sulfate,Ammonium Chloride,Ammonium Hydroxide,Antifreeze,Barium Chloride,Barium Hydroxide,Barium Sulfate,Benzene,Borax,Butadiene,Butane,Butylene,Calcium Chloride,Calcium Sulfate,Carbon Disulfide,Chlorobenzene,Copper Cyanide,Copper Sulfate 5%,Cyclohexane,Diesel Fuel,Distilled,Ethyl Chloride,Ethylene Chloride,Ethylene Glycol,Ferric Chloride,Ferrous Chloride,Ferrous Sulfate,Formic Acid,Fuel Oil,Gasoline,Heptane,Hexane,Jet Fuel,Kerosene,Lactic Acid,Lubricants,Magnesium Hydroxide,Magnesium Sulfate,Mine,Naphtha,Naphthalene,Cotton Seed Oil,Mineral Oil,Perchloroethylene,Plating Solutions,Potassium Bicarbonate,Potassium Carbonate,Potassium Chlorate,Potassium Chloride,Potassium Dichromate,Potassium Permanganate,Potassium Sulfate,Salt,Soap,Sodium Aluminate,Sodium Bicarbonate,Sodium Bisulfate,Sodium Bisulfite,Sodium Carbonate,Sodium Chlorate,Sodium Chloride,Sodium Chromate,Sodium Cyanide,Sodium Sulfate,Sodium Sulfide,Sodium Thiosulphate,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 1% to 10%,Tomato Juice,Turpentine,Vinegar,Water,Xylene,Zinc Chloride,Zinc Sulfate
- Pump Drive Configuration
- Close-Coupled
- Ambient Temperature - Minimum
- 32 Degrees F
- Number of Stages
- 1
- Best Efficiency Head
- 32.5 ft
- Mounting Orientation
- Horizontal
- Priming
- Manual
- Pump Mounting Style
- Base-Mounted
- Best Efficiency Flow
- 32.5 gpm
- Media Temperature - Maximum
- 200 Degrees F
- Hazardous Location Class
- Not Rated
- Pump Design
- End Suction
- Pumping Application
- Chemical Transfer
- Media Temperature - Minimum
- 32 Degrees F
- Shaft Seal Type
- Sealless
- Drive Coupling Type
- Magnetic Coupling
- Flow Rate (Maximum)
- 53 gpm
- Ambient Temperature - Maximum
- 77 Degrees F
- Shut Off Pressure - Maximum
- 25.3 psi
