Shop LITTLE GIANT PUMP

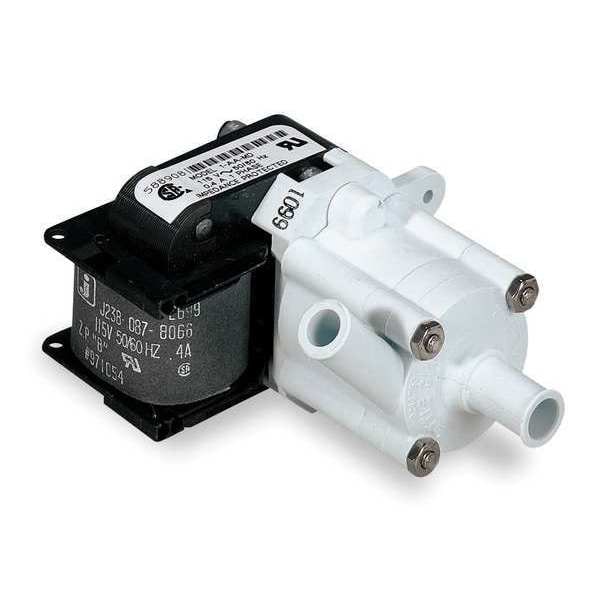

1/200 HP Polypropylene Magnetic Drive Pump 115V 1/2" OD

  • Mfr # 588001

  • Zoro # G1394163

product price:
$
160.99
/ea
Free Shipping & Returns

Key Features

HP
1/200 hp
Voltage
115
Inlet
1/2 in OD
Outlet
1/2 in OD
Max. Head
5.5 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
588001
Zoro #
G1394163
UPC #
010121889088
Country of Origin
Mexico

Dimensions

Length
4.9 in
Width
2 1/2 in
Cord Length
6 ft
Height
3 3/4 in
Overall Width
2.4 in
Overall Height
3.7 in
Overall Length
4.9 in
Intake Pipe Size
1/2 in
Discharge Pipe Size
1/2 in
Manufacturers Warranty Length
1 yr
Inlet Diameter
1/2 in
Impeller Diameter
1 37/200 in
Discharge Diameter
1/2 in
Wire Rope Length
4.9 in

Details

Item
Magnetic Drive Pump
HP
1/200 hp
Voltage
115
Inlet
1/2 in OD
Outlet
1/2 in OD
Max. Head
5.5 ft
Housing Material
Glass-Filled Polypropylene
Full Load Amps
0.4 A
Design
Gravity-feed, Requires the Pump Inlet to be Lower than Liquid Level
Motor Enclosure
Open Air Over
Temp. @ 0 psig
150 Degrees F
Max. Viscosity
100 SSU
GPM of Water @ 3 Ft. of Head
2.1 gpm
Temp. @ 10 psig
120 Degrees F
Application
For Photographic and Plating Solutions, Mild Acids, Mild Alkalis and Other Nonflammable Liquids Compatible with Pump Component Materials, Eliminates Seal-Caused Friction Loss, Wear, Contamination and Leakage
Temp. @ 30 psig
70 Degrees F
Cord Type
Stripped Leads
Motor Type
Shaded Pole
Gasket Material
Buna-N
Temp. @ 20 psig
90 Degrees F
Series
MD
Impeller Material
Polypropylene
Max. Specific Gravity
1.1
Mounting
Horizontal
Feet of Head (Maximum)
5.4 ft
Full Load Current
0.4 A
Discharge Pipe Type
Hose
Intake Pipe Type
Hose
Specific Gravity (Maximum)
1.1
Ambient Temperature (Maximum)
77 Degrees F
Frequency
60 Hz
Horsepower (Maximum)
1/200 hp
Motor Mounting Type
Horizontal
Viscosity (Maximum)
100 SUS
Phase
Single
Media Temperature (Maximum)
150 Degrees F
Flow Rate @ 3 ft of Head (Maximum)
1.7 gpm
Operating Pressure (Maximum)
2.33 psi
Nameplate Voltage
115V AC
Flow Rate (Maximum)
2.7 gpm
Inlet Standard
Hose
Ambient Temperature - Maximum
77 Degrees F
Case Pressure - Maximum
2.3 psi
Best Efficiency Flow
1.5 gpm
Chemical Compatibility
Priming
Manual
Media Temperature - Minimum
32 Degrees F
Pump Mounting Style
Base-Mounted
Shut Off Pressure - Maximum
2.3 psi
Number of Stages
1
Pump Drive Configuration
Close-Coupled
Media Temperature - Maximum
150 Degrees F
Best Efficiency Head
3.5 ft
Pumping Application
Chemical Transfer
Pump Design
End Suction
Mounting Orientation
Horizontal
Ambient Temperature - Minimum
32 Degrees F
Drive Coupling Type
Magnetic Coupling
Hazardous Location Class
Not Rated
Discharge Standard
Hose
Shaft Seal Type
Sealless

Description

Magnetic Drive Pump

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hazardous material
