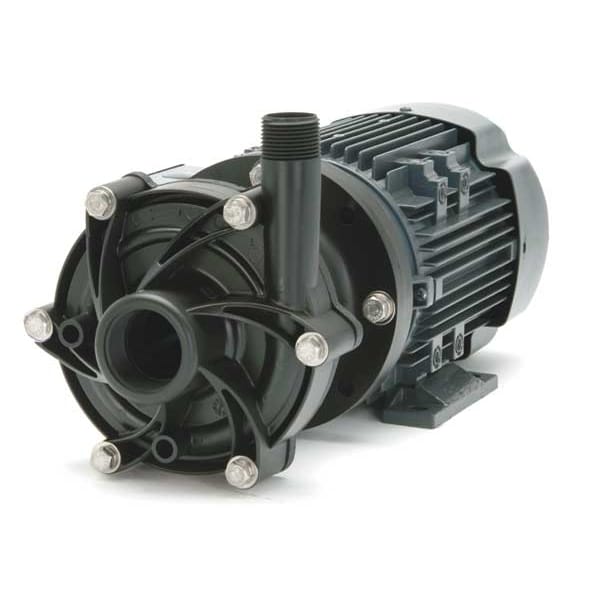

3/4 HP PVDF Magnetic Drive Pump 208-230/460V 1-1/2" FNPT

  • Mfr # DB8V-T-M205
  • Zoro # G3140295
product price:
$
1,340.99
/ea
Free Shipping & Returns

Key Features

HP
3/4 hp
Voltage
208V to 230V, 460V
Inlet
1-1/2 in FNPT
Outlet
1 in MNPT
Max. Head
45 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DB8V-T-M205
Zoro #
G3140295
UPC #
-
Country of Origin
United States

Dimensions

Length
17.3 in
Width
7 1/2 in
Height
8 19/64 in
Overall Width
7.5 in
Discharge Pipe Size
1 in
Overall Height
8.3 in
Overall Length
17.3 in
Manufacturers Warranty Length
5 yr
Intake Pipe Size
1 1/2 in
Discharge Diameter
1 in
Impeller Diameter
3 63/100 in
Inlet Diameter
1 1/2 in
Wire Rope Length
17.3 in

Details

Item
Magnetic Drive Pump
HP
3/4 hp
Voltage
208V to 230V, 460V
Inlet
1-1/2 in FNPT
Outlet
1 in MNPT
Max. Head
45 ft
Operating Pressure
19.5 psi
Housing Material
PVDF
GPM of Water @ 3 Ft. of Head
61 gpm
Motor Enclosure
Totally Enclosed Fan Cooled
Gasket Material
FKM
GPM of Water @ 40 Ft. of Head
30 gpm
Max. Specific Gravity
1.5
Bearing Type
Radial, Thrust
Design
Centrifugal
Mounting
Horizontal
Full Load Amps
2.4-2.3/1.15 A
Series
DB8
GPM of Water @ 18 Ft. of Head
55 gpm
GPM of Water @ 15 Ft. of Head
58 gpm
Impeller Material
PVDF
Motor Type
Induction
GPM of Water @ 9 Ft. of Head
61 gpm
GPM of Water @ 24 Ft. of Head
50 gpm
Application
Acids, DI Water, Plating Solutions, Sodium Hypochlorite
Max. Viscosity
100 cps
GPM of Water @ 6 Ft. of Head
61 gpm
Horsepower (Maximum)
3/4 hp
Motor Speed (Maximum)
3,450 RPM
Flow Rate @ 3 ft of Head (Maximum)
61 gpm
Discharge Pipe Type
MNPT
Viscosity (Maximum)
150 cps
Mounting Orientation
Horizontal
Flow Rate @ 24 ft of Head (Maximum)
50 gpm
Media Temperature (Maximum)
220 Degrees F
Flow Rate @ 15 ft of Head (Maximum)
58 gpm
Flow Rate @ 18 ft of Head (Maximum)
55 gpm
Feet of Head (Maximum)
45 ft
Nameplate Voltage
208-230/460V AC
Flow Rate @ 6 ft of Head (Maximum)
61 gpm
Intake Pipe Type
FNPT
Priming
Manual
Flow Rate @ 40 ft of Head (Maximum)
30 gpm
Chemical Compatibility
Operating Pressure (Maximum)
19.5 psi
Full Load Current
2.5-2.26/1.13A
Phase
Three
Flow Rate @ 9 ft of Head (Maximum)
61 gpm
Specific Gravity (Maximum)
1.8
Motor Mounting Type
Horizontal
Number of Stages
1
Pumping Application
Chemical Transfer, Liquid Transfer
Flow Rate (Maximum)
61 gpm
Ambient Temperature - Minimum
-20 Degrees F
Shaft Seal Type
Sealless
Shut Off Pressure - Maximum
19.4 psi
Best Efficiency Head
35 ft
Ambient Temperature - Maximum
220 Degrees F
Motor Design
Three-Phase
Media Temperature - Maximum
220 Degrees F
Discharge Rotation Increments
0 Degrees
NPSHr
8 ft
Case Pressure - Maximum
80 psi
Media Temperature - Minimum
35 Degrees F
Hazardous Location Class
Class I Division 2
Pump Mounting Style
Base-Mounted, Foot-Mounted
Pump Drive Configuration
Close-Coupled
Drive Coupling Type
Magnetic Coupling
Best Efficiency Flow
38 gpm
Pump Design
End Suction

Description

Magnetic Drive Pump

Restrictions

Hazardous material
