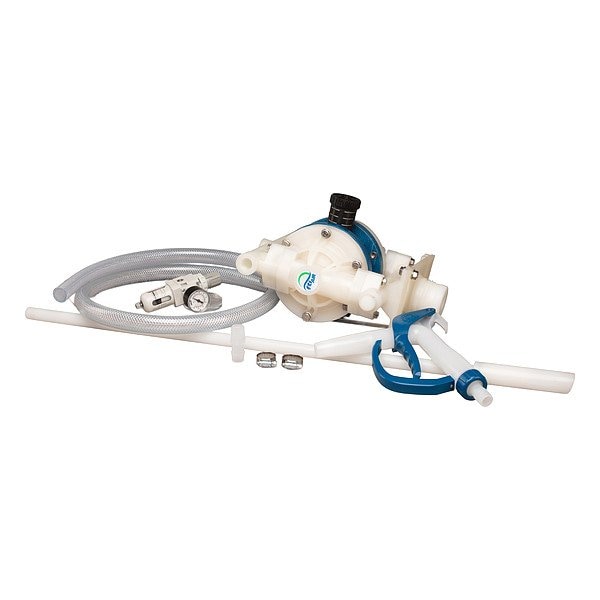

Air Drum Pump, 19 gpm, 100 psi, 1:1

  • Mfr # FT05V-PP-2TVC-N4-K2 KIT

  • Zoro # G021686501

product price:  $2,326.99
/ea
Free Shipping & Returns

Key Features

Discharge Tube Outlet ID
3/4 in
Spout Length
3/4 in
Maximum Fluid Temperature
220 Degrees F
Thermal Protection
No
Includes Bung Adapter
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FT05V-PP-2TVC-N4-K2 KIT
Zoro #
G021686501
UPC #
-
Country of Origin
United States

Dimensions

Spout Length
3/4 in
Air Outlet Size
1/2 in
Adapter Connection Diameter
2 in
Suction Tube Length
40 in
Air Inlet Connection Size
1/4 in
For Container Size
55 gal
Hose Inside Diameter
3/4 in
Spout Connection Size
3/4 in
Hose Length
60 in

Details

Discharge Tube Outlet ID
3/4 in
Maximum Fluid Temperature
220 Degrees F
Thermal Protection
No
Item
Air Drum Pump
Includes Bung Adapter
Yes
Hazardous Location Class
Not Rated
Minimum Fluid Temperature
10 Degrees F
Nozzle Material
PVDF/FKM
Maximum Head
43 ft
Suction Tube ID
1/2 in
Adapter Material
PVDF
Variable Speed
Yes
Hose Tube Material
PVC
Maximum Viscosity
5,000 cps
Discharge Tube Outlet OD
1 1/4 in
Air Inlet Connection Type
FNPT
Includes Discharge Hose
Yes
Pressure Ratio
1:1
Maximum Outlet Pressure
100 psi
Includes Nozzle
Yes
Maximum Flow Rate
19 gpm
Static Protection
Not Groundable
Maximum Head Pressure
100 psi
For Container Type
Drum
Meter Type Included
No Meter Included
Includes
Clamp, Dip Tube, Filter Regulator, Fittings, Hose, Pump
Pump Technology
Diaphragm
Noise Level
72.1 dB
Maximum Air Pressure
100 psi
Spout Connection Type
Hose Barb
Spout Material
PVDF
Suction Tube Material
PVDF
Housing Material
PVDF
Hose Cover Material
PVC
Suction Tube OD
1/2 in
Standards
CE
Includes Follower Plate
No Follower Plate Included
Wetted Material
PTFE/PVDF
Minimum Air Pressure
20 psi
Air Consumption
30 scfm
Container Cover Type Included
No Cover Included
Discharge Connection Type
NPT
Mounting Bracket Included
No Mounting Bracket Included
Nozzle Operation
Manual
Duty Cycle
Continuous
Chemical Compatibility
Includes Suction Tube
Yes
Includes Spout
Yes
Power Source - TS Only
Air
Power Source
Air

Description

Air Drum Pump, Spout Connection Size 3/4 in, Suction Tube Material PVDF, Discharge Connection Type NPT, Spout Length 3/4 in, Thermal Protection No, Air Outlet Size 1/2 in, Air Consumption 30 scfm, Hose Length 60 in, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 72.1 dB, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter Yes, Includes Nozzle Yes, Includes Spout Yes, Adapter Material PVDF
