Shop FINISH THOMPSON

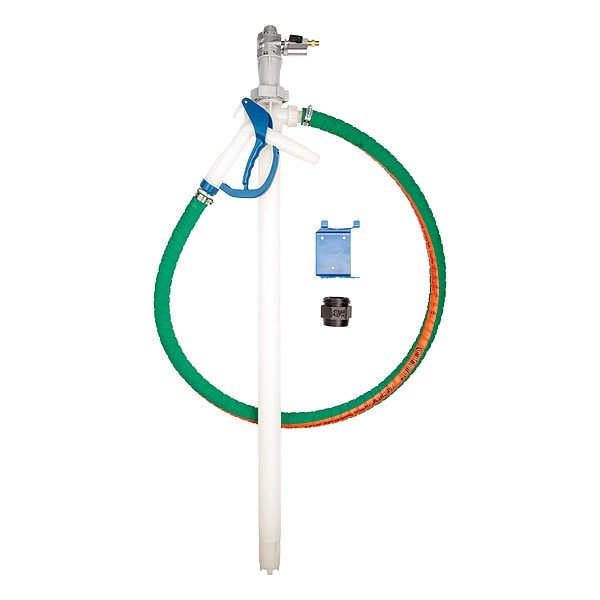

Air Drum Pump Kit, 22 gpm, 16.5 psi

  • Mfr # PFV-40 & M6 Kit

  • Zoro # G121686593

product price:  $1,564.99
/ea
Free Shipping & Returns

Key Features

For Container Type
Drum
Nozzle Material
PVDF/FKM
Static Protection
Not Groundable
Hose Inside Diameter
1 in
Thermal Protection
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PFV-40 & M6 Kit
Zoro #
G121686593
UPC #
-
Country of Origin
United States

Dimensions

Hose Inside Diameter
1 in
Spout Connection Size
1 in
Air Inlet Connection Size
1/4 in
Hose Length
72 in
Air Outlet Size
1/4 in
For Container Size
55 gal
Adapter Connection Diameter
2 in
Spout Length
1 in
Suction Tube Length
40 in

Details

For Container Type
Drum
Nozzle Material
PVDF/FKM
Static Protection
Not Groundable
Thermal Protection
No
Spout Material
PVDF
Maximum Outlet Pressure
16.5 psi
Hose Cover Material
Polyethylene
Item
Air Drum Pump Kit
Includes Spout
Yes
Meter Type Included
No Meter Included
Power Source - TS Only
Air
Adapter Connection Standard
Smooth Bore
Chemical Compatibility
Motor Speed
9,000 RPM
Nozzle Operation
Manual
Includes Bung Adapter
Yes
Includes Follower Plate
No Follower Plate Included
Noise Level
78 dB
Discharge Tube Outlet OD
1 1/4 in
Housing Material
PVDF
Hazardous Location Class
Not Rated
Maximum Flow Rate
22 gpm
Maximum Head Pressure
16.5 psi
Standards
CE
Discharge Tube Outlet ID
1 in
Includes Nozzle
Yes
Minimum Fluid Temperature
32 Degrees F
Discharge Connection Type
Hose Barb
Minimum Air Pressure
80 psi
Mounting Bracket Included
Wall Mounting Bracket
Air Inlet Connection Type
MNPT
Maximum Fluid Temperature
120 Degrees F
Variable Speed
Yes
Container Cover Type Included
No Cover Included
Suction Tube ID
2 in
Includes Suction Tube
Yes
Maximum Head
38 ft
Suction Tube Material
PVDF
Maximum Air Pressure
80 psi
Includes
Clamp, Hose, Motor, Mount, Pump
Includes Discharge Hose
Yes
Maximum Viscosity
330 cps
Duty Cycle
Continuous
Hose Tube Material
Polyethylene
Spout Connection Type
Hose Barb
Motor Horsepower
1/2 hp
Adapter Material
Polypropylene
Pump Technology
Centrifugal
Suction Tube OD
2 in
Air Consumption
32 cfm
Wetted Material
Alloy 625/FKM/PTFE/PVDF
Power Source
Air

Description

Air Drum Pump Kit, Spout Connection Size 1 in, Suction Tube Material PVDF, Discharge Connection Type Hose Barb, Spout Length 1 in, Thermal Protection No, Air Outlet Size 1/4 in, Air Consumption 32 cfm, Hose Length 72 in, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 78 dB, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter Yes, Includes Nozzle Yes, Includes Spout Yes, Adapter Material Polypropylene
