Shop FINISH THOMPSON

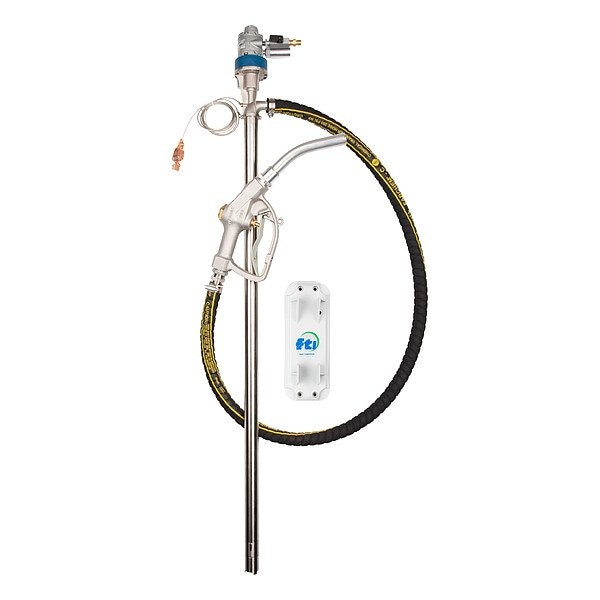

Air Drum Pump Kit, 15 gpm, 7.4 psi

  • Mfr # EFS-40 & S4 Kit

  • Zoro # G821683076

product price:  $1,342.99
/ea
Free Shipping & Returns

Key Features

Maximum Outlet Pressure
7.4 psi
Spout Material
Stainless Steel
Includes Nozzle
Yes
Spout Connection Size
3/4 in
Maximum Air Pressure
40 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EFS-40 & S4 Kit
Zoro #
G821683076
UPC #
-
Country of Origin
United States

Dimensions

Spout Connection Size
3/4 in
Air Outlet Size
1/4 in
Hose Length
60 in
Suction Tube Length
40 in
Hose Inside Diameter
3/4 in
Air Inlet Connection Size
1/4 in
For Container Size
55 gal
Spout Length
1 in

Details

Maximum Outlet Pressure
7.4 psi
Spout Material
Stainless Steel
Includes Nozzle
Yes
Maximum Air Pressure
40 psi
Mounting Bracket Included
Wall Mounting Bracket
Nozzle Material
Aluminum
Spout Connection Type
Hose Barb
Container Cover Type Included
No Cover Included
Duty Cycle
Continuous
Includes Bung Adapter
No
Housing Material
316 Stainless Steel
Suction Tube ID
2 1/4 in
Air Inlet Connection Type
MNPT
Maximum Fluid Temperature
212 Degrees F
Maximum Head Pressure
7.4 psi
Motor Horsepower
1/2 hp
Maximum Head
17 ft
Wetted Material
316 SS/ETFE/FKM/PTFE
Discharge Connection Type
Hose Barb
Motor Speed
11,000 RPM
Maximum Flow Rate
15 gpm
Chemical Compatibility
Meter Type Included
No Meter Included
Includes Follower Plate
No Follower Plate Included
For Container Type
Drum
Includes Spout
Yes
Suction Tube Material
316 Stainless Steel
Nozzle Operation
Manual
Pump Technology
Centrifugal
Hazardous Location Class
Not Rated
Discharge Tube Outlet ID
3/4 in
Power Source - TS Only
Air
Variable Speed
Yes
Includes
Clamp, Hose, Motor, Mount, Pump
Air Consumption
27 cfm
Static Protection
Not Groundable
Item
Air Drum Pump Kit
Includes Discharge Hose
Yes
Suction Tube OD
1 1/4 in
Minimum Air Pressure
40 psi
Discharge Tube Outlet OD
1 in
Maximum Viscosity
300 cps
Hose Cover Material
PVC
Thermal Protection
No
Includes Suction Tube
Yes
Standards
CE
Hose Tube Material
PVC
Minimum Fluid Temperature
-20 Degrees F
Noise Level
78 dB
Power Source
Air

Description

Air Drum Pump Kit, Spout Connection Size 3/4 in, Suction Tube Material 316 Stainless Steel, Discharge Connection Type Hose Barb, Spout Length 1 in, Thermal Protection No, Air Outlet Size 1/4 in, Air Consumption 27 cfm, Hose Length 60 in, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 78 dB, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter No, Includes Nozzle Yes, Includes Spout Yes, Adapter Material Not Applicable
