Shop FINISH THOMPSON

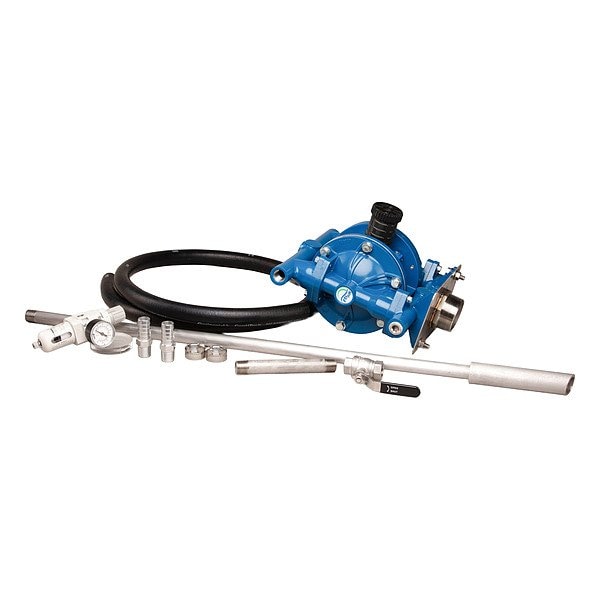

Air Drum Pump, 20 gpm, 125 psi, 1:1

  • Mfr # FT05A-AA-BBAB-N4-K3 KIT

  • Zoro # G021669580

product price:
$
1,873.99
/ea
Free Shipping & Returns

Key Features

Spout Material
Aluminum
Includes Suction Tube
Yes
Includes Nozzle
No
Discharge Tube Outlet ID
3/4 in
Housing Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FT05A-AA-BBAB-N4-K3 KIT
Zoro #
G021669580
UPC #
-
Country of Origin
United States

Dimensions

Air Inlet Connection Size
1/4 in
Spout Connection Size
3/4 in
Hose Length
60 in
Adapter Connection Diameter
2 in
For Container Size
55 gal
Air Outlet Size
1/2 in
Spout Length
3/4 in
Hose Inside Diameter
3/4 in
Suction Tube Length
40 in

Details

Spout Material
Aluminum
Includes Suction Tube
Yes
Includes Nozzle
No
Discharge Tube Outlet ID
3/4 in
Housing Material
Aluminum
Mounting Bracket Included
No Mounting Bracket Included
Discharge Tube Outlet OD
1 1/4 in
Thermal Protection
No
Variable Speed
Yes
Adapter Material
Stainless Steel
Includes Spout
Yes
Duty Cycle
Continuous
Wetted Material
Aluminum/Buna-N
Noise Level
72.1 dB
Maximum Fluid Temperature
190 Degrees F
Minimum Fluid Temperature
10 Degrees F
Hose Cover Material
Buna-N
For Container Type
Drum
Power Source - TS Only
Air
Discharge Connection Type
NPT
Maximum Viscosity
5,000 cps
Meter Type Included
No Meter Included
Air Inlet Connection Type
FNPT
Hose Tube Material
Buna-N
Maximum Head Pressure
100 psi
Hazardous Location Class
Not Rated
Maximum Flow Rate
20 gpm
Maximum Head
43 ft
Includes
Ball Valve, Clamp, Dip Tube, Filter Regulator, Fittings, Hose, Pump
Includes Bung Adapter
Yes
Container Cover Type Included
No Cover Included
Standards
CE
Suction Tube Material
Aluminum
Maximum Outlet Pressure
125 psi
Static Protection
Not Groundable
Item
Air Drum Pump
Chemical Compatibility
Antifreeze, Glycol, Oil, Paint, Water
Suction Tube OD
1/2 in
Maximum Air Pressure
100 psi
Pressure Ratio
1:1
Includes Follower Plate
No Follower Plate Included
Air Consumption
30 scfm
Pump Technology
Diaphragm
Includes Discharge Hose
Yes
Suction Tube ID
1/2 in
Minimum Air Pressure
20 psi
Spout Connection Type
Hose Barb
Power Source
Air
Power Source - old
Air

Description

Air Drum Pump, Spout Connection Size 3/4 in, Suction Tube Material Aluminum, Discharge Connection Type NPT, Spout Length 3/4 in, Thermal Protection No, Air Outlet Size 1/2 in, Air Consumption 30 scfm, Hose Length 60 in, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 72.1 dB, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter Yes, Includes Nozzle No, Includes Spout Yes, Adapter Material Stainless Steel
