Shop FINISH THOMPSON

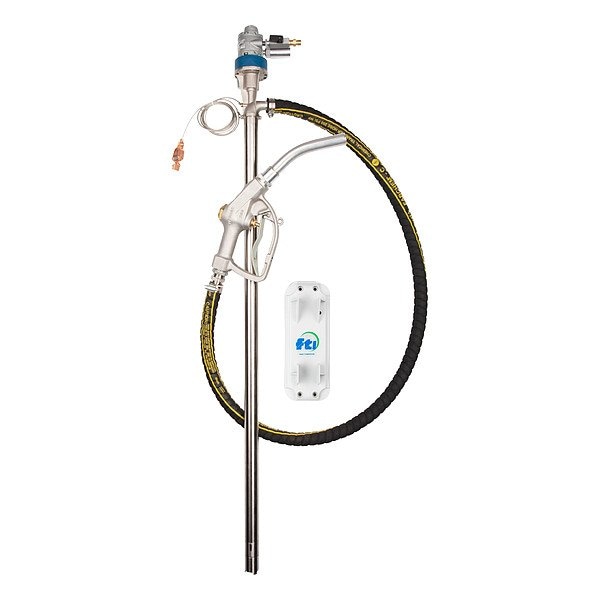

Air Drum Pump Kit, 15 gpm, 7.4 psi

  • Mfr # EFV-40 & S4 Kit

  • Zoro # G421678700

product price:
$
983.99
/ea
Free Shipping & Returns

Key Features

For Container Size
55 gal
Suction Tube Length
40 in
Motor Speed
11,000 RPM
Power Source - TS Only
Air
Maximum Head Pressure
7.4 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
EFV-40 & S4 Kit
Zoro #
G421678700
UPC #
-
Country of Origin
United States
Motor Speed
11,000 RPM
Power Source - TS Only
Air
Maximum Head Pressure
7.4 psi
Maximum Air Pressure
40 psi
Maximum Head
17 ft
Nozzle Operation
Manual
Discharge Tube Outlet OD
1 in
Thermal Protection
No
Housing Material
Polypropylene/PVDF
Maximum Fluid Temperature
160 Degrees F
Pump Technology
Centrifugal
For Container Type
Drum
Meter Type Included
No Meter Included
Item
Air Drum Pump Kit
Includes Discharge Hose
Yes
Discharge Connection Type
Hose Barb
Includes Suction Tube
Yes
Includes Follower Plate
No Follower Plate Included
Includes Bung Adapter
No
Duty Cycle
Continuous
Maximum Outlet Pressure
7.4 psi
Discharge Tube Outlet ID
3/4 in
Minimum Air Pressure
40 psi
Container Cover Type Included
No Cover Included
Air Inlet Connection Type
MNPT
Hazardous Location Class
Not Rated
Hose Cover Material
Polyethylene
Maximum Flow Rate
15 gpm
Includes
Clamp, Hose, Motor, Mount, Pump
Mounting Bracket Included
Wall Mounting Bracket
Noise Level
78 dB
Includes Nozzle
Yes
Wetted Material
Alloy 625/ETFE/FKM/PP/PTFE/PVDF
Spout Material
PVDF
Nozzle Material
PVDF/FKM
Suction Tube OD
1 5/16 in
Includes Spout
Yes
Motor Horsepower
1/2 hp
Spout Connection Type
Hose Barb
Maximum Viscosity
300 cps
Variable Speed
Yes
Chemical Compatibility
Suction Tube Material
Polypropylene/PVDF
Standards
CE
Static Protection
Not Groundable
Air Consumption
27 cfm
Suction Tube ID
2 5/16 in
Hose Tube Material
Polyethylene
Minimum Fluid Temperature
35 Degrees F
Power Source
Air
Power Source - old
Air

Description

Air Drum Pump Kit, Spout Connection Size 3/4 in, Suction Tube Material Polypropylene/PVDF, Discharge Connection Type Hose Barb, Spout Length 1 in, Thermal Protection No, Air Outlet Size 1/4 in, Air Consumption 27 cfm, Hose Length 60 in, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 78 dB, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter No, Includes Nozzle Yes, Includes Spout Yes, Adapter Material Not Applicable
