Shop FINISH THOMPSON

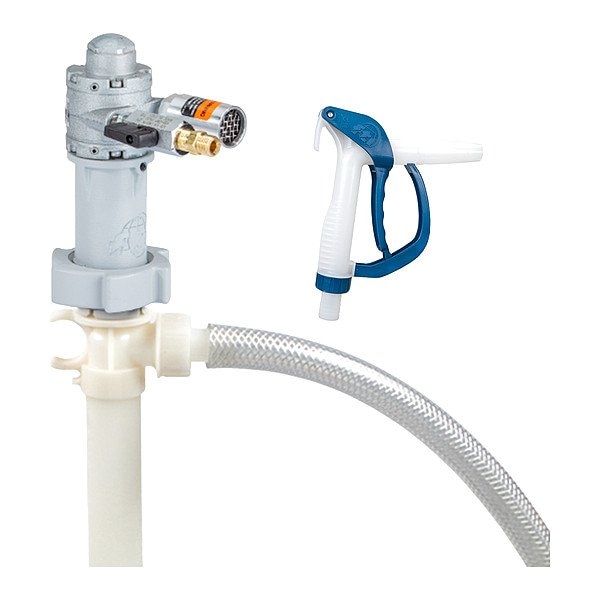

Air Drum Pump Kit, 31 gpm, 13.8 psi

  • Mfr # SFV-48 & M6 Kit

  • Zoro # G621685096

product price:  $1,165.99
/ea
Free Shipping & Returns

Key Features

Includes Follower Plate
No Follower Plate Included
Power Source - TS Only
Air
Hose Cover Material
Polyethylene
Suction Tube Material
Polypropylene/PVDF
Nozzle Material
PVDF/FKM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SFV-48 & M6 Kit
Zoro #
G621685096
UPC #
-
Country of Origin
United States

Dimensions

Hose Inside Diameter
1 in
For Container Size
275 gal
Adapter Connection Diameter
2 in
Air Inlet Connection Size
1/4 in
Spout Length
1 in
Hose Length
72 in
Suction Tube Length
48 in
Spout Connection Size
1 in
Air Outlet Size
1/4 in

Details

Includes Follower Plate
No Follower Plate Included
Power Source - TS Only
Air
Hose Cover Material
Polyethylene
Suction Tube Material
Polypropylene/PVDF
Nozzle Material
PVDF/FKM
Maximum Outlet Pressure
13.8 psi
Maximum Viscosity
1,200 cps
Air Inlet Connection Type
MNPT
Maximum Flow Rate
31 gpm
Maximum Fluid Temperature
140 Degrees F
Motor Speed
9,000 RPM
Mounting Bracket Included
Wall Mounting Bracket
Discharge Tube Outlet OD
1 1/4 in
Minimum Fluid Temperature
35 Degrees F
Duty Cycle
Continuous
Air Consumption
32 cfm
Includes Bung Adapter
Yes
Includes Nozzle
Yes
Motor Horsepower
1/2 hp
Thermal Protection
No
Meter Type Included
No Meter Included
Noise Level
78 dB
Item
Air Drum Pump Kit
Suction Tube OD
1 5/8 in
Pump Technology
Centrifugal
Includes Discharge Hose
Yes
Housing Material
Polypropylene/PVDF
Adapter Material
Polypropylene
Hose Tube Material
Polyethylene
Discharge Tube Outlet ID
1 in
Maximum Air Pressure
80 psi
Maximum Head
32 ft
Includes Suction Tube
Yes
For Container Type
Tote
Includes Spout
Yes
Features
High Viscosity Capable
Maximum Head Pressure
13.8 psi
Wetted Material
Alloy 625/ETFE/FKM/PP/PTFE
Adapter Connection Standard
Smooth Bore
Nozzle Operation
Manual
Minimum Air Pressure
80 psi
Chemical Compatibility
Includes
Clamp, Hose, Motor, Mount, Pump
Standards
CE
Static Protection
Not Groundable
Hazardous Location Class
Not Rated
Variable Speed
Yes
Spout Material
PVDF
Discharge Connection Type
Hose Barb
Suction Tube ID
1 5/8 in
Spout Connection Type
Hose Barb
Container Cover Type Included
No Cover Included
Power Source
Air

Description

Air Drum Pump Kit, Spout Connection Size 1 in, Suction Tube Material Polypropylene/PVDF, Discharge Connection Type Hose Barb, Features High Viscosity Capable, Spout Length 1 in, Thermal Protection No, Air Outlet Size 1/4 in, Air Consumption 32 cfm, Hose Length 72 in, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 78 dB, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter Yes, Includes Nozzle Yes, Includes Spout Yes, Adapter Material Polypropylene
