Shop FINISH THOMPSON

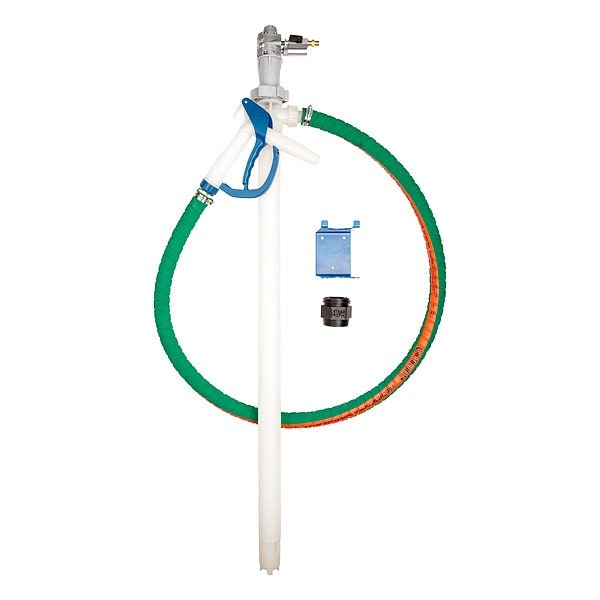

Air Drum Pump Kit, 22 gpm, 16.5 psi

  • Mfr # PFV-48 & M6 Kit

  • Zoro # G221677675

product price:  $1,868.99
/ea
Free Shipping & Returns

Key Features

Standards
CE
Power Source - TS Only
Air
Pump Technology
Centrifugal
Includes Discharge Hose
Yes
For Container Type
Tote
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PFV-48 & M6 Kit
Zoro #
G221677675
UPC #
-
Country of Origin
United States

Dimensions

Spout Connection Size
1 in
Suction Tube Length
48 in
For Container Size
275 gal
Adapter Connection Diameter
2 in
Spout Length
1 in
Hose Length
72 in
Air Outlet Size
1/4 in
Air Inlet Connection Size
1/4 in
Hose Inside Diameter
1 in

Details

Standards
CE
Power Source - TS Only
Air
Pump Technology
Centrifugal
Includes Discharge Hose
Yes
For Container Type
Tote
Hose Cover Material
Polyethylene
Static Protection
Not Groundable
Includes Follower Plate
No Follower Plate Included
Maximum Flow Rate
22 gpm
Meter Type Included
No Meter Included
Minimum Fluid Temperature
32 Degrees F
Hose Tube Material
Polyethylene
Chemical Compatibility
Discharge Connection Type
Hose Barb
Item
Air Drum Pump Kit
Minimum Air Pressure
80 psi
Wetted Material
Alloy 625/FKM/PTFE/PVDF
Variable Speed
Yes
Air Consumption
32 cfm
Suction Tube ID
2 in
Adapter Material
Polypropylene
Includes Bung Adapter
Yes
Maximum Viscosity
330 cps
Motor Horsepower
1/2 hp
Suction Tube Material
PVDF
Hazardous Location Class
Not Rated
Mounting Bracket Included
Wall Mounting Bracket
Thermal Protection
No
Motor Speed
9,000 RPM
Includes Suction Tube
Yes
Maximum Outlet Pressure
16.5 psi
Includes Spout
Yes
Nozzle Material
PVDF/FKM
Duty Cycle
Continuous
Maximum Air Pressure
80 psi
Includes Nozzle
Yes
Nozzle Operation
Manual
Suction Tube OD
2 in
Adapter Connection Standard
Smooth Bore
Maximum Head
38 ft
Spout Connection Type
Hose Barb
Discharge Tube Outlet OD
1 1/4 in
Noise Level
78 dB
Housing Material
PVDF
Spout Material
PVDF
Container Cover Type Included
No Cover Included
Maximum Fluid Temperature
120 Degrees F
Includes
Clamp, Hose, Motor, Mount, Pump
Discharge Tube Outlet ID
1 in
Air Inlet Connection Type
MNPT
Maximum Head Pressure
16.5 psi
Power Source
Air

Description

Air Drum Pump Kit, Spout Connection Size 1 in, Suction Tube Material PVDF, Discharge Connection Type Hose Barb, Spout Length 1 in, Thermal Protection No, Air Outlet Size 1/4 in, Air Consumption 32 cfm, Hose Length 72 in, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 78 dB, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter Yes, Includes Nozzle Yes, Includes Spout Yes, Adapter Material Polypropylene
