  9. Drum Pump, 115VAC, 4/5 HP, 60 Hz

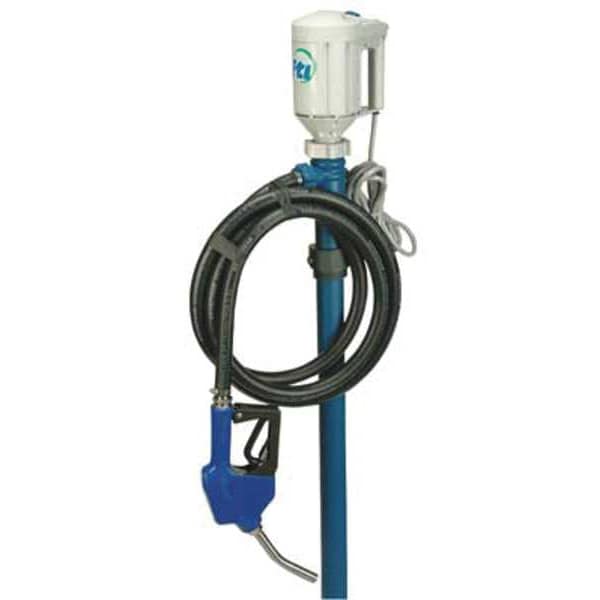

Finish Thompson Drum Pump, 115VAC, 4/5 HP, 60 Hz PFM-48 & M3V DEF Kit - main

Drum Pump, 115VAC, 4/5 HP, 60 Hz

  • Mfr # PFM-48 & M3V DEF Kit

  • Zoro # G2591276

product price: $1,175.99
/ea
Free Shipping & Returns

Key Features

For Use With
Diesel Exhaust Fluid and Other Compatible Chemicals
Includes
3/4 in Hose Barb and Nut, Clamp, Hose, Motor, Pump, S.S Automatic Nozzle, Sealed Adapter
Max. Viscosity
500 cps
Motor Type
Universal AC
Power Source
Electric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PFM-48 & M3V DEF Kit
Zoro #
G2591276
UPC #
-
Country of Origin
United States

Dimensions

Outlet Size
3/4" Barb
Overall Length
60 in
Suction Tube Length
48 in
Inlet Size
2"
Manufacturers Warranty Length
1 yr.
Suction Tube Outlet O.D. Size
2"
Height
48"
Discharge Tube Length
8 ft.
Adapter Dia.
2"
Discharge Tube Outlet ID Size
3/4"
Discharge Tube Outlet OD Size
1-1/8"
Cord Length
12 ft
Bung Connection Dia.
2 in
Hose Inside Dia.
3/4 in
For Container Size
275 gal
Hose Outside Dia.
1 in
Hose Length
96 in
Height Above Container
15 3/8 in

Details

For Use With
Diesel Exhaust Fluid and Other Compatible Chemicals
Item
Electric Operated Drum Pump
Includes
3/4 in Hose Barb and Nut, Clamp, Hose, Motor, Pump, S.S Automatic Nozzle, Sealed Adapter
Max. Viscosity
500 cps
Motor Type
Universal AC
Power Source
Electric
Wetted Materials
316 Stainless Steel and EPDM, FKM, Polypropylene, PTFE, PVDF
Voltage
115VAC
Motor Enclosure
ODP
Metered
No
Max. Flow GPM
40 gpm
Motor RPM
3500 to 10,000
Max. GPM for Water
10
DEF Compatible
Yes
Self-Priming
Yes
Max. Head
10 to 80 ft.
Agency Compliance
CSA, ISO 22241-3 (Purity Standard)
Max. Pressure
35 psi
Discharge Tubing Material
EPDM
Standards
CSA, ISO 22241-3 (Purity Standard)
Application
To Transfer Acids, Bases, Solvents, Water Treatment Chemicals, Cleaners, Plating Solutions, Kidney Dialysis Solutions, DEF/AdBlue (Diesel Exhaust Fluid)
RPM
3500 to 10,000
Adapter Type
Bung
Action Type
Piston
Max. Liquid Temp.
160 Degrees F
Phase
1
Suction Tube Type
Intake Tube
GPM
10
Max. GPM for Oil
26
Hz
60
Adapter Material
PVC
pH Range
6 to 10
Type
Motor and Tube
Seal Material
Fluoroelastomer
HP
4/5
Pump Body Material
Polypropylene
Housing Material
Polypropylene
Max. Temp.
160 Degrees F
Includes Bung Adapter
Yes
Discharge Connection Type
Hose Barb
Discharge Tube Outlet ID
3/4 in
Full Load Amps
5.6 A
For Container Type
Tote
Min. Fluid Temp.
35 Degrees F
Pump Connection ID
2 in
Noise Level
79 db
Suction Tube Material
Polypropylene
Series
PF
Housing Material - Pumps
Polypropylene
Includes Discharge Hose
Yes
Max. Flow Rate
10 gpm
Duty Cycle
Continuous
Motor HP
4/5 hp
Hose Tube Material
EPDM
Max. Head - Pumps
80 ft
Suction Tube OD
2 in
Pump Connection OD
2 in
Thermal Protection
No
Includes Nozzle
Yes
Frequency (Hz)
60 Hz
Nozzle Operation
Automatic
Plug Type
NEMA 5-15
Runs Dry
No
Discharge Tube Outlet OD
1 in
Max. Fluid Temp.
160 Degrees F
Variable Speed
Yes
Max. Head Pressure
35 psi
Number of Phases
1
Food Grade
No
Nozzle Material
FKM, Polypropylene, Stainless Steel
Not Recommended Chemicals
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, DEF, Ethylene Glycol, Formic Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Water
Compatible Chemicals
Includes Suction Tube
Yes
Pump Connection Type
Smooth Bore
Suction Tube ID
2 in
Diesel Exhaust Fluid Compatible
Yes
Explosion Proof
No
Adapter Connection Type
Buttress
Max. Outlet Pressure
35 psi
Rated Voltage
115V AC
Gear Lube
NT
Grease
NT

Description

Electric Drum Pump, Hose Inside Dia. 3/4 in, Max. Head Pressure 35 psi, Max. Outlet Pressure 35 psi, For Use With Diesel Exhaust Fluid and Other Compatible Chemicals, Rated Voltage 115 V AC, Plug Type NEMA 5-15, Pump Connection ID 2 in, Suction Tube OD 2 in, Hose Length 8 ft, Suction Tube Length 48 in, Cord Length 12 ft, Includes Bung Adapter Yes, Runs Dry No, Nozzle Operation Manual, Thermal Protection No, Frequency (Hz) 60 Hz, Power Source Corded Electric, Variable Speed Yes
