Finish Thompson

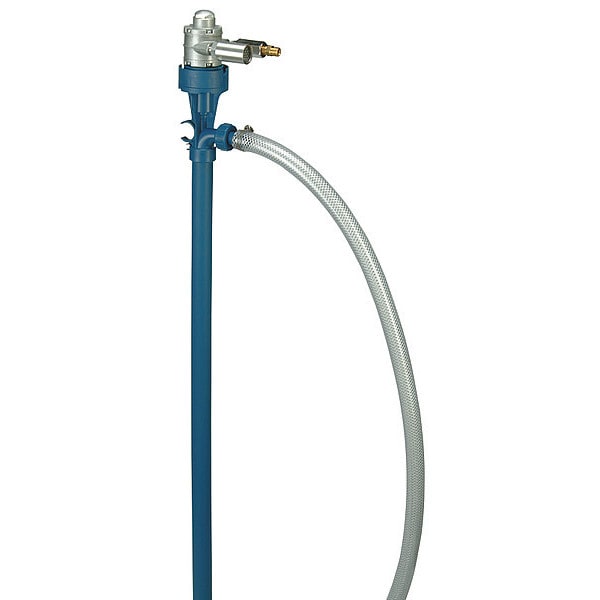

Drum Pump, 1/2 HP, 3/4 In Outlet, 47In OAL

product price: $657.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Suction Tube Length 40 in
  • For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, Ethylene Glycol, Formic Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Water
  • For Container Size 55 gal
  • Max. Flow Rate 15 gpm
  • Max. Viscosity 300 cps
See all product information

Product Information

Dimensions

Suction Tube Length 40 in
For Container Size 55 gal
Air Inlet Size 1/4 in MNPT
Outlet Size 3/4" Barb
Inlet Size 1-1/4"
Manufacturers Warranty Length 1 yr.
Height 40"
Discharge Tube Outlet OD Size 1"
Discharge Tube Outlet ID Size 3/4"
Hose Inside Dia. 3/4 in
Hose Length 60 in
Overall Length 46 7/8 in
Height Above Container 6 7/8 in
Air Outlet Size 1/4 in
Hose Outside Dia. 1 in

Details

For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, Ethylene Glycol, Formic Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Water
Max. Flow Rate 15 gpm
Max. Viscosity 300 cps
Wetted Materials 316 Stainless Steel, FKM, Polypropylene, PTFE, PVC
Suction Tube ID 1 1/4 in
Food Grade No
Discharge Tube Outlet ID 3/4 in
Max. Fluid Temp. 150 Degrees F
Includes Clamp, Hose, Motor, Pump
Suction Tube OD 1 1/4 in
Metered No
Discharge Tube Outlet OD 1 in
Includes Suction Tube Yes
Runs Dry No
Diesel Exhaust Fluid Compatible No
Max. GPM for Water 15
For Use With Chemicals
Max. Air Inlet (PSI) 7
Discharge Tubing Material PVC
Max. GPM for Oil 5
GPM 5-15
Max. Liquid Temp. 150 Degrees F
Adapter Type Optional 2" IPS Thread 107426
Self-Priming Yes
Housing Material Polypropylene
Max. Flow GPM 15 gpm
Motor Type Air
Item Air Operated Drum Pump
Max. Head 5 to 17 ft.
Adapter Material Polypropylene
Motor RPM 11,000 RPM
Seal Material FKM
Suction Tube Material Polypropylene
Thermal Protection No
Max. Air Pressure 40 psi
Min. Fluid Temp. 0 Degrees F
Includes Bung Adapter No
Max. Oil Flow 5 gpm
Compatible Chemicals Acetic Acid 20%, Acetic Acid 80%, Ammonium Hydroxide, Antifreeze (Coolant), Calcium Chloride, Citric Acid 50%, Deionized Water, Ethylene Glycol, Formic Acid, Fresh Water, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%)
Pump Connection ID 1 1/4 in
Includes Nozzle No
Includes Discharge Hose Yes
Power Source Air
Duty Cycle Continuous
Min. Air Pressure 40 psi
Max. Head Pressure 7.4 psi
Pump Connection OD 1 1/4 in
Noise Level 78 db
Variable Speed Yes
Not Recommended Chemicals Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint Thinner, Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Motor HP 1/2 hp
Hose Tube Material PVC
Housing Material - Pumps Polypropylene
Series EF
Discharge Connection Type Hose Barb
Includes Spout No
For Container Type Drum
Grease NT
Max. Head - Pumps 17 ft
Gear Lube NT
Explosion Proof Yes

Description

Air Operated Drum Pump, Max. Air Pressure 40 psi, Suction Tube Material Polypropylene, Self-Priming Yes, Overall Length 46 7/8 in, Explosion Proof Yes, Discharge Connection Type Hose Barb, Food Grade No, Thermal Protection No, Air Outlet Size 1/4 in, Hose Length 60 in, Motor HP 1/2 hp, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 78 db, Max. Viscosity 300 cps, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter No, Includes Nozzle No, Includes Spout No

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
