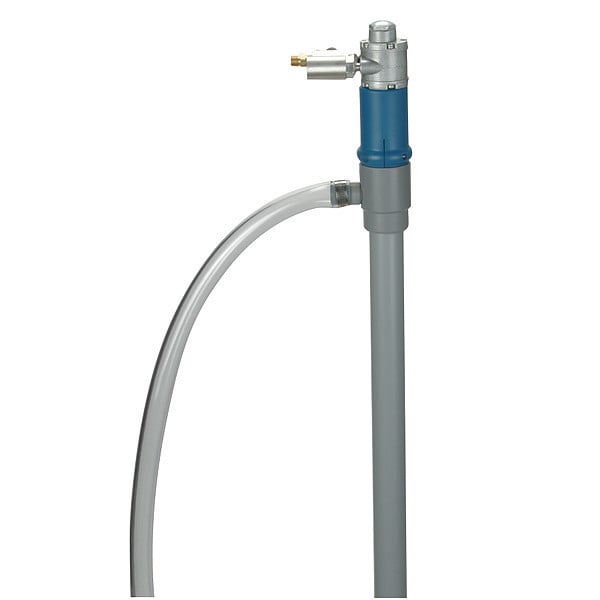

Drum Pump, 1/2HP, Suction Tube 40 L, 16 GPM

Finish Thompson Drum Pump, 1/2HP, Suction Tube 40 L, 16 GPM DTTC014
Tap to zoom
Hover or click to zoom
$983.00
  • Suction Tube Length: 40 in
  • For Media Type: Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Calcium Chloride, Chromic Acid, Citric Acid, Ethylene Glycol, Formic Acid, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Sulfuric Acid, Water
  • For Container Size: 55 gal
See full product details
This item ships free.

Total: $983.00

Finish Thompson #DTTC014 Specifications

  • Suction Tube Length: 40 in
  • For Media Type: Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Calcium Chloride, Chromic Acid, Citric Acid, Ethylene Glycol, Formic Acid, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Sulfuric Acid, Water
  • For Container Size: 55 gal
  • Max. Flow Rate: 16 gpm
  • Max. Viscosity: 1,500 cps
  • Air Inlet Size: 1/4 in MNPT
  • Wetted Materials: Alloy 625, CPVC, PTFE
  • Suction Tube ID: 1 5/8 in
  • Food Grade: No
  • Max. Fluid Temp.: 150 Degrees F
  • Discharge Tube Outlet ID: 1 in
  • Includes: Hose and Clamp, Motor
  • Suction Tube OD: 1 5/8 in
  • Metered: No
  • Discharge Tube Outlet OD: 1 5/16 in
  • Includes Suction Tube: Yes
  • Diesel Exhaust Fluid Compatible: No
  • Runs Dry: No
  • Agency Compliance: NO
  • Outlet Size: 1" barb
  • For Use With: Chemicals
  • Housing Material: CPVC
  • Self-Priming: Yes
  • Height: 40"
  • Motor Type: Air
  • Item: Air Operated Drum Pump
  • Max. GPM for Oil: 11
  • Discharge Tube Outlet ID Size: 1"
  • Max. GPM for Water: 16
  • GPM: 16
  • Discharge Tubing Material: PVC
  • Max. Liquid Temp.: 150 Degrees F
  • Discharge Tube Outlet OD Size: 1-5/16"
  • Max. Head: 30 ft.
  • Motor Enclosure: Air
  • Adapter Material: Polypropylene
  • Inlet Size: 1.6"
  • Type: -
  • Max. Air Inlet (PSI): 13
  • Motor RPM: 9,000 RPM
  • Hose Length: 60 in
  • Thermal Protection: No
  • Seal Material: PTFE
  • Hose Inside Dia.: 1 in
  • Suction Tube Material: CPVC
  • Hose Tube Material: PVC
  • Series: TT
  • Hose Outside Dia.: 1 5/16 in
  • Housing Material - Pumps: CPVC
  • Duty Cycle: Continuous
  • Max. Head Pressure: 13 psi
  • Min. Air Pressure: 80 psi
  • Includes Discharge Hose: Yes
  • Discharge Connection Type: Hose Barb
  • For Container Type: Drum
  • Pump Connection OD: 1 5/8 in
  • Overall Length: 48 1/8 in
  • Includes Spout: No
  • Includes Bung Adapter: No
  • Pump Connection ID: 1 5/8 in
  • Includes Nozzle: No
  • Not Recommended Chemicals: Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Cyclohexane, DEF, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (Concentrated Solution), Paint Thinner, Stoddard Solvent (Mineral Spirits), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
  • Height Above Container: 8 1/16 in
  • Max. Air Pressure: 80 psi
  • Max. Oil Flow: 11 gpm
  • Compatible Chemicals: Acetic Acid 20%, Acetic Acid 80%, Ammonium Hydroxide, Antifreeze (Coolant), Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Deionized Water, Ethylene Glycol, Formic Acid, Fresh Water, Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (to 10%)
  • Min. Fluid Temp.: 34 Degrees F
  • Variable Speed: Yes
  • Power Source: Air
  • Air Outlet Size: 1/4 in
  • Motor HP: 1/2 hp
  • Noise Level: 78 db
  • Grease: NT
  • Max. Head - Pumps: 30 ft
  • Explosion Proof: Yes
  • Gear Lube: NT
  • Country of Origin (subject to change): United States

Description

Air Operated Drum Pump, Pump Package Type Basic Pump with Discharge Hose, Air Inlet Size 1/4 in MNPT, Air Outlet Size 1/4 in, For Container Size 55 gal, For Container Type Drum, Max. Flow Rate 16 gpm, Max. Oil Flow 11 gpm, Max. Viscosity 1,500 cps, Discharge Connection Type Hose Barb, Discharge Tube Outlet ID 1 in, Discharge Tube Outlet OD 1 5/16 in, Min. Air Pressure 80 psi, Max. Air Pressure 80 psi, Max. Head - Pumps 30 ft, Max. Head Pressure 13 psi, Min. Fluid Temp. 34 Degrees F

Restrictions and Compliance

  • This product is not intended for potable water applications (human consumption – drinking and cooking) and has not been designed to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable water applications. This item is for use, only, in non-potable (non-human consumption) water applications.
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
