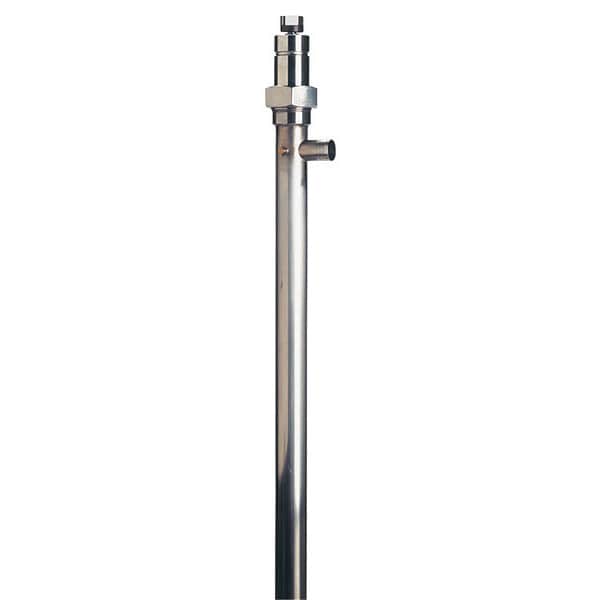

Drum Pump, Inlet 1.5 In, Length 44-3/16 In

Mfr # STTS-40
Zoro # G6790472

1,548.99

Free Shipping & Returns

Key Features

Suction Tube Length

44 3/16 in

For Media Type

For Use With

For Container Size

30 gal, 55 gal

Max. Flow Rate

17 gpm

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: STTS-40
Zoro #: G6790472
UPC #: -
Country of Origin: United States

Dimensions

Suction Tube Length: 44 3/16 in
For Container Size: 30 gal, 55 gal
Overall Length: 44 3/16 in
Manufacturers Warranty Length: 1 yr.
Discharge Tube Outlet ID Size: 1"
Inlet Size: 1 1/2 in
Outlet Size: 1 in Hose Barb
Suction Tube Length - Maximum: 44 3/16 in
Suction Tube Length - Minimum: 40 in
Wire Rope Length: 44 3/16 in
Length: 44 3/16 in

Details

Item: Drum Pump Tube
For Media Type: Acetic Acid,Ammonium Hydroxide,Antifreeze,Biodiesel,Calcium Chloride,Chromic Acid,Citric Acid,Cyclohexane,DEF,Diesel Fuel,Ethanol,Ethyl Acetate,Ethylene Glycol,Formaldehyde,Formic Acid,Gasoline,Glycerin,Heptane,Hexane,Hydraulic Oil,Hydrazine,Isopropanol,Kerosene,Ketones,Lacquer Thinners,Methanol,Nitric Acid,Phosphoric Acid (40% Solution),Potassium Hydroxide (50%),Sodium Bicarbonate,Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide,Stoddard Solvent,Toluene,Trichlorethylene,Water,Xylene
For Use With: TT
Max. Flow Rate: 17 gpm
Max. Viscosity: 2000 CPS
Wetted Materials: 316 Stainless Steel, PTFE
Suction Tube ID: 1 1/2 in
Discharge Tube Outlet ID: 1 in
Max. Fluid Temp.: 150 Degrees F
Food Grade: Yes
Suction Tube OD: 1 3/16 in
Discharge Tube Outlet OD: 1 7/16 in
Runs Dry: No
Diesel Exhaust Fluid Compatible: Yes
Max. Head: 70 ft
GPM: 2-17
Max. Liquid Temp.: 150 Degrees F
Adapter Material: 316 Stainless Steel
Max. Pressure: 30 psi
Seal Material: PTFE
Agency Compliance: FDA Compliant
Suction Tube Material: 316 Stainless Steel
Self-Priming: Yes
Min. Fluid Temp.: -10 Degrees F
Discharge Connection Type: Hose Barb
Max. Head Pressure: 30.3 psi
Series: TT
Compatible Chemicals: Acetic Acid (Glacial),Acetic Acid 20%,Acetic Acid 80%,Acetone,Ammonia (Liquids),Ammonium Hydroxide,Anhydrous Ammonia,Antifreeze (Coolant),Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Citric Acid 50%,Cyclohexane,DEF,Deionized Water,Diesel Fuel,E85,Ethyl (Ethanol),Ethyl Acetate,Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Formic Acid,Fresh Water,Gasoline,Glycerin,Heptane,Hexane,Hydraulic Oils (Petroleum),Hydraulic Oils (Synthetic),Hydrazine,Isopropyl (Isopropanol),Kerosene,Lacquer Thinners,Methyl (Methanol),Methyl Ethyl Ketone (MEK),Naphtha,Nitric Acid (10% Solution),Nitric Acid (20% Solution),Nitric Acid (50% Solution),Nitric Acid (Concentrated Solution),Paint Thinner,Phosphoric Acid (40% Solution),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide/Caustic Soda (20%),Sodium Hydroxide/Caustic Soda (50%),Sodium Hydroxide/Caustic Soda (80%),Stoddard Solvent (Mineral Spirits),Toluene,Trichlorethylene (50%),Turpentine,Windshield Washer Fluid,Xylene
Not Recommended Chemicals: Bleach, Hydrochloric Acid 100%, Hydrochloric Acid 20%, Hydrochloric Acid 37%, Hydrofluoric Acid 100%, Hydrofluoric Acid 20%, Hydrofluoric Acid 75%, Sulfuric Acid 10% to 75%, Sulfuric Acid 75% to 100%, Sulfuric Acid up to 10%
For Container Type: Drum, Pail
Grease: NT
Gear Lube: NT
Maximum Head Pressure: 30.3 psi
Chemical Compatibility: Acetic Acid 20%,Acetic Acid 80%,Acetone,Ammonia Liquid,Ammonium Hydroxide,Anhydrous Ammonia,Antifreeze Coolant,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Citric Acid 50%,Concentrated Nitric Acid,Cyclohexane,DEF,Deionized Water,Diesel Fuel,E85,Ethanol,Ethyl Acetate,Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Formic Acid,Fresh Water,Gasoline,Glacial Acetic Acid,Glycerin,Heptane,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Isopropanol,Kerosene,Lacquer Thinners,Methanol,Methyl Ethyl Ketone,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint Thinner,Phosphoric Acid 40% Solution,Potassium Hydroxide 50%,Salt Water,Sodium Bicarbonate 10%,Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Maximum Fluid Temperature: 150 Degrees F
Wetted Material: 316 Stainless Steel/PTFE
Maximum Head: 70 ft
Minimum Fluid Temperature: -10 Degrees F
Maximum Viscosity: 2,000 cps
Standards: FDA Compliant
Housing Material: 316 Stainless Steel
Maximum Pressure: 30 psi
Suction Tube Type: Fixed
Maximum Flow Rate: 17 gpm
Compatible Manufacturer Part Number: DTTU007
Compatible Series: TT

Description

Drum Pump Tube, Suction Tube Length 44 3/16 in, Pump Package Type Drum Pump Tube, Suction Tube Material 316 Stainless Steel, Suction Tube ID 1 1/2 in, Suction Tube OD 1 3/16 in, Discharge Tube Outlet ID 1 in, Discharge Tube Outlet OD 1 7/16 in, Discharge Connection Type Hose Barb, Overall Length 44 3/16 in, For Container Size 30 gal, 55 gal, For Container Type Drum, Pail, Max. Flow Rate 17 gpm, Max. Viscosity 2000 CPS, Min. Fluid Temp. -10 Degrees F, Max. Fluid Temp. 150 Degrees F
