Finish Thompson

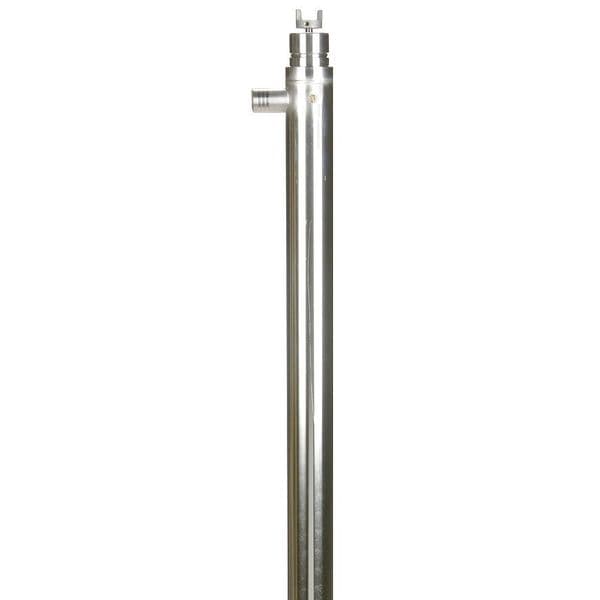

Drum Pump Tube, Suction Tube 40 L

product price: $603.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • For Use With PF
  • Wetted Materials Stainless Steel, PTFE, Tefzel, Viton
  • Max. Viscosity 2000 CPS
  • Seal Material FKM
  • Suction Tube Type Constant
See all product information

Product Information

Dimensions

Overall Length 42 in
Discharge Tube Outlet ID Size 1"
Outlet Size 1 in Barb
Suction Tube Length 40 in
Discharge Tube Outlet OD Size 1-7/16"
Height 40"
For Container Size 30 gal, 55 gal

Details

Item Drum Pump Tube
For Use With PF
Wetted Materials Stainless Steel, PTFE, Tefzel, Viton
Max. Viscosity 2000 CPS
Seal Material FKM
Suction Tube Type Constant
Self-Priming Yes
Adapter Material Polypropylene
Suction Tube Material 316 Stainless Steel
Discharge Connection Type Hose Barb
Diesel Exhaust Fluid Compatible No
Suction Tube OD 1 3/16 in
Suction Tube ID 2 in
Discharge Tube Outlet OD 1 7/16 in
For Media Type Acetic Acid, Chromic Acid, Citric Acid, Formic Acid, Nitric Acid, Phosphoric Acid (40% Solution), Ketones, Ethanol, Isopropanol, Methanol, Antifreeze, Ethylene Glycol, Glycerin, Calcium Chloride, Sodium Bicarbonate, Cyclohexane, Gasoline, Heptane, Hexane, Kerosene, Stoddard Solvent, Diesel Fuel, Hydraulic Oil, Ethyl Acetate, Biodiesel, Formaldehyde, Ammonium Hydroxide, Hydrazine, Sodium Hydroxide, Potassium Hydroxide (50%), Lacquer Thinners, Toluene, Xylene, Water, Sodium Bisulfate, Sodium Bisulfite, Trichlorethylene, E85
For Container Type Drum, Pail
Max. Flow Rate 40 gpm
Max. Head 80 ft
Max. Fluid Temp. 220 Degrees F
Runs Dry No
Series PF
Compatible Chemicals Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Chromic Acid 5%, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 50%, Citric Acid 50%, Formic Acid, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Acetone, Methyl Ethyl Ketone (MEK), Ethyl (Ethanol), Isopropyl (Isopropanol), Methyl (Methanol), Antifreeze (Coolant), Ethylene Glycol, Glycerin, Calcium Chloride, Sodium Bicarbonate (10%), Cyclohexane, Gasoline, Heptane, Hexane, Kerosene, Stoddard Solvent (Mineral Spirits), Diesel Fuel, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Ethyl Acetate, Biodiesel, Formaldehyde 40%, Formaldehyde, Ammonium Hydroxide, Hydrazine, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Potassium Hydroxide (50%), Lacquer Thinners, Toluene, Xylene, Fresh Water, Salt Water, Deionized Water, Sodium Bisulfate, Sodium Bisulfite, Trichlorethylene (50%), E85, Anhydrous Ammonia, Ammonia (Liquids), Automatic Transmission Fluid, Brake Fluid, Naphtha, Paint Thinner, Turpentine, Windshield Washer Fluid
Max. Head Pressure 34.6 psi
Food Grade No
Not Recommended Chemicals Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Sulfuric Acid (to 10%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sodium Hypochlorite/Bleach (to 20%), DEF
Min. Fluid Temp. -20 Degrees F
Discharge Tube Outlet ID 1 in
Grease NT
Gear Lube NT

Description

Drum Pump Tube, Suction Tube Length 40 in, Pump Package Type Drum Pump Tube, Suction Tube Material 316 Stainless Steel, Suction Tube ID 2 in, Suction Tube OD 1 3/16 in, Discharge Tube Outlet ID 1 in, Discharge Tube Outlet OD 1 7/16 in, Discharge Connection Type Hose Barb, Overall Length 42 in, For Container Size 30 gal, 55 gal, For Container Type Drum, Pail, Max. Flow Rate 40 gpm, Max. Viscosity 2000 CPS, Min. Fluid Temp. -20 Degrees F, Max. Fluid Temp. 220 Degrees F, Max. Head 80 ft
