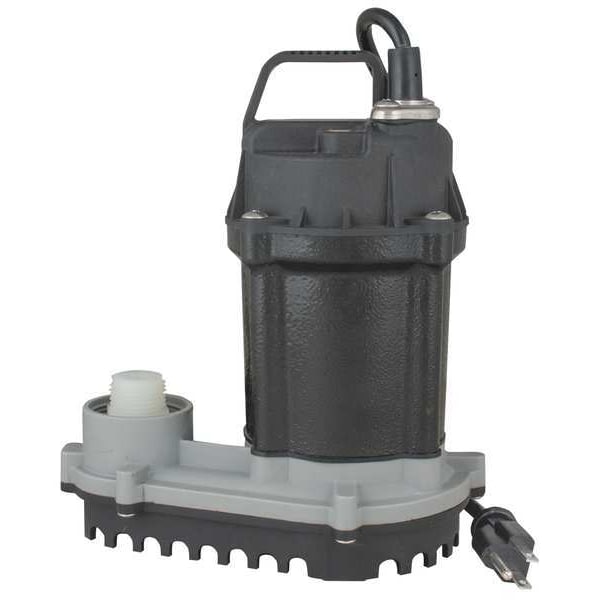

1/6 HP 1-1/2" F Submersible Sump Pump 115 Sensor

Mfr # ECP062S
Zoro # G2452305

390.60

Free Shipping & Returns

Key Features

Cord Length

10 ft

Discharge NPT

1-1/2" F

Housing Material

Cast iron

1/6

60 Hz

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: ECP062S
Zoro #: G2452305
UPC #: 054757096465
Country of Origin: Taiwan, Province of China

Dimensions

Cord Length: 10 ft
Max. Dia. Solids: 3/8"
Cord Length - Pumps: 10 ft.
Height: 11"
Min. Sump Pit Dia.: 12 in
Diameter: 8"
Max. Diameter Solids: 3/8 in
Manufacturers Warranty Length: 1 yr
Body Dia.: 8 in
Overall Height: 11 in
Discharge Dia.: 1 1/2 in
Body Diameter: 8 in
Sump Pit Diameter - Minimum: 12 in
Width at Widest Point: 8 in
Solids Diameter - Maximum: 3/8 in
Discharge Diameter: 1 1/2 in

Details

Discharge NPT: 1-1/2" F
Housing Material: Cast iron
HP: 1/6
Hz: 60 Hz
Impeller Material: Thermoplastic
Includes: Garden Hose Adapter
Max. Head: 23 ft
Max. Temp.: 104 Degrees F
Motor RPM: 3450
Motor Type: Permanent Split Capacitor
Shaft Seal: Mechanical
Voltage: 115
Phase: Single
Thermal Protection: Auto
Alarm: No
Amps - Pumps: 4.00
Item - Sump Pumps: Submersible Evaporative Cooling Pump
Alarm Included: No
Bearing Type: Ball
NEC Cord Designation: SJTOOW
Impeller Material - Pumps: Thermoplastic
Switch Type: Sensor
Pump Body Material: Cast Iron
Max. Head - Pumps: 23 ft.
Duty: Continuous
Agency Compliance: CSA
Gauge/Conductor: 18/3
Features: Impact Resistant, Automatic
GPM of Water @ 20 Ft. of Head: 11
Max. Liquid Temp.: 104 Degrees F
Mechanical Seal: SiC/CRB
Amps: 4 A
Voltage - Pumps: 120VAC
Item: Submersible Sump Pump
GPM of Water @ 10 Ft. of Head: 30
GPM of Water @ 15 Ft. of Head: 22
Base Material: Plastic
Switch Type - Pumps: Sensor
On Point: 2 in
Application: Dewatering
Off Point: 1/8 in
Discharge Standard: NPT
Flow Rate @ 5 Ft. of Head: 37 gpm
RPM: 3,450 RPM
Body Material: Cast Iron
Flow Rate @ 20 Ft. of Head: 11 gpm
Flow Rate @ 15 Ft. of Head: 22 gpm
Rated Voltage: 120V AC
Switch Electrical Connection: Integral
Discharge: 1 1/2 in FNPT
Duty Cycle: Continuous
Switch Actuation: Sensor
Discharge Gender: Female
Flow Rate @ 10 Ft. of Head: 30 gpm
Hazardous Location Class: Not Rated
Controls Included: No Controls Included
Power Source: Corded Electric
Operation: Automatic
Flow Rate @ 10 ft of Head: 30 gpm
Installation: Floor Standing
Includes Alarm: No Alarm Included
Horsepower: 1/6 hp
Rotation Speed - Maximum: 3,450 RPM
For Industry: Residential
Liquid Temperature - Maximum: 104 Degrees F
Impeller Design: Vortex
Current: 4 A
For Media Type: Clear Water
Frequency: 60 Hz
Standards: CSA
Requires Control Panel: No Control Panel Required
Motor Housing Material: Plastic
Feet of Head - Maximum: 23 ft
Shaft Seal Material: Ceramic
Volute Material: Plastic
Shaft Seal Type: Single Mechanical
Power Source - TS Only: Corded Electric
Power Source - old: Corded Electric

Description

Submersible Sump Pump, HP 1/6, Rated Voltage 120V AC, Hz 60 Hz, Amps 4 A, Switch Actuation Sensor, Switch Electrical Connection Integral, Off Point 1/8 in, On Point 2 in, Body Material Cast Iron, Impeller Material Thermoplastic, Flow Rate @ 5 Ft. of Head 37 gpm, Flow Rate @ 10 Ft. of Head 30 gpm, Flow Rate @ 15 Ft. of Head 22 gpm, Flow Rate @ 20 Ft. of Head 11 gpm, Max. Head 23 ft, Min. Sump Pit Dia. 12 in, Body Dia. 8 in, Overall Height 11 in, Discharge 1 1/2 in FNPT
