  5. Booster Pump, 1 1/2 hp, 230V AC, 1 Phase, 1-1/2 in NPT Inlet Size, 1 Stage, 43 psi Max Pressure

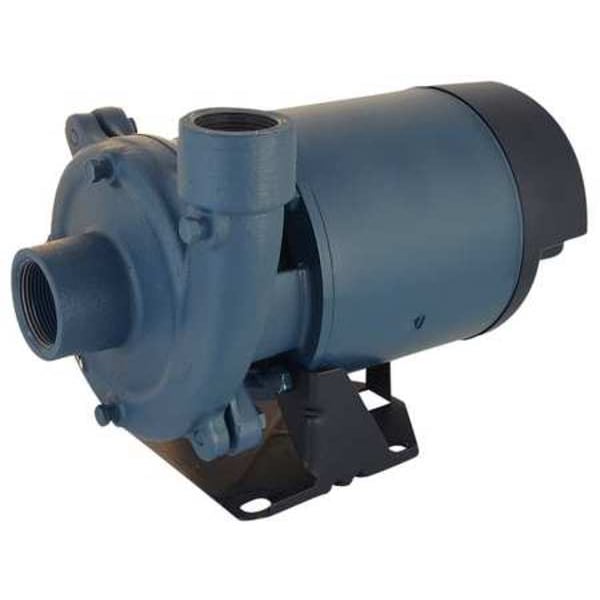

Flint & Walling Booster Pump, 1 1/2 hp, 230V AC, 1 Phase, 1-1/2 in NPT Inlet Size, 1 Stage, 43 psi Max Pressure CJ103151 - main
Shop FLINT & WALLING

Booster Pump, 1 1/2 hp, 230V AC, 1 Phase, 1-1/2 in NPT Inlet Size, 1 Stage, 43 psi Max Pressure

  • Mfr # CJ103151

  • Zoro # G7525621

product price:  $1,038.60
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Booster Pump
HP - Pumps
1 1/2 hp
Voltage - Pumps
230V AC
Phase - Pumps
1
Inlet Size - Pumps
1-1/2 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CJ103151
Zoro #
G7525621
UPC #
054757003326
Country of Origin
United States

Dimensions

Inlet Size - Pumps
1-1/2 in NPT
Outlet Size - Pumps
1-1/4 in NPT
Max. Dia. Solids
clear water
Width
8 1/4 in
Height
3 5/16 in
Manufacturers Warranty Length
1 yr
Length
15 1/8 in
Overall Length
15.13 in
Overall Width
8.25 in
Overall Height
9.5 in
Compatible Discharge Pipe Size
1 1/4 in
Intake Size
1 1/2 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
1 1/2 in
Solid Diameter (Maximum)
0 in
Inlet Diameter
1 1/2 in
Discharge Diameter
1 1/4 in
Solids Diameter - Maximum
0 in

Details

Item
Booster Pump
Booster Pump Type
Booster Pump
HP - Pumps
1 1/2 hp
Voltage - Pumps
230V AC
Phase - Pumps
1
Number of Stages - Pumps
1
Max. Pressure - Pumps
43 psi
Housing Material - Pumps
Cast Iron
Motor Enclosure - Pumps
Open Dripproof
Wetted Materials
Brass,CI,416 SS,Buna N,Carbon,Silicon Carbide,BR
Inlet
1-1/2" (F)NPT
Housing Material
Cast iron
Bearing Type
Ball
Agency Compliance
CSA, CUS, UL Listed
Voltage
115/230
Impeller Material
Brass
Motor Type
ODP
Hz
60
Phase
Single
Max. Case Pressure
100 psi
GPM @ 25 PSI
80
GPM @ 20 PSI
88
Stages
1
Includes
1/4 in Drain Plug
HP
1-1/2
Seal Material
Buna-N/Carbon/Silicone Carbide/Stainless Steel
Motor RPM
3450
Impeller Type
Closed
Amps
10.2 A
Duty
Continuous
GPM @ 40 PSI
27
Motor Ambient Temp. Rating
65 Degrees C/149 Degrees F
Max. Pressure
43 psi
Frame
NEMA 56J
Inlet (In.)
1-1/2 FNPT
Motor Enclosure
Open Dripproof (ODP)
Outlet
1-1/4" (F)NPT
For Use With
Nonflammable Liquids Compatible with Pump Component Materials
GPM @ 30 PSI
68
GPM @ 35 PSI
47
Standards
CSAus Listed
Application
Boosting, Circulating
Flow Rate @ 10 psi
96 gpm
Maximum Media Temperature
200 Degrees F
Suction Lift (Maximum)
25 ft
For Use With Potable Systems
No
Priming
Manual
Motor Ambient Temperature (Maximum)
149 Degrees F
Maximum RPM
3,450 RPM
Minimum Media Temperature
34 Degrees F
Mounting Orientation
Horizontal
Minimum Flow Rate
1.5 gpm
Maximum Flow Rate
80 gpm
Flow Rate @ 20 psi
88 gpm
Impeller Design
Closed
Pressure Boost (Maximum)
45 psi
Intake Type
NPT
Maximum Feet of Head
99 ft of head
Shut Off Pressure (Maximum)
43 psi
Motor Frame Designation
56J
Number of Stages
1
Discharge Type
NPT
Case Pressure (Maximum)
100 psi
Flow Rate @ 30 psi
68 gpm
Frequency
60 Hz
Series Family
103
Horsepower
1 1/2 hp
Nameplate Voltage
230V AC
Duty Cycle
Continuous
Pumping Application
City Water Mains, Private Water Systems
Series
CJ
Wetted Material
416 Stainless Steel, Brass, Bromine, Buna-N, Cast Iron, Silicon Carbide
Compatible with Media Type
Clear Water Only
Feet of Head (Minimum)
23 ft of head
Flow Rate @ 40 psi
27 gpm
Pump Housing Material
Cast Iron
Discharge Standard
NPT
Inlet Gender
Female
Motor Ambient Temperature - Maximum
149 Degrees F
Case Pressure - Maximum
100 psi
Motor Ambient Temperature - Minimum
32 Degrees F
Discharge Gender
Female
Feet of Head - Minimum
23 ft
Suction Lift - Maximum
25 ft
Installation
Floor Standing
Media Temperature - Minimum
34 Degrees F
Media Temperature - Maximum
200 Degrees F
Electrical Connection Type
Hardwired
NSF Certifications for Food and Drinking Water
NSF 372
Pump Casing Material
Cast Iron
Motor Design
Capacitor-Start
Pressure Boost - Maximum
45 psi
Flow Rate - Minimum
2 gpm
Full Load Current
10.2 A
Power Source
Corded Electric
Pump Technology
Centrifugal
Motor Enclosure Design
Open Drip Proof
Flow Rate - Maximum
80 gpm
Revolutions Per Minute - Maximum
3,450 RPM
For Media Type
Clear Water
Shut Off Pressure - Maximum
43 psi
Inlet Standard
NPT
Feet of Head - Maximum
99 ft
Best Efficiency Flow
70 gpm
Best Efficiency Head
62 ft
Thermal Protection
Auto

Description

Booster Pump, Phase Single, Pump Housing Material Cast Iron, Motor Enclosure Open Dripproof, Horsepower 1 1/2 hp, Nameplate Voltage 230V AC, Flow Rate @ 10 psi 96 gpm, Flow Rate @ 20 psi 88 gpm, Flow Rate @ 30 psi 68 gpm, Flow Rate @ 40 psi 27 gpm, Shut Off Pressure (Maximum) 43 psi, Compatible Intake Pipe Size 1 1/2 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type NPT, Mounting Orientation Horizontal, For Use With Potable Systems No, Amps 10.2 A, Case Pressure (Maximum) 100 psi
