- MFR #
- 5UXF7
- Zoro #
- G1609912
- UPC #
- 190735353066
- Country of Origin
- India

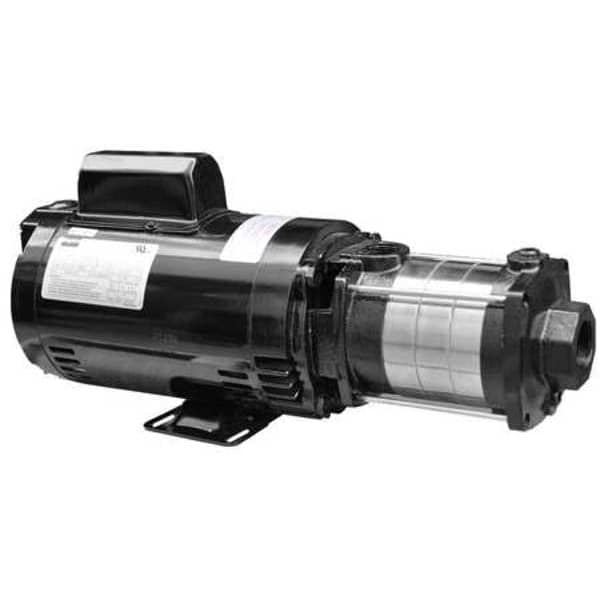

- Booster Pump Type
- Multi-Stage Booster Pump
- Item
- Booster Pump
- HP - Pumps
- 1 1/2 hp
- Voltage - Pumps
- 120/240V AC
- Phase - Pumps
- 1
- Number of Stages - Pumps
- 4
- Max. Pressure - Pumps
- 81 psi
- Housing Material - Pumps
- Cast Iron
- Motor Enclosure - Pumps
- Open Dripproof
- Stages
- 4
- Impeller Material
- Cast Iron
- Motor Enclosure
- Open Dripproof (ODP)
- Outlet
- 1" FNPT
- Suction Lift
- 5 ft with a Foot Valve
- Wetted Materials
- Buna N, Carbon/Ceramic, Cast Iron, Stainless Steel
- GPM @ 80 PSI
- 1.9
- Phase
- Single
- GPM @ 10 PSI
- 52
- GPM @ 60 PSI
- 23
- Motor Type
- Capacitor-Start
- Voltage
- 115/230
- Best Efficiency GPM @ PSI
- 35 @ 105
- Amps
- 17/8.5 A
- Frame
- 56J
- Agency Compliance
- c UL us
- Max. Liquid Temp.
- 194 Degrees F
- Impeller Type
- Closed
- Hz
- 60 Hz
- Max. Case Pressure
- 150 psi
- Max. Pressure
- 81 psi
- Duty
- Continuous
- Motor Ambient Temp. Rating
- 40 Degrees C
- Seal Material
- Buna-N/Carbon/Ceramic/Stainless Steel
- Motor RPM
- 3,450 RPM
- Inlet
- 1-1/4" FNPT
- Includes
- Manual
- Bearing Type
- Ball
- GPM @ 40 PSI
- 38
- HP
- 1-1/2
- GPM @ 20 PSI
- 48
- Housing Material
- Cast iron
- Pump Mounting Position
- Horizontal or Vertical with Inlet Down
- Standards
- cULus Listed
- Intake Type
- NPT
- Priming
- Manual
- Discharge Type
- NPT
- Flow Rate @ 40 psi
- 38 gpm
- Maximum RPM
- 3,450 RPM
- Flow Rate @ 50 psi
- 31 gpm
- Compatible with Media Type
- Non-Flammable Liquids, Water
- Case Pressure (Maximum)
- 150 psi
- Mounting Orientation
- Horizontal
- Horsepower
- 1 1/2 hp
- Pump Housing Material
- Cast Iron
- Flow Rate @ 60 psi
- 23 gpm
- Number of Stages
- 4
- Motor Frame Designation
- 56J NEMA
- Motor Ambient Temperature (Minimum)
- 40 Degrees F
- Suction Lift (Maximum)
- 5 ft
- Flow Rate @ 80 psi
- 1.9 gpm
- Shut Off Pressure (Maximum)
- 81 psi
- Wetted Material
- Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
- Duty Cycle
- Continuous
- Maximum Media Temperature
- 194 Degrees F
- Impeller Design
- Closed
- Motor Ambient Temperature (Maximum)
- 104 Degrees F
- Flow Rate @ 10 psi
- 52 gpm
- Frequency
- 60 Hz
- Flow Rate @ 70 psi
- 13 gpm
- For Use With Potable Systems
- No
- Nameplate Voltage
- 115/230V AC
- Best Efficiency Pressure
- 105 psi
- Flow Rate @ 20 psi
- 48 gpm
- Flow Rate @ 30 psi
- 43 gpm
- Pumping Application
- City Water Mains, Cooling Water Systems, Irrigation
- Motor Enclosure Design
- Open Drip Proof
- Inlet Standard
- NPT
- Discharge Standard
- NPT
- Media Temperature - Maximum
- 194 Degrees F
- Shut Off Pressure - Maximum
- 81 psi
- Inlet Gender
- Female
- Suction Lift - Maximum
- 5 ft
- Revolutions Per Minute - Maximum
- 3,450 RPM
- Motor Design
- Capacitor-Start
- Power Source
- Corded Electric
- Motor Ambient Temperature - Minimum
- 40 Degrees F
- Full Load Current
- 17/8.5 A
- Case Pressure - Maximum
- 150 psi
- Pump Casing Material
- Cast Iron
- Motor Ambient Temperature - Maximum
- 104 Degrees F
- Media Temperature - Minimum
- 0 Degrees F
- Installation
- Floor Standing
- Best Efficiency Flow
- 26 gpm
- Flow Rate - Maximum
- 52 gpm
- Feet of Head - Maximum
- 187 ft
- Power Source - TS Only
- Corded Electric
- Power Source - old
- Corded Electric
