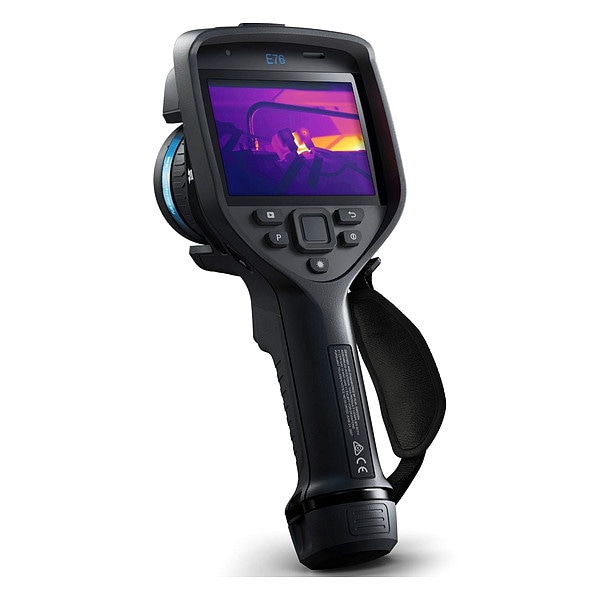

Flir Infrared Camera, 30 mK, 640 x 480 Display FLIR E76-24-14-42-NIST - main

Infrared Camera, 30 mK, 640 x 480 Display

  • Mfr # FLIR E76-24-14-42-NIST

  • Zoro # G411242485

product price: $16,414.99
/ea
Free Shipping & Returns

Key Features

Field of View
14 Degrees x 10 Degrees , 24 Degrees x 18 Degrees , 42 Degrees x 32 Degrees
Features
Data Logging, Image Notation, Image Sketching, Multi Spectral Dynamic Imaging (MSX(R))
Thermal Sensitivity
30 mK
Focus Method
Auto, Manual
Display Resolution
640 x 480
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLIR E76-24-14-42-NIST
Zoro #
G411242485
UPC #
-
Country of Origin
Estonia

Dimensions

Display Size
4 in
Manufacturer Warranty Length
2 yr

Details

Item
Infrared Camera
Field of View
14 Degrees x 10 Degrees , 24 Degrees x 18 Degrees , 42 Degrees x 32 Degrees
Features
Data Logging, Image Notation, Image Sketching, Multi Spectral Dynamic Imaging (MSX(R))
Thermal Sensitivity
30 mK
Focus Method
Auto, Manual
Display Resolution
640 x 480
Visual Light Resolution
5 MP
File Formats
CSQ, H.264, JPEG, MJPEG, MPEG4
Removable Memory Card
8GB SD
Includes
(2) Batteries, 8 GB SD Card, Battery Charger, Front Lens Cap, Hard Transport Case, Infrared Camera with Lens, Lanyards, License Card: FLIR Thermal Studio Starter, Power Supplies, USB 2.0 A to USB C Cable, USB C to HDMI Cable, USB C to USB C Cable
Standards
EN/UL/CSA/PSE 60950-1
Digital Display Screen Type
LCD Touchscreen
Accuracy Degrees F
+/-2.0% of Reading or +/-3.6 Degrees F Whichever is Greater
Minimum Focus Distance
0.15 m
Frame Rate
30 Hz
Lens Angles Included
14 Degrees ,24 Degrees ,42 Degrees
Infrared Resolution
320 x 240
Maximum Emissivity Setting
1.00
Maximum Operating Temperature Degrees F
122 Degrees F
Data Transfer Type
Wired, Wireless
Emissivity Adjustability
Adjustable
Minimum Operating Temperature Degrees F
5 Degrees F
Alert Type
Digital Display, Sound
Interface
SD Card, USB, Wireless
Calibration Certificate Type
NIST, Traceable with data
Temperature Alerts
High Temperature, Low Temperature, Normal Body Temperature
Minimum Emissivity Setting
0.01
Intrinsic Safety
Not Specified Intrinsically Safe
Minimum Temperature Measured Degrees F
-4 Degrees F
Maximum Temperature Measured Degrees F
1,832 Degrees F
Number of Batteries Required
2
Accuracy Degrees C
+/-2.0% of Reading
Battery Chemistry
Lithium Ion
Maximum Temperature Measured Degrees C
650 Degrees C
Battery Voltage
3V
Batteries Included
Yes
Auto Power Off
Yes
Series
Exx
Battery Run Time
2.5 hr
Minimum Temperature Measured Degrees C
-20 Degrees C

Description

Infrared Camera, Temperature Alerts High Temperature, Low Temperature, Normal Body Temperature, Frame Rate 30 Hz, Visual Light Resolution 5 MP, Calibration Certificate Type NIST, Alert Type Light, Sound, Data Transfer Type Wired, Wireless, Digital Display Screen Type LCD Touchscreen, Emissivity Adjustability Adjustable, Maximum Emissivity Setting 1.00, Minimum Emissivity Setting 0.01, Thermal Sensitivity 30 mK, Minimum Focus Distance 0.65 m, Minimum Operating Temperature Degrees F 5 Degrees F

Restrictions

Hazardous material
