  5. Infrared Camera, -4 Degrees to 2732 Degrees F, 40 mK, 640 x 480 Display, 24 Degrees x 18 Degrees

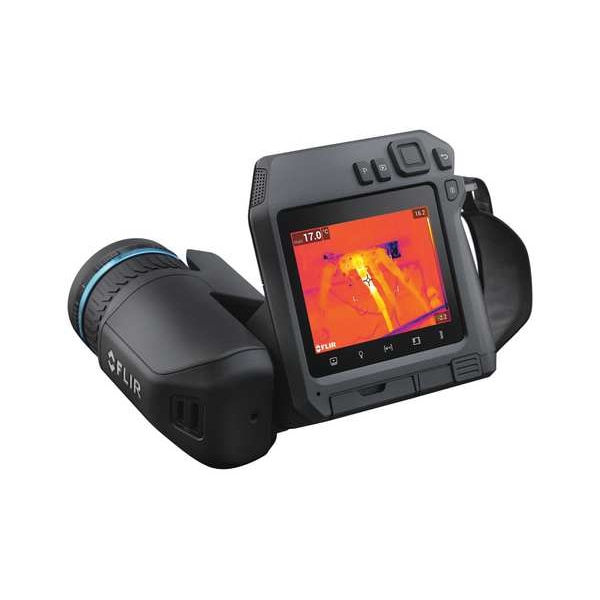

Flir Infrared Camera, -4 Degrees to 2732 Degrees F, 40 mK, 640 x 480 Display, 24 Degrees x 18 Degrees FLIR T530-24 - main

Infrared Camera, -4 Degrees to 2732 Degrees F, 40 mK, 640 x 480 Display, 24 Degrees x 18 Degrees

  • Mfr # FLIR T530-24

  • Zoro # G2477601

product price:  $14,599.99
/ea
Free Shipping & Returns

Key Features

Field of View
24 Degrees x 18 Degrees
Temp. Range (F) - Infrared
-4 Degrees to 2732 Degrees
Features
Data Logging, Image Notation, Image Sketching, Multi Spectral Dynamic Imaging (MSX(R))
Thermal Sensitivity
40 mK
Focus Method
Auto, Manual
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FLIR T530-24
Zoro #
G2477601
UPC #
845188014612
Country of Origin
Sweden

Dimensions

Display Size
4 in
Manufacturers Warranty Length
2 yr Parts and Labor
Manufacturer Warranty Length
2 yr

Details

Item
Infrared Camera
Field of View
24 Degrees x 18 Degrees
Temp. Range (F) - Infrared
-4 Degrees to 2732 Degrees
Features
Data Logging, Image Notation, Image Sketching, Multi Spectral Dynamic Imaging (MSX(R))
Thermal Sensitivity
40 mK
Focus Method
Auto, Manual
Display Resolution
640 x 480
Visual Light Resolution
5 MP
File Formats
H.264, MJPEG, MPEG4
Removable Memory Card
SD
Includes
Battery Charger, Cables (USB 2.0 A to USB Type-C), Front Lens Cap, Hard Carrying Case, Infrared Camera with Lens, Lanyards, License Card Flir Thermal Studio Pro (3 Month Subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 Month Subscription), Power Supply, USB Type-C to HDMI, USB Type-C to USB Type-C
Standards
CSA, EN, PSE 60950-1, UL Listed
Wireless
Yes
Picture In Picture
Yes
Detector Resolution - Infrared
320 x 240 Pixels
Thermal And Visible Light Blending
Yes
Multiple Lens Option
Yes
Emissivity
Adjustable 0.10 to 1.00 or Selected From Materials List
Alarm
yes
Thermal Sensitivity - IR Camera
40 mK
Drop Tested
Not Tested
Data Logging - Instrument
Yes
Temp. Range (C) - Infrared
-20 Degrees to 650 Degrees
Green Environmental Attribute
Product is Rechargeable
Ambient Temp. Range
-15 Degrees to 50 Degrees C
Item - Infrared Camera
Infrared Camera
Special Features
180 Degrees Rotating Lens, 4 in LCD Display with 160 Degrees Viewing Angle, Automated GPS Tagging, Built-In Laser Distance Meter, Capacitive Touch Screen with Intuitive Menu, FLIR Tools Plus, Interchangeable Auto Cal Lenses, Laser Assisted Autofocus, Ultra Max Super Resolution (In FLIR Tools)
Temp. Accuracy (C) - Infrared
+/-2.0% of Reading
Temp. Accuracy (F) - Infrared
+/-2.0%
Ambient Temp. Range (F)
5 Degrees to 122 Degrees
Display - IR Camera
4.0 in Touch Screen Color LCD
Display Resolution - IR Camera
640 x 480 Pixels
Spectral Response - Infrared
7.5 to 14.0um
Thermal and Visible Light Blending
Yes
Articulating Lens
Yes
Laser Sighting
Yes
Frame Rate - IR Camera
30 Hz
Image Notation
Yes
Focus Range - Infrared
0.50m to Infinity
Field of View - IR Camera
24.0 Degrees Horizontal x 18.0 Degrees Vertical
Safety Rating
EN/UL/CSA/PSE 60950-1
NIST Certified
No
Focus Distance - Infrared
Minimum of 0.50 m
Series
T500
Temperature Alerts
High Temperature, Low Temperature, Normal Body Temperature
Number of Batteries Required
2
Battery Chemistry
Lithium Ion
Accuracy Degrees C
+/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater
Frame Rate
30 Hz
Maximum Operating Temperature Degrees F
122 Degrees F
Battery Run Time
4 hr
Lens Angles Included
24 Degrees
Infrared Resolution
320 x 240
Emissivity Adjustability
Adjustable
Data Transfer Type
Wired, Wireless
Minimum Temperature Measured Degrees F
-4 Degrees F
Interface
SD Card, USB, Wireless
Alert Type
Digital Display, Sound
Intrinsic Safety
Not Specified Intrinsically Safe
Minimum Temperature Measured Degrees C
-20 Degrees C
Batteries Included
Yes
Maximum Temperature Measured Degrees C
650 Degrees C
Digital Display Screen Type
LCD Touchscreen
Maximum Temperature Measured Degrees F
2,192 Degrees F
Accuracy Degrees F
+/-2.0% of Reading or +/-3.6 Degrees F Whichever is Greater
Calibration Certificate Type
Available Separately
Minimum Operating Temperature Degrees F
5 Degrees F
Maximum Emissivity Setting
1.00
Minimum Focus Distance
0.15 m
Minimum Emissivity Setting
0.01
Battery Voltage
3V

Description

Infrared Camera, Temperature Alerts High Temperature, Low Temperature, Normal Body Temperature, Frame Rate 30 Hz, Visual Light Resolution 5 MP, Calibration Certificate Type Available Separately, Alert Type Digital Display, Sound, Data Transfer Type Wired, Wireless, Digital Display Screen Type LCD Touchscreen, Emissivity Adjustability Adjustable, Maximum Emissivity Setting 1.00, Minimum Emissivity Setting 0.01, Thermal Sensitivity 40 mK, Minimum Focus Distance 0.15 m
