  5. Infrared Camera, -40 Degrees to 3632 Degrees F, 20 mK, 800 x 480 Display, 28 Degrees x 21 Degrees

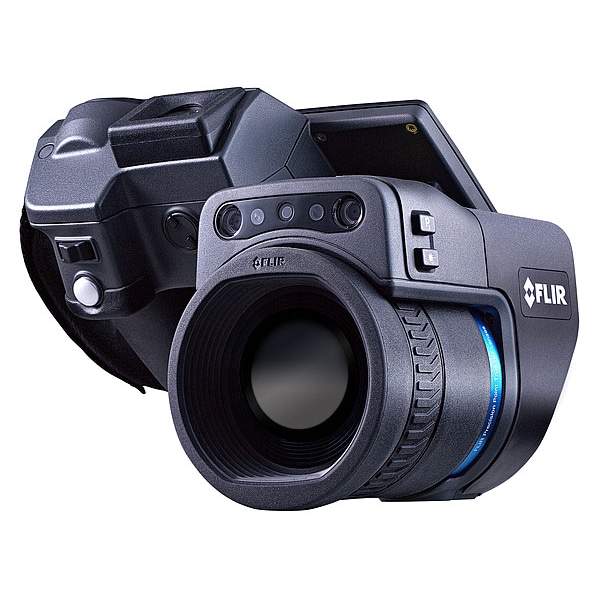

Flir Infrared Camera, -40 Degrees to 3632 Degrees F, 20 mK, 800 x 480 Display, 28 Degrees x 21 Degrees FLIR T1020-28 - main

Infrared Camera, -40 Degrees to 3632 Degrees F, 20 mK, 800 x 480 Display, 28 Degrees x 21 Degrees

  • Mfr # FLIR T1020-28

  • Zoro # G2096431

product price:  $57,559.99
/ea
Free Shipping & Returns

Key Features

Field of View
28 Degrees x 21 Degrees
Temp. Range (F) - Infrared
-40 Degrees to 3632 Degrees
Features
Data Logging, Image Notation, Multi Spectral Dynamic Imaging (MSX(R)), Viewfinder
Thermal Sensitivity
20 mK
Focus Method
Auto, Manual
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLIR T1020-28
Zoro #
G2096431
UPC #
845188010928
Country of Origin
Sweden

Dimensions

Display Size
4.3 in
Manufacturers Warranty Length
2 yr Parts and Labor
Manufacturer Warranty Length
2 yr

Details

Item
Infrared Camera
Field of View
28 Degrees x 21 Degrees
Temp. Range (F) - Infrared
-40 Degrees to 3632 Degrees
Features
Data Logging, Image Notation, Multi Spectral Dynamic Imaging (MSX(R)), Viewfinder
Thermal Sensitivity
20 mK
Focus Method
Auto, Manual
Display Resolution
800 x 480
Visual Light Resolution
5 MP
File Formats
H.264
Removable Memory Card
SD
Includes
Battery Charger, Bluetooth Headset, Hard Carrying Case, HDMI-HDMI Cable, Lens Cap, Neck Strap, Power Supply, Standard A to Micro-B Calibration Certificate
Standards
CSA, EN, PSE 60950-1, UL Listed
Image Notation
Yes
Ambient Temp. Range
5 Degrees to 122 Degrees F (-15 Degrees to 50 Degrees C)
Thermal And Visible Light Blending
Yes
Emissivity
Adjustable 0.01 to 1.00
Thermal Sensitivity - IR Camera
20 mK
Thermal and Visible Light Blending
Yes
Detector Resolution - Infrared
1024 x 768 Pixels
Temp. Range (F)
-40 Degrees to 3632 Degrees F
Temp. Range (C)
-40 Degrees to 2000 Degrees C
Spectral Response - Infrared
7.5 to 14um
Temp. Range (C) - Infrared
-40 Degrees to 2000 Degrees
Picture In Picture
Yes
Laser Sighting
Yes
Multiple Lens Option
Yes
Thermal Resolution
786,432 Pixels
Display Resolution - IR Camera
800 x 480 Pixels
Special Features
Viewfinder for Outdoor or Bright Conditions, (2) Programmable Buttons for Favorite Functions, Voice/Text/Sketch Annotation, 8X Continuous Zoom, GPS and Compass Data Added to Images, Auto/Manual Focus, 20 mK Sensitivity, Interchangeable and Articulating Lenses
Wireless
No
Item - Infrared Camera
Infrared Camera
Data Logging
Yes
Data Logging - Instrument
Yes
Display
4.3" (800 x 480) Touch Screen
Temp. Accuracy
+/-1%
NIST Certified
No
Field of View - IR Camera
28.0 Degrees Horizontal x 21.0 Degrees Vertical
Spectral Response
7.5 to 14um
Focus Range - Infrared
0.40m to Infinity
IR Detector Resolution
1024 x 768 Pixels
Alarm
yes
Frame Rate - IR Camera
30 Hz
Temp. Accuracy (F) - Infrared
+/-1.0% or 1.8 Degrees Whichever is Greater
Temp. Accuracy (C) - Infrared
+/-1.0% or +/-1.0 Degrees Whichever is Greater
Display - IR Camera
4.3 in Touch Screen Color LCD
Image Frequency
30 Hz
Drop Tested
Not Tested
Focus Range
0.4m to Infinity
Articulating Lens
Yes
Green Environmental Attribute
Product is Rechargeable
Focus Distance - Infrared
Minimum of 0.40 m
Data Transfer Type
Wired, Wireless
Minimum Operating Temperature Degrees F
5 Degrees F
Number of Batteries Required
2
Auto Power Off
Yes
Maximum Temperature Measured Degrees F
3,632 Degrees F
Infrared Resolution
1024 x 768
Temperature Alerts
High Temperature, Low Temperature, Normal Body Temperature
Accuracy Degrees C
+/-1.0% of Reading or +/-1.0 Degrees Whichever is Greater; +/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater
Portability
Fixed
Intrinsic Safety
Not Specified Intrinsically Safe
Interface
SD Card, USB, Wireless
Calibration Certificate Type
Available Separately
Accuracy Degrees F
+/-2.0% of Reading or +/-3.6 Degrees F Whichever is Greater
Lens Angles Included
28 Degrees
Frame Rate
30 Hz
Alert Type
Digital Display, Sound
Minimum Emissivity Setting
0.01
Maximum Operating Temperature Degrees F
122 Degrees F
Maximum Emissivity Setting
1.00
Minimum Focus Distance
0.4 m
Maximum Temperature Measured Degrees C
2,000 Degrees C
Digital Display Screen Type
LCD Touchscreen
Series
FLIR T1000 Series
Minimum Temperature Measured Degrees F
-40 Degrees F
Batteries Included
Yes
Emissivity Adjustability
Adjustable
Battery Run Time
2.5 hr
Battery Chemistry
Lithium Ion
Minimum Temperature Measured Degrees C
-40 Degrees C

Description

Infrared Camera, Temperature Alerts High Temperature, Low Temperature, Normal Body Temperature, Frame Rate 30 Hz, Visual Light Resolution 5 MP, Calibration Certificate Type Available Separately, Alert Type Digital Display, Sound, Data Transfer Type Wired, Wireless, Digital Display Screen Type LCD Touchscreen, Emissivity Adjustability Adjustable, Maximum Emissivity Setting 1.00, Minimum Emissivity Setting 0.01, Thermal Sensitivity 20 mK, Minimum Focus Distance 0.4 m

Restrictions

Hazardous material
