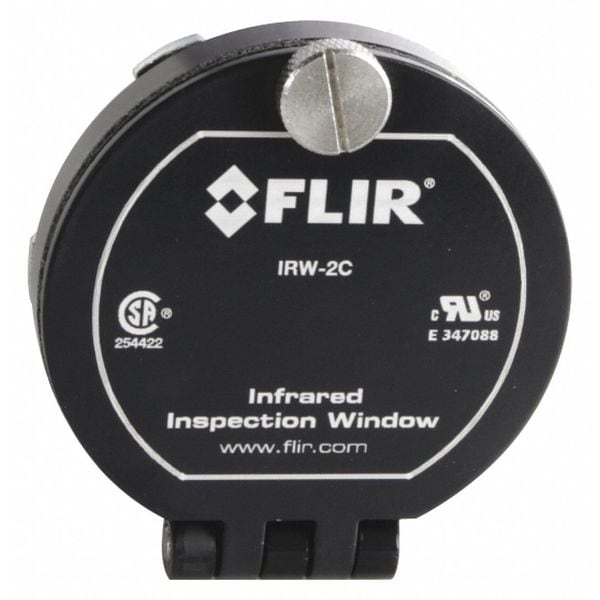

Round Infrared Window, 50mm dia, Type 3/12
- Mfr # IRW-2C
- Zoro # G4271976
product price:Â
$
288.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Includes
Installation Instructions
Viewing Aperture Area
2.46 sq in
Optic Maximum Temperature
2,474 Degrees F
NEMA Rating
12, 3
Gasket Maximum Temperature
170 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- IRW-2C
- Zoro #
- G4271976
- UPC #
- 845188002817
- Country of Origin
- Estonia
- Item
- 2" Round Infrared Window
- Includes
- Installation Instructions
- Viewing Aperture Area
- 2.46 sq in
- Optic Maximum Temperature
- 2,474 Degrees F
- NEMA Rating
- 12, 3
- Gasket Maximum Temperature
- 170 Degrees F
- Body Material
- Aluminum
- Voltage Range
- Any
- IP Rating
- IP67
- Components
- Anodized Aluminum Frame and Cover
- Use
- Indoor, Outdoor
- Body Maximum Temperature
- 500 Degrees F
- Special Features
- Hinged Cover Stays Attached, No Special Tool to Secure Cover, Window Labeling/ID Inside the Cover, (3) Step Installation, No Screw Holes to Drill
- Lens Material
- Crystal
- Maximum Operating Temperature Degrees F
- 500 Degrees F
- Minimum Operating Temperature Degrees F
- -40 Degrees F
- Cover Material
- Aluminum
- Frame Material
- Aluminum
- For Outdoor Use
- Yes
Description
2 In. Round Infrared Window, Maximum Operating Temperature Degrees F 500 Degrees F, Minimum Operating Temperature Degrees F -40 Degrees F, Optic Maximum Temperature 2,474 Degrees F, Viewing Aperture Area 2.46 sq in, Viewing Aperture Diameter 1.77 in, Viewing Aperture Height Not Applicable, Viewing Aperture Width Not Applicable, Window Thickness 0.07 in, Body Maximum Temperature 500 Degrees F, Includes Installation Instructions, IP Rating IP67, Gasket Maximum Temperature 170 Degrees F
