  9. On-Demand Diaphragm Washdown Pump, Polypropylene, Santoprene, 4 Diaphragms, 12V DC, 04325143S
This item is Discontinued.

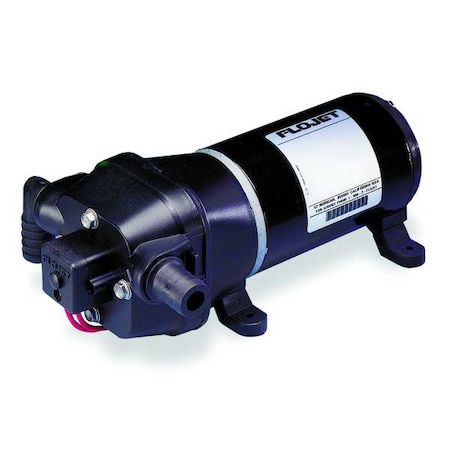

Flojet On-Demand Diaphragm Washdown Pump, Polypropylene, Santoprene, 4 Diaphragms, 12V DC, 04325143S 04325143S

On-Demand Diaphragm Washdown Pump, Polypropylene, Santoprene, 4 Diaphragms, 12V DC, 04325143S (Discontinued)

  • Mfr # 04325143S
  • Zoro # G2596264
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
04325143S
Zoro #
G2596264
UPC #
094700720214
Country of Origin
Mexico

Dimensions

Discharge Connection Size
3/4 in
Intake Connection Size
3/4 in

Details

Item
On-Demand Diaphragm Washdown Pump
Voltage
12VDC
Housing Material - Pumps
Polypropylene
Max. Flow
4.5 gpm
Inlet/Outlet
3/4 in
Fuse Amps
15 A
Type
Quad Chamber Diaphragm
Power Type
Electric
Item - Industrial Pumps
Washdown Pump
Diaphragm Material
Santoprene
Pressure On
30 psi
Includes
(2) 3/4 in Hose Barb Ports, (2) Garden Hose Ports, Integral Pressure Switch, Marine Splash-Proof Motor, Marine-Grade Wire Leads, Nozzle, Strainer
Diaphragm Material - Pumps
Santoprene(R)
Check Valve
EPDM
Flow
4.5 gpm
Pressure Off
40 psi
Prime in Feet
8
Max. Operating PSI
40
Self-Priming
Yes
Max. Pressure - Pumps
40 psi
Voltage - Pumps
12V DC
Body Material
Polypropylene
Housing Material
Polypropylene
Series
4325
Diaphragm Chamber Design
4
Current
6 A
Flow Rate @ 0 psi
4.5 gpm
Discharge Connection Type
Barbed
Check Valve Material
EPDM
Intake Connection Type
Barbed
Priming
Self-Priming
Flow Rate (Maximum)
4.5 gpm
Pressure Switch
No
Nameplate Voltage
12V DC
Operating Pressure (Maximum)
40 psi
Flow Rate @ 40 psi
4.5 gpm

Description

On-Demand Diaphragm Washdown Pump, Operating Pressure (Maximum) 40 psi, Diaphragm Chamber Design 4, Diaphragm Material Santoprene, Check Valve Material EPDM, Discharge Connection Size 3/4 in, Discharge Connection Type Barbed, Flow Rate (Maximum) 4.5 gpm, Housing Material Polypropylene, Intake Connection Size 3/4 in, Intake Connection Type Barbed, Nameplate Voltage 12V DC, Priming Self-Priming, Pressure Switch No, Standards -, Current 6 A, Flow Rate @ 0 psi 4.5 gpm, Flow Rate @ 40 psi 4.5 gpm
