Flomec

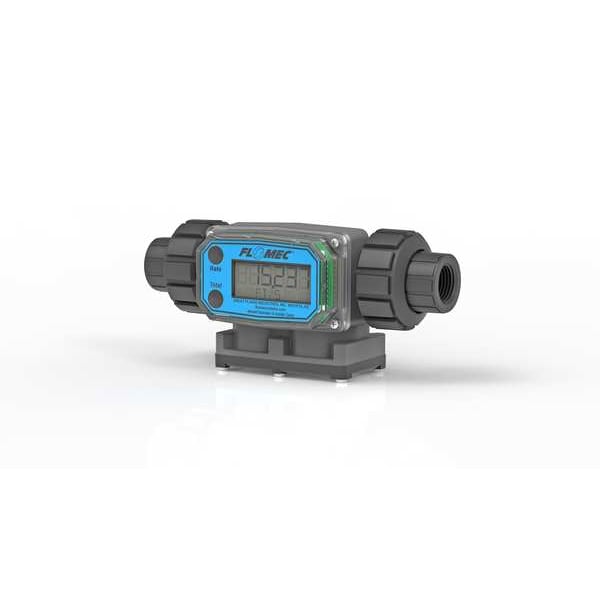

Electronic Flowmeter, 1/2", FNPT, 4.5" L

product price: $1,041.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material PVDF
  • Type Turbine
  • For Pipe Size 1/2 in
  • Flow Material Chemicals, Corrosive Fluids, Water, Water-Like Liquids
  • Connection Size 1/2 in
See all product information

Product Information

  • Brand Flomec
  • MFR # G2P05NQ9GMA
  • Zoro # G600690080
  • Country of Origin United States
  • Category Flowmeters

Dimensions

For Pipe Size 1/2 in
Connection Size 1/2 in
Width (In.) 2 1/10 in
Length (In.) 7 3/10 in
Height (In.) 3 23/25 in
Manufacturer Warranty Length 1 yr
Overall Length 7.2 in
Overall Width 2.1 in
Overall Height 3.2 in

Details

Item Electronic Flowmeter
Housing Material PVDF
Type Turbine
Flow Material Chemicals, Corrosive Fluids, Water, Water-Like Liquids
Connection Type FNPT
Max. Pressure 100 psi
Wetted Materials Alumina Ceramic, Fluorocarbon, PVDF (15% Carbon Filled), PVDF
Frequency Range (Hz) 48 to 480
Max. Viscosity 20 cps
Flow Range 1.2 to 12 gpm
Fluid Temp. Range 14 Degrees to 140 Degrees F
Accuracy (%) +/- 1.5
Display Type Digital
Flow Range @ GPH 60 to 600
Display Units gal
Rotor Type PVDF Turbine
Power Requirement 2-AAA Alkaline Batteries
Output Type 4-20 mA
Flow Range (LPM) 3.8 to 38
Shaft Material Ceramic
Flow Range (GPM) 1.2 to 12
Standards ATEX, CE Certified, FM Approved, IECE
Sensor Type Turbine
Flow Rate - Maximum 12 gpm
Frequency - Maximum 480 Hz
Viscosity - Maximum 20 cps
Unit Of Measure Gallons, Liters
Accuracy +/-1.5% (With Computer), +/-2% (Body Only)
Includes Totalizer Yes
Media Temperature - Minimum -20 Degrees F
Frequency - Minimum 48 Hz
Wetted Material Alumina Ceramic, Viton, PVDF
Mounting Orientation Universal
Operating Pressure - Maximum 100 psi
Flowmeter Type Turbine
Flow Rate - Minimum 1.2 gpm
Product Type Flow Meter
Media Temperature - Maximum 180 Degrees F
Compatible Flow Material Chemicals, Fuels, Water
Rotor Material PVDF

Description

Electronic Flowmeter, Product Type Flow Meter, Flowmeter Type Turbine, Accuracy +/-1.5 Percent (With Computer), +/-2 Percent (Body Only), Connection Size 1/2 in, Connection Type FNPT, Compatible Flow Material Chemicals, Fuels, Water, Media Temperature - Maximum 180 Degrees F, Media Temperature - Minimum -20 Degrees F, Viscosity - Maximum 20 cps, Housing Material PVDF, Rotor Material PVDF, Shaft Material Ceramic, Wetted Material Alumina Ceramic, Viton, PVDF
