Flowline

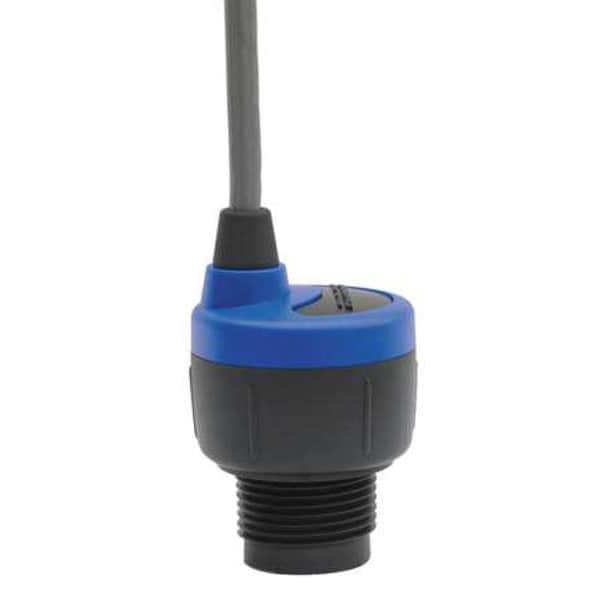

Ultrasonic Level Sensor, 49.2 In

product price: $429.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Height 3.2 in
  • Mounting 1 in NPT
  • Width 2 in
  • Overall Length 2 in
  • Material PVDF
See all product information

Product Information

Dimensions

Height 3.2 in
Width 2 in
Overall Length 2 in
Beam Width 2 in
Overall Width 2 in
Overall Height 51.2 in
Connection Size 1 in
Antenna Diameter 1 3/8 in
Overall Diameter 2 in

Details

Mounting 1 in NPT
Material PVDF
Item Noncontact Ultrasonic Level Sensor
Range 49.2 in
Enclosure Material Polycarbonate
Max. Pressure 30 psi
Dead Band 2 in
Standards CE Certified, cFMus Approved, RoHS
Classification General Purpose
Accuracy 1/8 in
Display None
Temp. Range 20 Degrees to 140 Degrees F
Resolution 0.019 in
Gasket Material Viton
Input Voltage 12 to 28V DC
Configuration WebCal
Enclosure Rating IP68
Output 0 to 10V or 976 to 2000Hz, 0 to 5V
Connection Type NPT
Output Wire Configuration 3-Wire
Operating Frequency 100 kHz
Voltage - Maximum 24V DC
Operating Pressure - Maximum 30 psi
Media Temperature - Minimum 20 Degrees F
Display Type None
Spatial Resolution 0.019 in
Media Temperature - Maximum 140 Degrees F
For Media Type Corrosive Liquid, Sticky/Dirty Liquid

Description

Noncontact Ultrasonic Level Sensor, For Media Type Corrosive Liquid, Sticky/Dirty Liquid, Antenna Diameter 1 3/8 in, Range 49.2 in, Connection Size 1 in, Connection Type NPT, Accuracy 1/8 in, Voltage - Maximum 24V DC, Dead Band 2 in, Operating Frequency 100 kHz, Spatial Resolution 0.019 in, Beam Width 2 in, Operating Pressure - Maximum 30 psi, Media Temperature - Minimum 20 Degrees F, Media Temperature - Maximum 140 Degrees F, Output Wire Configuration 3-Wire, Display Type None
