Shop FLOWSERVE

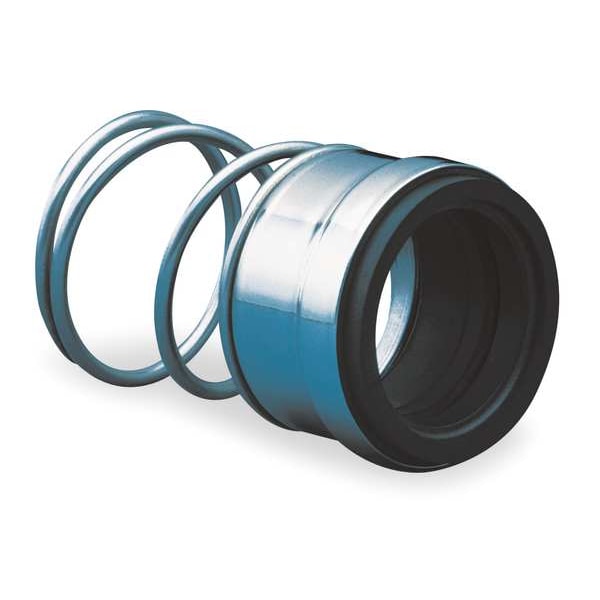

Seal, Pump Shaft

  • Mfr # 51-187-05

  • Zoro # G2595765

product price:  $137.99
/ea
Free Shipping & Returns

Key Features

Shaft Size (In.)
1 7/8 in
Nominal Working Length (In.)
2.125 in
Seat Bore
2.625 in
Seat Thickness
0.224 in
Standard Industry Seal Number
523V
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
51-187-05
Zoro #
G2595765
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Size (In.)
1 7/8 in
Nominal Working Length (In.)
2.125 in
Seat Thickness
0.224 in
For Shaft Diameter
1 7/8 in
Working Length
2.13 in
Seal Head Thickness
0.109 in
Seal Head Outside Diameter
2.437 in
Seal Head Inside Diameter
1.875 in
Seat Outside Diameter
2.625 in

Details

Seat Bore
2.625 in
Standard Industry Seal Number
523V
Max. Temp. (F)
400 Degrees F
Material Content Code
VCRJR
Seal Type
51
Min. Temp. (F)
-25 Degrees F
Replacement For
US Seal Types E, D and Crane Types 1 and 2
Item
Replacement Pump Shaft Seal
Shaft Seal Type
Mechanical
Compatible with Media Type
Chemical, Wastewater
Gasket Material
FKM
Spring Material
316 Stainless Steel
Maximum Temperature
400 Degrees F
Minimum Temperature
-40 Degrees F
Seal Type Designation
51
Standards
ISO 9001, TS16949
Shut Off Pressure (Maximum)
150 psi
Spring Type
Single Spring
Compatible with Pump Type
Centrifugal Pump, Straight Centrifugal Pump
Spring Configuration
Single Spring
Chemical Compatibility
Detergents, Non-Flammable Liquids, Saltwater, Water
Product Type
Component Mechanical Seal
Bellows Material
FKM
Temperature (Minimum)
-40 Degrees F
Shaft Speed - Maximum
82 fps
Temperature (Maximum)
400 Degrees F
Ring Material
Carbon
Seal Arrangement
Single
Shut Off Pressure - Maximum
150 psi

Description

Narrow Cross-section Replacement Pump Shaft Seal, For Shaft Diameter 1 7/8 in, Gasket Material Rubber, Compatible with Media Type Chemical, Wastewater, Seal Type Designation 51, Shaft Seal Type Mechanical Shaft Seal, Shut Off Pressure (Maximum) 150 psi, Spring Material 316 Stainless Steel, Spring Type Single Spring, Standards ISO 9001, TS16949, Maximum Temperature 400 Degrees F, Minimum Temperature -40 Degrees F, Working Length 2.13 in
