  9. Pump, 1/2" NPTF, 327 Max. GPH, Brass, Bypass
Shop All Rotary Pumps
Fluid-O-Tech

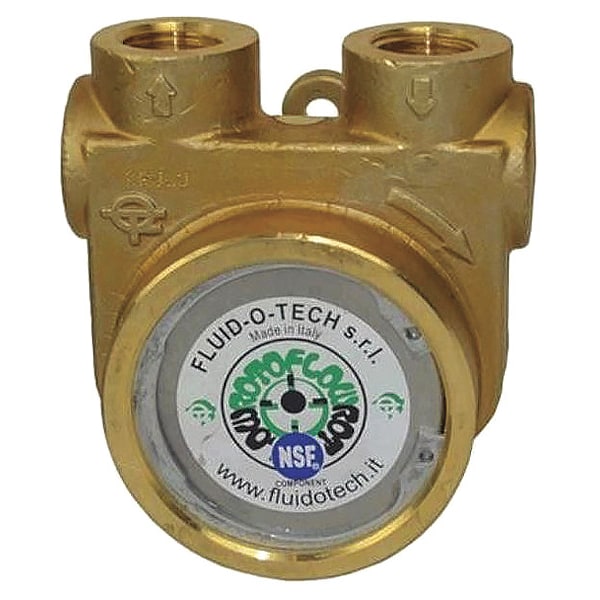

Pump, 1/2" NPTF, 327 Max. GPH, Brass, Bypass

product price: $144.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Min. Flow Rate (GPH) 319 gph
  • Relief Pressure Max. (PSI) 260 psi
  • GPH of Water @ 200 PSI 316 gph
  • External Relief Not Required
  • Body Material Brass
See all product information

Product Information

Dimensions

Manufacturer Warranty Length 15 mo
Shaft Outer Diameter 1/8 in
Media Intake Connection Size 1/2 in
Overall Length 4.1 in
Overall Height 3.9 in
Discharge Connection Size 1/2 in
Overall Width 4.4 in

Details

Item Rotary Vane Pump
Min. Flow Rate (GPH) 319 gph
Relief Pressure Max. (PSI) 260 psi
GPH of Water @ 200 PSI 316 gph
External Relief Not Required
Body Material Brass
Compliance NSF
By-Pass Yes
GPH 327 gph
Relief Valve PSI Setting 125 psi
Max. Pressure (PSI) 260 psi
Mounting Carbonator Clamp Style
Max. Temp. (F) 158 Degrees F
GPH of Water @ 250 PSI 319 gph
Built-In Relief Valve
Max. Flow (GPH) 327 gph
Inlet/Outlet NPTF (In.) 1/2 in
GPH of Water @ 150 PSI 319 gph
Shaft Stainless Steel
GPH of Water @ 50 PSI 325 gph
GPH of Water @ 100 PSI 322 gph
Includes Relief Valve
Shaft Material Stainless Steel
Vane Material Carbon
Flow Rate @ 200 psi 275 gph
Flow Rate @ 100 psi 280 gph
For Media Type Water
Flow Rate @ 250 psi 319 gph
NSF 169 Listed Yes
Flow Rate @ 50 psi 290 gph
Flow Rate - Minimum 250 gph
Seal Material Buna-N
Discharge Connection Type FNPT
Feet of Head - Maximum 240 psi
Operating Temperature - Minimum 23 Degrees F
Flow Rate - Maximum 295 gph
Standards NSF
Viscosity - Maximum 150 cps
Compatible Motor Frame 48Y NEMA, 56C NEMA, M71, M80 IEC
Operating Temperature - Maximum 158 Degrees F
Includes Filter No
Flow Rate @ 150 psi 278 gph
Media Intake Connection Type FNPT
Operating Pressure - Maximum 290 psi

Description

Rotary Vane Pump, Flow Rate - Maximum 295 gph, Feet of Head - Maximum 240 psi, Mounting Type Carbonator Clamp, Compatible Motor Frame 48Y NEMA, 56C NEMA, M71, M80 IEC, Media Intake Connection Size 1/2 in, Media Intake Connection Type FNPT, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Vane Material Carbon, Includes Filter No, Filter Rating - Maximum Not Applicable, For Media Type Water, NSF 169 Listed Yes, Operating Pressure - Maximum 290 psi

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
