  9. Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 49 GPM
Shop All Diaphragm Pumps
Versa-Matic

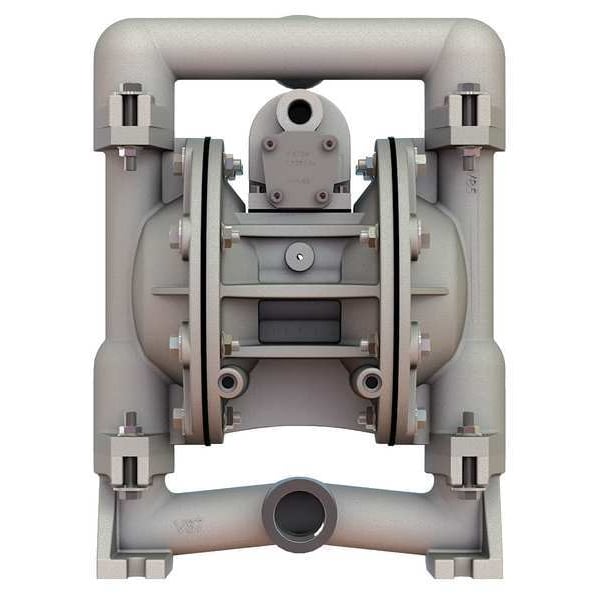

Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 49 GPM

product price: $1,473.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material - Pumps Aluminum
  • Diaphragm Material - Pumps PTFE
  • Max. Flow 36 gpm
  • Pump Operation Type Air
  • Max. Temp - Pumps 220 Degrees F
See all product information

Product Information

Dimensions

Inlet/Outlet Size 1 in
Air Inlet Size 3/8 in FNPT
Manufacturers Warranty Length 1 yr
Max. Dia. Solids 1/8 in
Height 14 35/64 in
Width 10 23/32 in
Length 9 21/64 in
Overall Length 9.1 in
Overall Height 14.5 in
Overall Width 10.8 in
Media Discharge Connection Size 1 in
Solid Diameter (Maximum) 0.13 in
Air Intake Connection Size 3/8 in
Media Intake Connection Size 1 in

Details

Housing Material - Pumps Aluminum
Diaphragm Material - Pumps PTFE
Max. Flow 36 gpm
Item - Air Operated Pumps Double Diaphragm Pump
Pump Operation Type Air
Max. Temp - Pumps 220 Degrees F
Connection Style NPT
Agency Compliance ABS, ATEX, CE, EAC
Max. Temp. 220 Degrees F
Ball Material PTFE
Self-Priming Wet 31 ft
Operation Type Air Operated
Manifold Connection Single Port
Valve Type Ball
Body Material Aluminum
Diaphragm Material PTFE
Max. Flow GPM 49 gpm
Self-Priming Dry 16 ft
Max. Pressure (PSI) 125
Item Double Diaphragm Pump
Max. Operating Pressure 125 psi
Check Seat Material Aluminum
Standards ATEX, EN ISO 80079-36: 2016, EN ISO 80079-37: 2016, EN60079-25: 2010
Chemical Compatibility Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oils, Water
Wetted Housing Material Aluminum
Flow Rate @ 40 psi 36.4 gpm
Non-Wetted Housing Material Aluminum
Air Consumption (Maximum) 50 scfm
Pump Assembly Type Bolt
Air Intake Pressure (Maximum) 125 psi
Flow Rate (Maximum) 49 gpm
Operating Pressure (Maximum) 125 psi
Media Discharge Connection Type NPT
Duty Cycle Continuous
Feet of Head (Maximum) 320 ft
Media Intake Location Bottom, Center
Flow Rate @ 20 psi 26.5 gpm
Series Family E1
Media Temperature (Maximum) 220 Degrees F
Flow Rate @ 60 psi 40.8 gpm
Flow Rate @ 80 psi 45.4 gpm
Air Intake Connection Type NPT
Media Discharge Location Center, Top
Valve Material PTFE
For Use With Potable Systems No
Manifold Connection Type NPT
Priming Self-Priming
Flow Rate @ 100 psi 48.2 gpm
Media Intake Connection Type NPT

Description

Double Diaphragm Pump, Air Consumption (Maximum) 50 scfm, Air Intake Connection Size 3/8 in, Air Intake Connection Type NPT, Check Seat Material Aluminum, Diaphragm Material PTFE, Feet of Head (Maximum) 320 ft, Flow Rate (Maximum) 49 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPT, Media Discharge Location Center, Top, Media Intake Connection Size 1 in, Media Intake Connection Type NPT, Media Intake Location Bottom, Center
