  9. Pump, 3/8" NPTF, 144 Max. GPH, Brass, Bypass
Shop All Rotary Pumps
Fluid-O-Tech

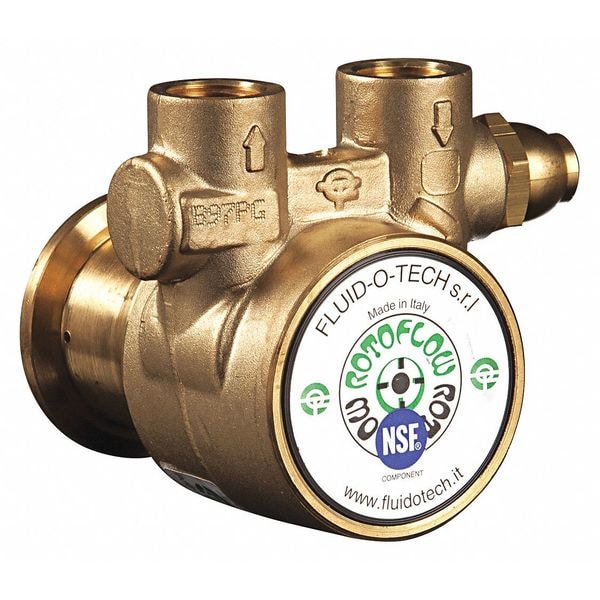

Pump, 3/8" NPTF, 144 Max. GPH, Brass, Bypass

product price: $252.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • GPH of Water @ 100 PSI 140 gph
  • GPH of Water @ 250 PSI 136 gph
  • Inlet/Outlet NPTF (In.) 3/8 in
  • Shaft Stainless Steel
  • Built-In Relief Valve
See all product information

Product Information

Dimensions

Media Intake Connection Size 3/8 in
Shaft Outer Diameter 1/8 in
Discharge Connection Size 3/8 in
Manufacturer Warranty Length 15 mo

Details

Item Rotary Vane Pump
GPH of Water @ 100 PSI 140 gph
GPH of Water @ 250 PSI 136 gph
Inlet/Outlet NPTF (In.) 3/8 in
Shaft Stainless Steel
Built-In Relief Valve
GPH 144 gph
Relief Valve PSI Setting 125 psi
External Relief Not Required
GPH of Water @ 150 PSI 137 gph
Relief Pressure Max. (PSI) 260 psi
Compliance NSF
Mounting Carbonator Clamp Style
Max. Temp. (F) 158 Degrees F
Max. Flow (GPH) 144 gph
By-Pass Yes
GPH of Water @ 50 PSI 142 gph
GPH of Water @ 200 PSI 134 gph
Max. Pressure (PSI) 260 psi
Min. Flow Rate (GPH) 136 gph
Body Material Brass
Vane Material Carbon
Includes Relief Valve
Shaft Material Stainless Steel
Compatible Motor Frame 48Y NEMA, 56C NEMA, M71, M80 IEC
Media Intake Connection Type FNPT
Standards NSF
Flow Rate @ 250 psi 136 gph
Operating Temperature - Maximum 158 Degrees F
Discharge Connection Type FNPT
For Media Type Moderate Aggressive Liquid, Water
Flow Rate @ 100 psi 150 gph
Operating Temperature - Minimum 23 Degrees F
Includes Filter No
Flow Rate @ 200 psi 105 gph
NSF 169 Listed Yes
Flow Rate @ 150 psi 110 gph
Feet of Head - Maximum 240 psi
Flow Rate - Maximum 118 gph
Flow Rate - Minimum 105 gph
Seal Material Buna-N
Operating Pressure - Maximum 290 psi
Flow Rate @ 50 psi 115 gph
Viscosity - Maximum 150 cps

Description

Rotary Vane Pump, Flow Rate - Maximum 118 gph, Feet of Head - Maximum 240 psi, Mounting Type Carbonator Clamp, Compatible Motor Frame 48Y NEMA, 56C NEMA, M71, M80 IEC, Media Intake Connection Size 3/8 in, Media Intake Connection Type FNPT, Discharge Connection Size 3/8 in, Discharge Connection Type FNPT, Vane Material Carbon, Includes Filter No, Filter Rating - Maximum Not Applicable, For Media Type Moderate Aggressive Liquid, Water, NSF 169 Listed Yes, Operating Pressure - Maximum 290 psi

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
