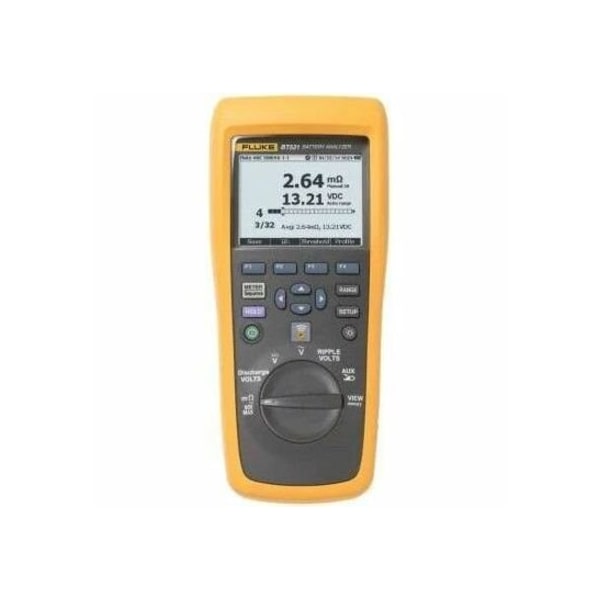

Fluke Battery Capacity Analyzer, 600 to 1000V FLUKE-BT521 - main

Battery Capacity Analyzer, 600 to 1000V

  • Mfr # FLUKE-BT521

  • Zoro # G9123773

product price:  $7,580.99
/ea
Free Shipping & Returns

Key Features

Includes

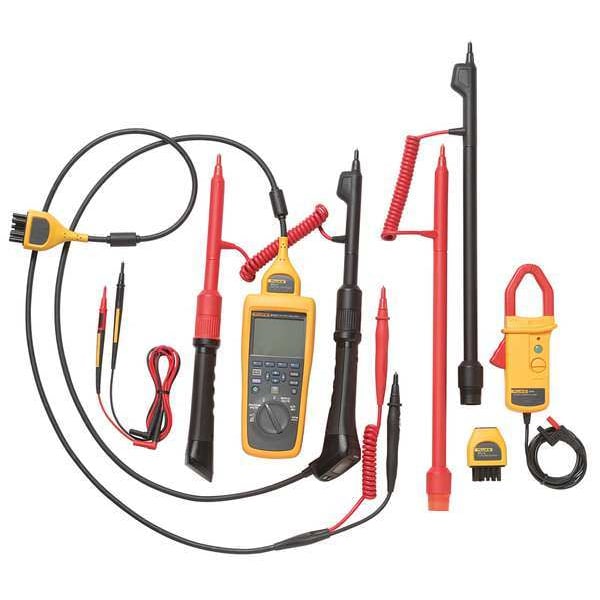

(2) Spare Fuses, 4-Wire Test Pin Set, Battery Tags, BC500 AC Charger, Belt Strap, BTL10 Basic Test Lead (Set), BTL21 Intelligent Test Probe Set with Extender And Temperature Sensor, Carrying Case, I410 AC/DC Current Clamp, Magnetic Hanging Strap, Mini-USB Cable, Shoulder Strap, TL175 Twistguard Test Leads with Adapter, Zero Ohm Calibration Resistor
Display
LCD
Works With
Batteries From 600 to 1000V
Manufacturers Warranty Length
3 yr
Measures
AC and DC Current, AC and DC Voltage, Frequency, Resistance, Ripple Voltage, Temperature
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-BT521
Zoro #
G9123773
UPC #
095969780216
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr

Details

Item
Battery Capacity Analyzer
Includes
(2) Spare Fuses, 4-Wire Test Pin Set, Battery Tags, BC500 AC Charger, Belt Strap, BTL10 Basic Test Lead (Set), BTL21 Intelligent Test Probe Set with Extender And Temperature Sensor, Carrying Case, I410 AC/DC Current Clamp, Magnetic Hanging Strap, Mini-USB Cable, Shoulder Strap, TL175 Twistguard Test Leads with Adapter, Zero Ohm Calibration Resistor
Display
LCD
Works With
Batteries From 600 to 1000V
Measures
AC and DC Current, AC and DC Voltage, Frequency, Resistance, Ripple Voltage, Temperature
Max. Input Volts
1,000V DC
Powered By
7.2V Lithium-Ion Battery
Input Voltage - Minimum
6 V
Includes Tester Batteries
Batteries Included
Calibration Certificate Type
Not Certified
Tester Number of Batteries Required
1
Batteries Tested
Lithium-Ion
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance, Temperature
Tester Battery Chemistry
Lithium Ion
Input Voltage - Maximum
1,000 V
Digital Display Screen Type
LCD
Testing Functions
AC Current, AC Voltage, Battery Discharge, DC Current, DC Voltage, Frequency, Resistance, Ripple Voltage, Temperature
Accuracy
+/-0.02% of reading +/- 3 digits
Calibration Certificate Included
No Certification Included
Tester Battery Voltage
7.4V

Description

Battery Capacity Analyzer, Works With Batteries From 600 to 1000V, Measures Resistance, DC and AC Voltage, DC and AC Current, Ripple Voltage, Frequency, Temperature, Max. Input Volts 1000 DC, Powered By 7.2V Lithium-Ion battery, LCD Display

Restrictions

Hazardous material
