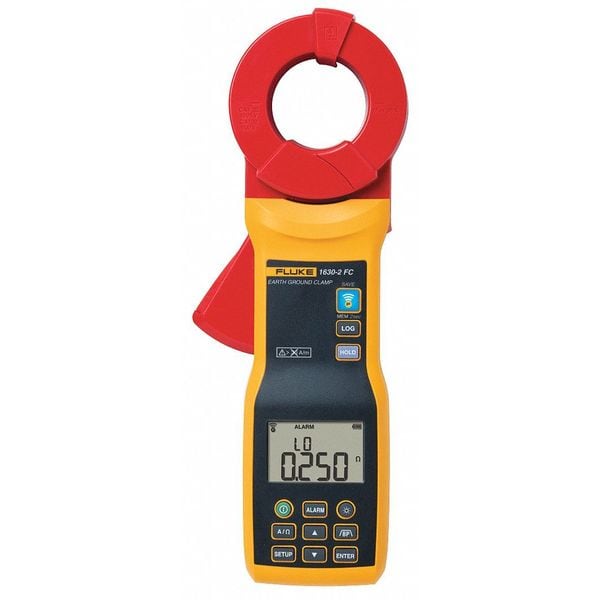

Fluke Clamp On Earth Resistance Tester, LCD FLUKE-1630-2 FC - main

Clamp On Earth Resistance Tester, LCD

  • Mfr # FLUKE-1630-2 FC

  • Zoro # G3369051

product price:  $2,703.99
/ea
Free Shipping & Returns

Key Features

Ground Resistance Range
0.025 to 1500 ohm
Resolution
4 ohm
Data Logging
32,760 Records
Jaw Capacity
1.5 in (40mm)
Battery Type
(4) AA Alkaline
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FLUKE-1630-2 FC
Zoro #
G3369051
UPC #
095969831185
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
AA

Details

Item
Clamp On Earth Resistance Tester
Ground Resistance Range
0.025 to 1500 ohm
Resolution
4 ohm
Data Logging
32,760 Records
Jaw Capacity
1.5 in (40mm)
Battery Type
(4) AA Alkaline
Safety Rating
CAT III 1000V, CAT IV 600V
Display
LCD
Interface
Bluetooth(R)
Includes
Earth Ground Clamp, Hard Carrying Case, Quick Reference Guide, Safety Information Guide
Resistance Accuracy
+/-0.05 ohm, +/-1.5%
Counts
9999
Current Measurement Range
0.2mA to 40A
Auto Power Off
Yes
Communication Protocol
Bluetooth
Leakage Current Range
0.2 mA to 40 A
Number of Records Stored
32,760
Calibration Certificate
None
Maximum Operating Temperature
122 Degrees F
Minimum Operating Temperature
14 Degrees F
Dustproof
No
Bluetooth Compatible
Yes
Features
Logging Measurement: Saves up to 32,760 Measurements in Memory, Rugged: Heavy-Duty Clamp Jaw Stays in Alignment and Calibration on Tough Jobsites, Test the Grounding Components of Equipment in Hard-to-reach Spaces, Including Areas that are Indoors or Fully Paved and do not Permit Driving Auxiliary Test Stakes
Includes Batteries
Batteries Included
Resistance Testing Functions
Ground Loop Resistance
Leakage Current Measurement - Minimum
0.2 mA
Leakage Current Measurement - Maximum
40 A
Power Source
Battery
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Test Current
.2 mA
Calibration Certificate Included
No Certification Included
IP Rating
IP30
Data Output Type
Bluetooth
Maximum Earth Voltage
1,000 V
Ground Testing Functions
Stakeless
Display Screen Type
LCD
Tester Type
Ground Resistance Tester

Description

Clamp On Earth Resistance Tester, Bluetooth Compatible Yes, Calibration Certificate None, Dustproof No, Jaw Capacity 1.5 in (40mm), Leakage Current Range 0.2 mA to 40 A, Number of Records Stored 32,760, Resistance Accuracy +/-0.05 ohm, +/-1.5 Percent, Communication Protocol Bluetooth, Includes Batteries, Earth Ground Clamp, Hard Case, Quick Reference Guide, Safety Information Guide
