  9. Compact Handheld Oscilloscope, 20 MHz MHz, 2 Channels, 5.7 in Color TFT

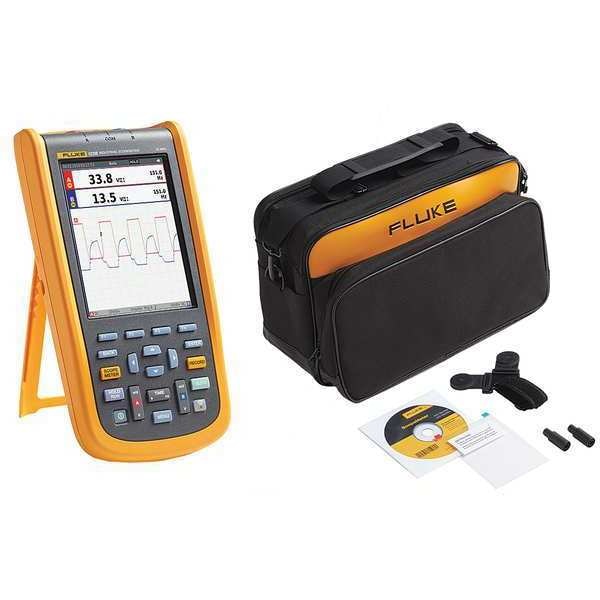

Fluke Compact Handheld Oscilloscope, 20 MHz MHz, 2 Channels, 5.7 in Color TFT FLUKE-123BS/WWG - main

Compact Handheld Oscilloscope, 20 MHz MHz, 2 Channels, 5.7 in Color TFT

  • Mfr # FLUKE-123BS/WWG

  • Zoro # G3782311

product price: $3,166.99
/ea
Free Shipping & Returns

Key Features

Bandwidth (MHz)
20 MHz
Channels
2
Display
5.7 in Color TFT
Max./Min. Sweep Speed
20 nsec/div to 60 sec/div
Battery Life
7 hr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLUKE-123BS/WWG
Zoro #
G3782311
UPC #
095969817080
Country of Origin
Romania

Dimensions

Bandwidth (MHz)
20 MHz
Max. Record Length
512 Min/Max Points Per Input
Manufacturers Warranty Length
3 yr
Memory Depth
400 Mpts
Bandwidth
20 MHz
Display Screen Length
5.7 in

Details

Item
Compact Handheld Oscilloscope
Channels
2
Display
5.7 in Color TFT
Max./Min. Sweep Speed
20 nsec/div to 60 sec/div
Battery Life
7 hr
Triggering Mode
Repeat
Includes
AC Power Adapter, Banana-to-BNC Adapters (Black), Black Test Lead Pair, Set Hook of Clips (Red, Blue), Shielded Test Leads with Black Ground Leads Pair, Switch Mode Power Supply, USB Angled Adapter, Wi-Fi USB Adapter
Battery Pack Recharge Time (Hr.)
4 hr
Battery Type
Li-Ion
Input Sensitivity
5 mV/div to 200 V/div
Sampling Rate
400 KS/s
Glitch Capture
Yes
Safety Rating
Cat IV 600V
Features
Connect Systems of Software Enabled, Connect-And-View Auto Trigger, Meter and Waveform Recording with Event Detect, Technology Automatically Sets Numeric Readings Based on Wave Shape
Interface
USB, Wireless
FFT Analysis
No
Persistence
No
Cursors & Zoom
No
Real Time Clock
Yes
Waveform / Measurement Stored
20
True RMS
Yes
Capacitance Measurements
Yes
Green Environmental Attribute
Product is Rechargeable
Cursors and Zoom
No
Calibration Certificate Type
Not Certified
Power Source
AC Adapter, Battery
Input Sensitivity - Minimum
5 mV/div
Battery Chemistry
Lithium Ion
CAT Safety Rating
CAT III 750V, CAT IV 600V
DC Current Measurement - Maximum
0.5 mA
Number of Channels
2
Includes Batteries
Batteries Included
Capacitance Measurement - Minimum
50 nF
IP Rating
IP51
Input Sensitivity - Maximum
200 V/div
Sound Level Measurement - Maximum
-3 dB
Digital Display Screen Type
TFT LCD
Body Style
Handheld
AC Voltage Measurement - Minimum
500 mV AC
AC Voltage Measurement - Maximum
1,100 V AC
DC Current Measurement - Minimum
500 nA
Battery Run Time
7 hr
AC Magnitude Calculation
True RMS
DC Voltage Measurement - Maximum
750 V DC
DC Voltage Measurement - Minimum
500 mV DC
Channel Source Isolation
Fully Isolated
Capacitance Measurement - Maximum
500 uF

Description

Compact Handheld Oscilloscope, Bandwidth (MHz) 20 MHz, 2 Channels, 5.7 in Color TFT Display, True RMS Yes, Sampling Rate 400 KS/s, 20 nsec/div to 60 sec/div Max./Min. Sweep Speed, 20 Waveform / Measurement Stored, Max. Record Length 512 Min/Max Points Per Input, FFT Analysis No, Cursors and Zoom No, Real Time Clock Yes, Repeat Triggering Mode, Input Sensitivity 5 mV/div to 200 V/div, No Persistence, Glitch Capture Yes, Capacitance Measurements Yes, USB, Wireless Interface

Restrictions

Hazardous material
