  9. Compact Handheld Oscilloscope, 40 MHz MHz, 2 Channels, 5.7 in Color TFT

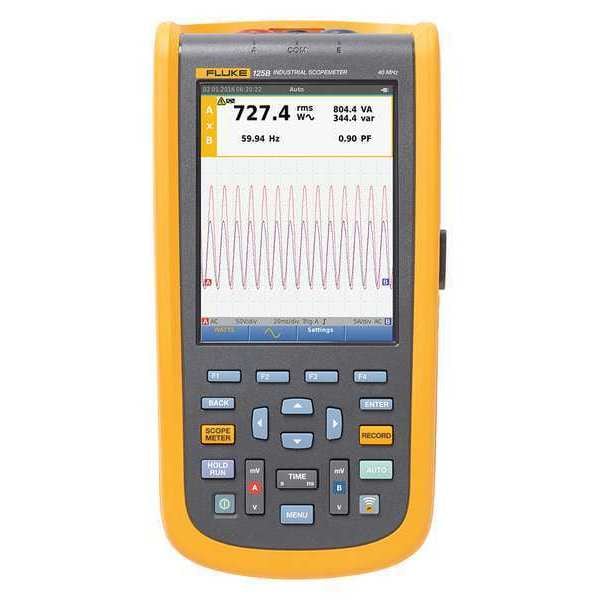

Fluke Compact Handheld Oscilloscope, 40 MHz MHz, 2 Channels, 5.7 in Color TFT FLUKE-125B/NA - main

Compact Handheld Oscilloscope, 40 MHz MHz, 2 Channels, 5.7 in Color TFT

  • Mfr # FLUKE-125B/NA

  • Zoro # G3782320

product price: $3,634.99
/ea
Free Shipping & Returns

Key Features

Channels
2
Bandwidth (MHz)
40 MHz
Display
5.7 in Color TFT
Max./Min. Sweep Speed
10 nsec/div to 60 sec/div
Input Sensitivity
5 mV/div to 200 V/div
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLUKE-125B/NA
Zoro #
G3782320
UPC #
095969817073
Country of Origin
Romania

Dimensions

Bandwidth (MHz)
40 MHz
Max. Record Length
512 Min/Max Points Per Input
Manufacturers Warranty Length
3 yr
Display Screen Length
5.7 in
Memory Depth
400 Mpts
Bandwidth
40 MHz

Details

Item
Compact Handheld Oscilloscope
Channels
2
Display
5.7 in Color TFT
Max./Min. Sweep Speed
10 nsec/div to 60 sec/div
Input Sensitivity
5 mV/div to 200 V/div
Includes
AC Power Adapter, Banana-to-BNC Adapters (Black), Set Hook of Clips (Red, Blue), Shielded Test Leads with Black Ground Leads Pair, Switch Mode Power Supply, Pair of Black Test Lead, USB Angled Adapter, Wi-Fi USB Adapter
Capacitance Measurements
Yes
Battery Life
7 hr
Glitch Capture
Yes
Real Time Clock
Yes
True RMS
Yes
Safety Rating
Cat IV 600V
Interface
USB, Wireless
Cursors & Zoom
Yes
Battery Pack Recharge Time (Hr.)
4 hr
Triggering Mode
Repeat
Sampling Rate
400 KS/s
FFT Analysis
Yes
Waveform / Measurement Stored
20
Persistence
No
Features
Connect Systems of Software Enabled, FLUKE 125 Series, Connect-And-View Auto Trigger, Industrial Network Bus Physical Layer Test, Meter and Waveform Recording with Event Detect, Power and Harmonics, Technology Automatically Sets Numeric Readings Based on Wave Shape
Battery Type
Li-Ion
Green Environmental Attribute
Product is Rechargeable
Cursors and Zoom
Yes
Number of Channels
2
Sound Level Measurement - Maximum
-3 dB
Input Sensitivity - Minimum
5 mV/div
DC Current Measurement - Maximum
0.5 mA
IP Rating
IP51
Capacitance Measurement - Maximum
500 uF
Calibration Certificate Type
Not Certified
DC Current Measurement - Minimum
500 nA
AC Voltage Measurement - Maximum
1,100 V AC
Input Sensitivity - Maximum
200 V/div
Battery Run Time
7 hr
Includes Batteries
Batteries Included
Body Style
Handheld
Power Source
AC Adapter, Battery
Digital Display Screen Type
TFT LCD
DC Voltage Measurement - Maximum
750 V DC
Capacitance Measurement - Minimum
50 nF
AC Magnitude Calculation
True RMS
CAT Safety Rating
CAT III 750V, CAT IV 600V
DC Voltage Measurement - Minimum
500 mV DC
Battery Chemistry
Lithium Ion
Channel Source Isolation
Fully Isolated
AC Voltage Measurement - Minimum
500 mV AC

Description

Compact Handheld Oscilloscope, Bandwidth (MHz) 40 MHz, 2 Channels, 5.7 in Color TFT Display, True RMS Yes, Sampling Rate 400 KS/s, 10 nsec/div to 60 sec/div Max./Min. Sweep Speed, 20 Waveform / Measurement Stored, Max. Record Length 512 Min/Max Points Per Input, FFT Analysis Yes, Cursors and Zoom Yes, Real Time Clock Yes, Repeat Triggering Mode, Input Sensitivity 5 mV/div to 200 V/div, No Persistence, Glitch Capture Yes, Capacitance Measurements Yes, USB, Wireless Interface

Restrictions

Hazardous material
