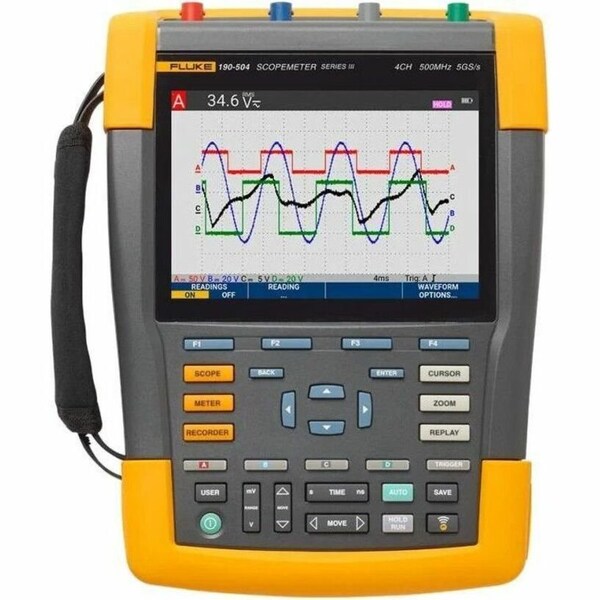

Handheld Oscilloscope, 500 MHz MHz, 4 Channels, 5.3 in x 3.5 in Full Color High Brightness LCD

  • Mfr # FLUKE-190-504-III-S
  • Zoro # G510437157
product price:
$
8,799.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Bandwidth (MHz)
500 MHz
Channels
4
Display
5.3 in x 3.5 in Full Color High Brightness LCD
FFT Analysis
Frequency Spectrum Using FFT Analysis
Real Time Clock
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FLUKE-190-504-III-S
Zoro #
G510437157
UPC #
195112021910
Country of Origin
Romania
Item
Handheld Oscilloscope
Channels
4
Display
5.3 in x 3.5 in Full Color High Brightness LCD
FFT Analysis
Frequency Spectrum Using FFT Analysis
Real Time Clock
Yes
Includes
(4) TRM50 Cable Terminators, (4) VPS410-II Probes, AC Power Adapter, Carrying Case, DWA-131 Wi-Fi Dongle, Hand Strap, Hanging Strap, Power Cord, USB Cable
Waveform / Measurement Stored
(1) 190-XX2 or (2) 190-X04 Mathematical Operations on 2 Input Channels (A and B, C and D): Add, Subtract, Multiply, Frequency Spectrum using FFT, X-Y-mode
Glitch Capture
8 ns Peak Detect on each Channel
Interface
USB
Calibration Certificate
No
Triggering Mode
Auto
Battery Type
Li-Ion
Persistence
Off/Short/Medium/Long/Infinite and Envelope Mode
True RMS
Yes
Input Sensitivity
2 mV to 100 V/div (Direct 1:1); 20 mV to 1000 V/div (With 10:1 Probe); 200 mV to 10 kV/div (With 100:1 Probe)
Cursors and Zoom
Ranges from Full Record Overview to Zoom in upto Sample Level
Sampling Rate
125 MS/s
Features
Automatically Capture, View and Analyze Complex Waveforms, Large, Bright Color Display for Easy In-The-Field Viewing, upto Four Independent Floating Isolated Inputs, upto 1000 V, USB and Wi-Fi Download for Analyzing Data with Flukeview(R) Software
Safety Rating
EN61010-1, Pollution Degree 2; IEC 61010-2-030: CAT IV 600 V/CAT III 1000 V
Input Sensitivity - Minimum
100 V/div
AC Voltage Measurement - Maximum
1,100 V
IP Rating
IP51
Basic DC Voltage Accuracy
+/-(1.50% +6 Counts)
Input Sensitivity - Maximum
100 V/div
Basic AC Voltage Accuracy
+/-(1.50% +10 Counts)
Standards
EN 61010-1, IEC 61010-2-030: CAT IV 600V/CAT III 1000V
AC Magnitude Calculation
True RMS
Includes Batteries
Batteries Included
Battery Chemistry
Lithium Ion
Time Base - Minimum
1 nsec/div
AC Voltage Measurement - Minimum
500 mV
Calibration Certificate Type
Not Certified
Battery Run Time
7 hr
Body Style
Handheld
AC Voltage Measurement Resolution
100 mV
Power Source
Battery
Number of Channels
4
Channel Source Isolation
Fully Isolated
Time Base - Maximum
4 sec/div
Digital Display Screen Type
LCD
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Power Source - TS Only
Battery
Power Source - old
Battery

Description

Handheld Oscilloscope, Bandwidth (MHz) 500 MHz, 4 Channels, 5.3 in x 3.5 in Full Color High Brightness LCD Display, True RMS Yes, Sampling Rate 125 MS/s, (1) 190-XX2 or (2) 190-X04 Mathematical Operations on 2 Input Channels (A and B, C and D): Add, Subtract, Multiply, Frequency Spectrum using FFT, X-Y-mode Waveform / Measurement Stored, Max. Record Length 10k/ Channel, 30,000 Points per Channel (Scope Record mode), FFT Analysis Frequency Spectrum Using FFT Analysis
