  9. Digital Clamp Meter, Backlit LCD, 200 A, 0.7 in (18 mm) Jaw Capacity

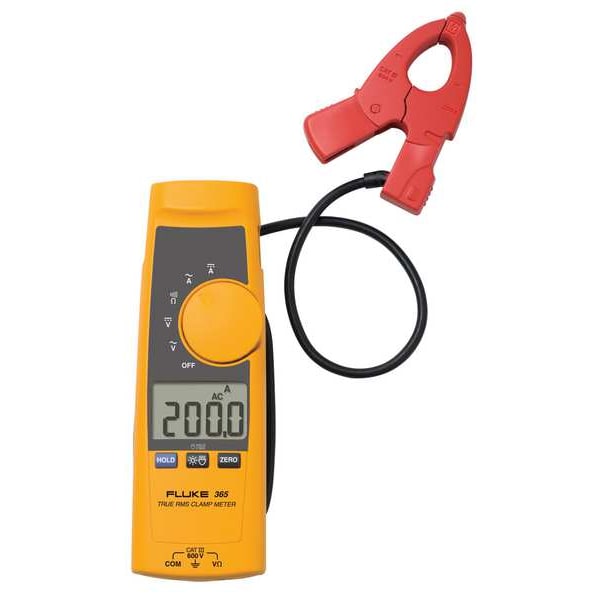

Fluke Digital Clamp Meter, Backlit LCD, 200 A, 0.7 in (18 mm) Jaw Capacity FLUKE-365 - main

Digital Clamp Meter, Backlit LCD, 200 A, 0.7 in (18 mm) Jaw Capacity

  • Mfr # FLUKE-365

  • Zoro # G1283283

product price: $389.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
200
Clamp Meter Jaw Style
Detachable
Max. DC Volts
600 V
Max. Ohms
6,000
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLUKE-365
Zoro #
G1283283
UPC #
095969569552
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr
Battery Size
AA
Overall Width
2.6 in
Overall Height
1.8 in

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
200
Clamp Meter Jaw Style
Detachable
Max. DC Volts
600 V
Max. Ohms
6,000
Jaw Capacity
0.7 in (18 mm)
Safety Rating
CAT III 600V, CAT IV 300V
Display
Backlit LCD
Jaw Opening
0.7 in
Max. DC Amps
200
Max. AC Volts
600 V
Calibration Frequency
55 to 60 Hz
Audible Continuity
Yes
Auto Power Off
Yes
Battery Type
AA
Data Hold
Yes
Operating Temp.
14 Degrees to 122 Degrees F
Counts
6,000
Special Features
State of the Art Signal Processing
Includes
900 mm Cable Length Detachable Jaw, Instruction Manual, Soft Carrying Case, TL76 Test Leads
AC Current Accuracy
+/-2.0% + 5 Digits
Auto Ranging
Yes
Standards
ANSI/ISA S82.02.01:2004, CAN/CSA-C22.2 No 61010-1-04, CE, CSA, IEC/EN61010-1:2001
AC Response
TRMS
Data Logging
No
Calibration Certificate Included
No
Display Type
Backlit LCD
Intrinsically Safe
No
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Resistance
AC Response Calculation
TRMS
AC Current Measurement Resolution
0.1 A
AC Voltage Measurement Resolution
0.1 V
Maximum AC Current Measurement
200 A
DC Voltage Measurement Resolution
0.1 V
Instrument Counts
6,000
Basic DC Current Accuracy
2% +/- 5 digits
DC Current Measurement Resolution
0.1 A
Basic AC Current Accuracy
2 % +/-5 digits (45 - 65 Hz)2.5 % +/-5 digits (65 - 400 Hz)
Dustproof
No
Jaw Style
Detachable-Jaw
Bluetooth Compatible
No
Maximum Resistance Measurement
6,000 ohm
Basic AC Voltage Accuracy
1.5 % +/-5 digits (45 - 400 Hz)
Maximum Storage Temperature
140 Degrees F
Maximum DC Current Measurement
200 A
Minimum Operating Temperature
14 Degrees F
Maximum Operating Temperature
122 Degrees F
Basic DC Voltage Accuracy
1 % +/-5 digits
Thermal Imaging
No
Batteries Included
Yes
Maximum DC Voltage Measurement
600 V
Maximum AC Voltage Measurement
600 V
Resistance Measurement Accuracy
1 % +/-5 digits
Removable Screen
No
Waterproof
No
Current Leakage Testing
No
Resistance Measurement Resolution
0.1 ohm

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, CAT IV 300V, AC Response Calculation TRMS, Maximum AC Current Measurement 200 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 200 A, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging No, Thermal Imaging No, Removable Screen No
