Shop IDEAL

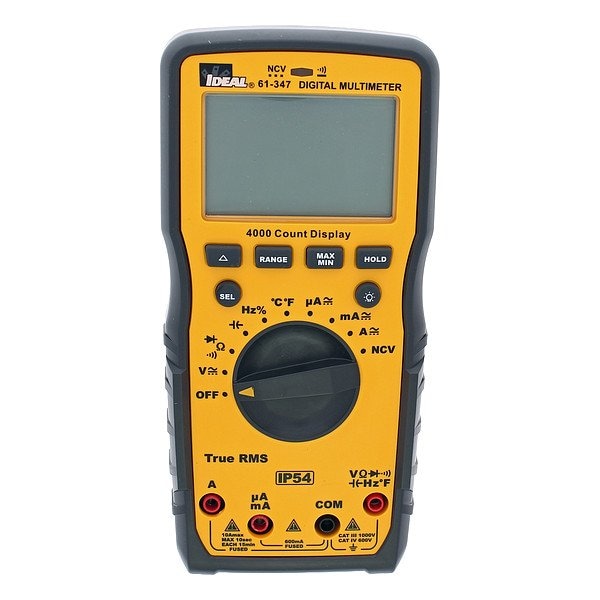

DigitalMultimeter, TRMS, 10A, 1000VAC/DC

  • Mfr # 61-347

  • Zoro # G922768580

product price:
$
89.19
/ea
Sold in multiples of 4 for $356.76

Key Features

Auto Ranging
Yes
Frequency Measurement Accuracy
+/-0.5%
Minimum Frequency Measurement
10 Hz
Basic DC Current Accuracy
+/-2.5%
Battery Voltage
1.5 V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
61-347
Zoro #
G922768580
UPC #
783250810529
Country of Origin
China
Auto Ranging
Yes
Frequency Measurement Accuracy
+/-0.5%
Minimum Frequency Measurement
10 Hz
Basic DC Current Accuracy
+/-2.5%
Battery Voltage
1.5 V
Auto Power Off
Yes
Maximum Storage Temperature
140 Degrees F
Resistance Measurement Accuracy
+/-1.5%
Minimum Operating Temperature
32 Degrees F
Item
Digital Multimeter
Maximum AC Current Measurement
10 A
Minimum Capacitance Measurement
600 nF
Instrument Counts
6,000
Maximum AC Voltage Measurement
1,000 V
Special Features
Built-In Probe Tip Holders and Hanging Strap Clip Allows Safer, Easier Measurement, Industrial Grade Boot Enhances Grip, Allows Meter to Withstand a 6.6 ft (2m) Drop, Large Easy to Read Backlit Display, Allows for Safer/Faster Work in Poorly Lit Environment, Lead Position Warning and Open Fuse Indication
Minimum DC Current Measurement
600 uA
AC Current Measurement Resolution
0.1 uA
Duty Cycle
Duty Cycle Test Included
Fuse Access
Yes
AC Voltage Measurement Resolution
0.1 mV
Minimum Storage Temperature
14 Degrees F
Voltage Units
V
Diode Test
Yes
Maximum Capacitance Measurement
6,000 uF
Minimum Temperature Measurement
-40 Degrees F
Min-Max-Avg Button Included
Yes
Capacitance Measurement Accuracy
+/-5%
Basic DC Voltage Accuracy
+/-1.5%
Maximum Frequency Measurement
10 kHz
Maximum DC Current Measurement
10 A
Basic AC Voltage Accuracy
+/-1.3%
Weight
1.15 lb
Batteries Included
Yes
Minimum/Maximum Memory
Min/Max
Audible Continuity
Yes
Basic AC Current Accuracy
+/-2.5%
Maximum Resistance Measurement
60 megaohm
Minimum Resistance Measurement
600 ohm
DC Voltage Measurement Resolution
0.1 V
Display Type
Backlit LCD
Resistance Measurement Resolution
0.1 ohm
Minimum DC Voltage Measurement
600 mV
Minimum AC Current Measurement
600 uA
Data Hold
Yes
Battery Access
Yes
Minimum AC Voltage Measurement
600 mV
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F, Temperature K
Temperature Measurement Resolution
1 Degrees F
Frequency Measurement Resolution
0 Hz
Capacitance Measurement Resolution
0.1 nF
IP Rating
IP52
AC Response Calculation
TRMS
DC Current Measurement Resolution
0.1 uA
Temperature Measurement Accuracy
+/-2.0%
Maximum Temperature Measurement
1,832 Degrees F
Includes Auto Sensing
No Auto Sensing Included
Standards
cULus
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Current Units
A
Includes
Batteries, Type K Thermocouple, Soft Carrying Case, Test Leads
Maximum DC Voltage Measurement
1,000 V
Bar Graph Included
No

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-1.3 Percent, Basic DC Voltage Accuracy +/-1.5 Percent, Data Hold Yes, Basic DC Current Accuracy +/-2.5 Percent, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000
