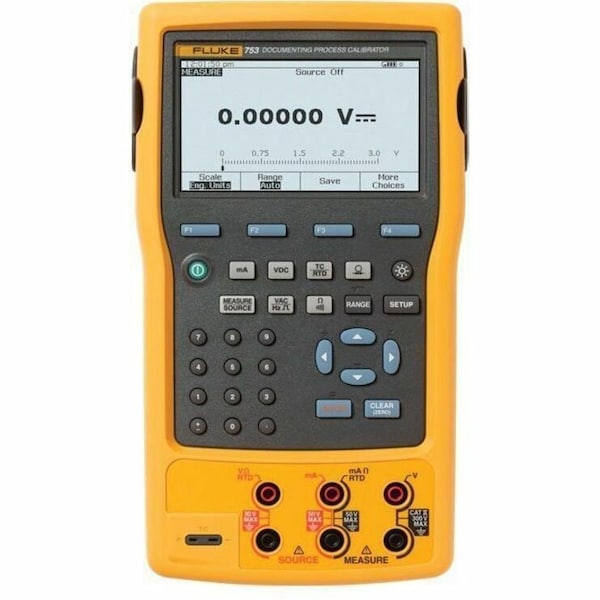

Documenting Process Calibrator, 753 Series, Multifunction, 0 to 300V AC/DC, USB

  • Mfr # Fluke-753

  • Zoro # G4120532

product price:
$
10,238.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Includes
(2) AC280 Hook Clips, (3) Extended Tooth, (3) TP220 Test Probes, Alligator Clips, Battery Charger, Carrying Case, USB Cable
Display
Graphical
Standards
ASNI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1-92, EN 610-1:1993, UL3111
Interface
USB
Loop Supply Voltage
26 V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
Fluke-753
Zoro #
G4120532
UPC #
095969590402
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr

Details

Item
Multifunction Calibrator
Includes
(2) AC280 Hook Clips, (3) Extended Tooth, (3) TP220 Test Probes, Alligator Clips, Battery Charger, Carrying Case, USB Cable
Display
Graphical
Standards
ASNI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1-92, EN 610-1:1993, UL3111
Interface
USB
Loop Supply Voltage
26 V
RTD Type
Cu10 (427), Ni120 (672), Pt100 (385), Pt100 (3916), Pt100 (3926), Pt1000 (385), Pt200 (385), Pt500 (385)
Powered By
Rechargable Battery Pack
Current Measurement Range
0 to 110mA DC
RTD Temperature Range
-200 Degrees to 800 Degrees C
Basic DC Accuracy
+/- 0.05% + 0.05V
Insulation Category
Cat II 300V
Intrinsically Safe
No
Frequency Source Range
0 to 50 kHz
Thermocouple Temperature Range
-250 Degrees to 2500 Degrees C
Thermocouple Type
B, BP, C, E, J, K, L, N, R, S, T, U, XK
Pressure Modules
29 Ranges
Resistance Measurements
0 to 10 kilohm
Resistance Source
0 to 10 kilohm
Max. Loop Current
25 mA
Frequency Measurement Range
0 to 50 kHz
Voltage Measurement Range
0 to 300V AC/V DC
Calibration Certificate
NIST
Source Voltage
0 to 15V DC
Measurement Functions
Current, Frequency, Resistance, TC and RTD, Voltage (AC and DC)
Source Current
0 to 22mA DC
External Pressure Range
Dependent On Pressure Module
Frequency Measurement - Maximum
50 kHz
RTD Temperature - Maximum
1,472 Degrees F
Resistance Measurement - Maximum
10 kiloohm
RTD Temperature - Minimum
-328 Degrees F
Source Frequency - Maximum
50 kHz
Loop Current - Maximum
25 mA
Source Resistance - Maximum
10 kiloohm
Calibration Certificate Type
NIST
Source Voltage - Minimum
1 V
IP Rating
IP52
Source Resistance - Minimum
1 kiloohm
Frequency Measurement - Minimum
11.01 kHz
Parameters Measured
DC Current, DC Voltage, Frequency, Resistance, RTD, TC
Current Measurement - Maximum
110 mA
Thermocouple Temperature - Minimum
482 Degrees F
Voltage Measurement - Minimum
3 V AC/DC
Voltage Measurement - Maximum
300 V AC/DC
Includes Batteries
Batteries Included
Source Current - Maximum
22 mA
Thermocouple Temperature - Maximum
1,472 Degrees F
Source Current - Minimum
0 mA
Current Measurement - Minimum
30 mA
Intrinsic Safety
Not Specified Intrinsically Safe
Source Frequency - Minimum
22 kHz
Resistance Measurement - Minimum
1 kiloohm
Source Voltage - Maximum
15 V
Battery Chemistry
Lithium Ion
Digital Display Screen Type
LCD

Description

The FLUKE 753 Documenting Process Calibrator is a multifunction calibrator for measuring and sourcing common process signals. It measures current, voltage, frequency, resistance, RTD, and thermocouple inputs, and it can source current, voltage, frequency, and resistance for calibration and verification tasks. This unit has a graphical LCD display, USB interface, rechargeable lithium-ion battery pack, and support for external pressure modules across 29 ranges, with pressure range dependent on the module used.

Key Features of the FLUKE 753 Documenting Process Calibrator:

  • Basic DC accuracy: +/- 0.05% + 0.05V for DC measurements.
  • Measurement functions: Current, frequency, resistance, TC and RTD, and AC/DC voltage.
  • Voltage measurement range: 0 to 300V AC/DC.
  • Current measurement range: 0 to 110 mA DC.
  • Frequency measurement and source range: 0 to 50 kHz.
  • Resistance measurement and source range: 0 to 10 kilohm.
  • Source output: 0 to 22 mA DC current and 0 to 15V DC voltage.
  • Loop capabilities: 26 V loop supply with maximum loop current of 25 mA.
  • Temperature input support: RTD range from -200 to 800 degrees C and thermocouple range from -250 to 2500 degrees C.
  • Supported RTD types: Cu10 (427), Ni120 (672), Pt100 (385), Pt100 (3916), Pt100 (3926), Pt1000 (385), Pt200 (385), and Pt500 (385).
  • Supported thermocouple types: B, BP, C, E, J, K, L, N, R, S, T, U, and XK.
  • Display and interface: Graphical LCD with USB connectivity.
  • Ingress protection and category rating: IP52 and CAT II 300V.
  • Included accessories: (2) AC280 hook clips, (3) extended tooth, (3) TP220 test probes, alligator clips, battery charger, carrying case, USB cable, and batteries.
  • Calibration certificate: NIST.
