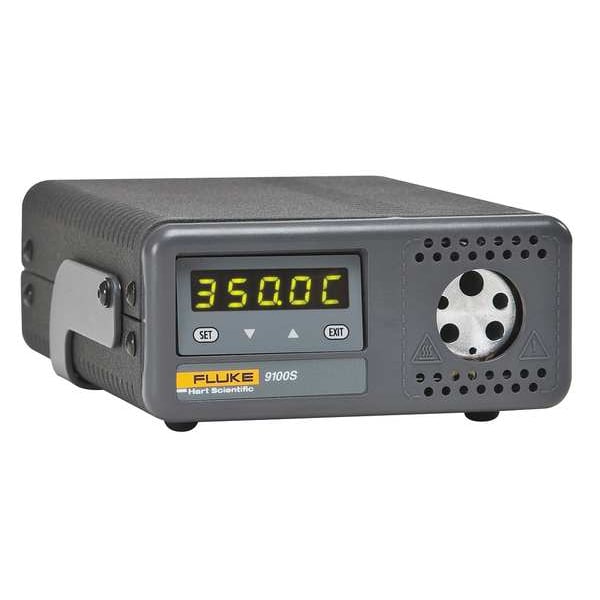

Fluke Dry Well Calibrator, 1/16-1/4 In Hole 9100S-A-156 - main

Dry Well Calibrator, 1/16-1/4 In Hole

  • Mfr # 9100S-A-156

  • Zoro # G8002522

product price: $3,843.99
/ea
Free Shipping & Returns

Key Features

Temp. Range
35 Degrees to 375 Degrees C, 95 Degrees to 707 Degrees F
Width
4 9/10 in
Includes
Instructions
Well Depth
4 in
Height
2 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9100S-A-156
Zoro #
G8002522
UPC #
095969017831
Country of Origin
United States

Dimensions

Width
4 9/10 in
Well Depth
4 in
Height
2 1/4 in
Stem Hole Dia.
0.0625 in, 0.125 in, 0.15625 in, 0.1875 in and 0.25 in Probes
Depth
6 7/64 in
Overall Width
4.91 in
Well Size
4 in D Well
Overall Height
2.25 in
Overall Dimensions
2 1/4 in H x 4 29/32 in W x 6 7/64 in D
For Stem Diameter
0.0625 in, 0.125 in, 0.15625 in, 0.1875 in, 0.25 in
Overall Depth
6.11 in

Details

Item
Dry Well Calibrator
Temp. Range
35 Degrees to 375 Degrees C, 95 Degrees to 707 Degrees F
Includes
Instructions
Removable Inserts
No
Temp. Stability
+/-0.07 Degrees C at 50 Degrees C; +/-0.1 Degrees C at 100 Degrees C; +/-0.3 Degrees C at 375 Degrees C
Temp. Accuracy
+/- 0.25 Degrees C at 100 Degrees C, +/- 0.25 Degrees C at 50 Degrees C, +/- 0.5 Degrees C at 375 Degrees C, +/-0.45 Degrees F at 122 Degrees F, +/-0.9 Degrees F at 707 Degrees F
Calibration Certificate
NIST
Interface
RS-232
Power Required
115V AC ( +/-10%), 55/65 Hz
Calibrator Weight
2 lb
With Process Connections
No
Stability
+/-0.07 Degrees C at 50 Degrees C, +/-0.1 Degrees C at 100 Degrees C, +/-0.3 Degrees C at 375 Degrees C
Display Resolution
0.1 Degrees
Stabilization Time
5 min
Hot Block Temperature Range
95 to 707 F, 35 to 375 C
Interchangeable Insert
No
Typical Uniformity
+/-0.2 Degrees C
Temperature Accuracy
+/-0.25 Degrees C (at 100 Degrees C), +/-0.25 Degrees C (at 50 Degrees C), +/-0.45 Degrees F (at 122 Degrees F), +/-0.5 Degrees C (at 375 Degrees C), +/-0.9 Degrees F (at 707 Degrees F)
Calibrator Type
Handheld Dry-Well
Calibration Details
Data at 50 Degrees C, 100 Degrees C, 150 Degrees C, 200 Degrees C, 250 Degrees C, 300 Degrees C and 375 Degrees C
Typical Cooling Time
14 min (375 Degrees to 100 Degrees C)
Brand and Series
Fluke 9100S
Calibrator Accuracy
+/-0.25 Degrees C at 100 Degrees C, +/-0.25 Degrees C at 50 Degrees C, +/-0.5 Degrees C at 375 Degrees C
Power Source
Plug-In
Includes NIST-Traceable Certificate
Yes
Set Point Style
Adjustable
Typical Heating Time
9.5 min (35 Degrees to 375 Degrees C)
Power Source Details
115V AC, 230V AC
Temperature Range
95 Degrees to 707 Degrees F/35 Degrees to 375 Degrees C

Description

Dry Well Calibrator, Handheld Dry-Well, Fluke 9100S, 95 Degrees to 707 Degrees F/35 Degrees to 375 Degrees C, Calibration Details Data at 50 Degrees C, 100 Degrees C, 150 Degrees C, 200 Degrees C, 250 Degrees C, 300 Degrees C and 375 Degrees C, Hot Block Temperature Range 95 to 707 F, 35 to 375 C, Interface RS-232, 2 1/4 in H x 4 29/32 in W x 6 7/64 in D
