Shop FLUKE

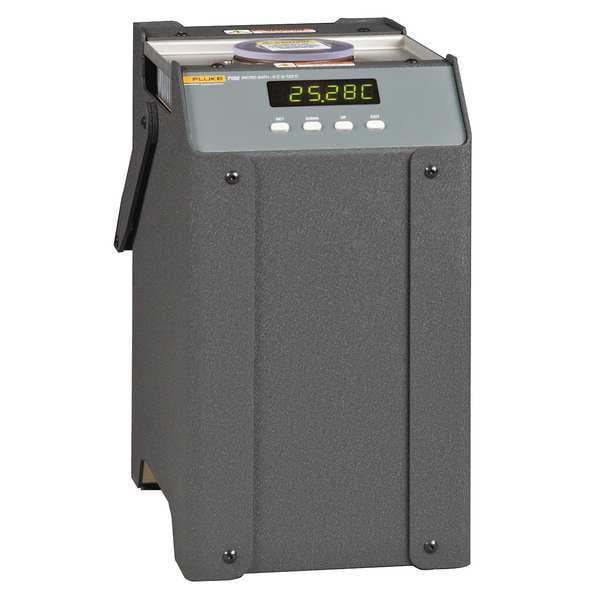

Drywell, Temperature Calibrator

  • Mfr # 7103-156

  • Zoro # G8069966

product price:  $12,877.99
/ea
Free Shipping & Returns

Key Features

Includes
7103 Micro-Bath, Transport/Pour Lid, Probe Basket, Stir Bar, Power Cord, User's Guide
Display
LED
Interface
RS-232
Accuracy
+/-0.25 Degrees C
Calibration Certificate
NIST Traceable
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7103-156
Zoro #
G8069966
UPC #
095969128278
Country of Origin
United States

Dimensions

Overall Dimensions
13 13/64 in H x 9 in W x 10 1/2 in D
Tank Size
2 1/2 in Dia x 5 1/2 in D Tank, 1 29/32 in Working Diameter
Overall Height
13.2 in
Overall Depth
10.5 in
Tank Depth
5.5 in
Overall Width
9 in
Tank Opening Diameter
2.5 in
Working Area Width
1.90625 in
Working Area Height
1.90625 in

Details

Item
Thermometer Calibrator
Includes
7103 Micro-Bath, Transport/Pour Lid, Probe Basket, Stir Bar, Power Cord, User's Guide
Display
LED
Interface
RS-232
Accuracy
+/-0.25 Degrees C
Calibration Certificate
NIST Traceable
Agency Compliance
CE, ROHS, WEEE
Power Source
Plug-In
Common Fluid Compatibility
Mineral Oil, Silicone Oil, Water (Distilled)
Tank Opening
2.5 in
Temperature Range
-30 Degrees to 125 Degrees C
Display Resolution
0.01 Degrees
Calibration Details
Data at -25 Degrees C, 0 Degrees C, 25 Degrees C, 50 Degrees C, 75 Degrees C, 100 Degrees C, and 125 Degrees C
Stability
+/-0.03 Degrees C at -25 Degrees C (Oil 5010), +/-0.05 Degrees C at 125 Degrees C (Oil 5010)
Working Area
1 29/32 in x 1 29/32 in
Voltage
115 V AC, 230 V AC
Typical Uniformity
+/-0.02 Degrees C
Typical Cooling Time
45 min (25 Degrees to -25 Degrees C)
Fluid Volume
1 L
With Process Connections
No
Calibrator Weight
22 lb
Power Source Details
94 to 234V AC
Includes NIST-Traceable Certificate
Yes
Calibrator Type
Portable Calibration Baths
Typical Heating Time
35 min (25 Degrees to 100 Degrees C)
Brand and Series
Fluke 7103
Thermocouple Temperature Celsius - Maximum
125 Degrees C
Power Source - TS Only
Plug-In
RTD Temperature Celsius - Maximum
125 Degrees C
Thermocouple Temperature Fahrenheit - Maximum
257 Degrees F
Thermocouple Temperature Celsius - Minimum
-30 Degrees C
Series
7103
RTD Temperature Fahrenheit - Maximum
257 Degrees F
Thermocouple Temperature Fahrenheit - Minimum
-22 Degrees F
RTD Temperature Celsius - Minimum
-30 Degrees C
RTD Temperature Fahrenheit - Minimum
-22 Degrees F
Includes Process Connections
No

Description

Thermometer Calibrator, Fluke 7103, Portable Calibration Baths, Includes NIST-Traceable Certificate Yes, -30 Degrees to 125 Degrees C, 13 13/64 in H x 9 in W x 10 1/2 in D, Fluid Volume 1 L, Tank Size 2 1/2 in Dia x 5 1/2 in D Tank, 1 29/32 in Working Diameter
