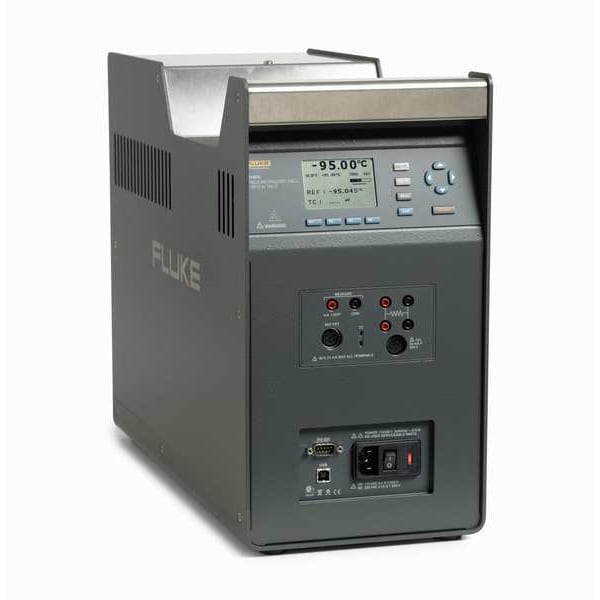

Drywell, Temperature Calibrator

Mfr # 9190A-D-P-156
Zoro # G7863965

$27,897.99

Free Shipping & Returns

Key Features

Includes

6 ft Main Power Cord, 9190 Insert D, 9930 Interface-It Calibration Software and Users Guide, Getting Started Manual, Insert Removal Tool, Product CD, Report of Calibration and Calibration Label, USB Cable, Well Insulator Cap

Display

LCD

Standards

IEC 61010-1, Installation Category II, Pollution degree 2, IEC 61326-1: Basic

Interface

RS-232, USB Cable

Loop Supply Voltage

24V DC

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

9190A-D-P-156

Zoro #

G7863965

UPC #

095969635622

Country of Origin

United States

Dimensions

Well Depth

6.31 in

Overall Width

8 in

Well Size

1 3/16 in Dia x 6 5/16 D Well

For Stem Diameter

(2) 3 mm, (2) 4 mm, (2), 6 mm

Overall Height

18.81 in

Well Diameter

1.19 in

Overall Dimensions

18 13/16 in H x 8 in W x 14 29/32 in D

Overall Depth

14.91 in

Details

Item

Drywell

Includes

Display

LCD

Standards

IEC 61010-1, Installation Category II, Pollution degree 2, IEC 61326-1: Basic

Interface

RS-232, USB Cable

Loop Supply Voltage

24V DC

Accuracy

+/-0.2 Degrees C Full Range

RTD Type

4 Wire, 3 Wire, 2 Wire

Application

Blood Banks, Cold Rooms, Freeze Dryers, Laboratory Refrigerators, Medical Freezers, Sterilizers (Autoclaves)

RTD Temperature Range

-139 Degrees to 284 Degrees F (-95 Degrees to 140 Degrees C)

Thermocouple Type

C, E, J, K, L, M, N, R, S, T, U

Max. Loop Current

4 to 20mA

Agency Compliance

EU Directives, CSA, Australian EMC Requirements

Thermocouple Temperature Range

-139 Degrees to 284 Degrees F (-95 Degrees to 140 Degrees C)

Calibration Certificate

yes

Power Source

Plug-In

Display Temperature Accuracy

+/-0.2 Degrees C

Calibrator Type

Field Metrology Well

Thermocouple Temperature Range C

-95 Degrees to 140 Degrees C

Typical Cooling Time

80 min (23 Degrees to -90 Degrees C), 90 min (23 Degrees to -95 Degrees C), 60 min (140 Degrees to 23 Degrees C)

Current mA Characteristics

0.02% + 0.002 mA Accuracy/4 to 22 mA, 4 to 24 mA Range

RTD Temperature Range C

-95 Degrees to 140 Degrees C

RTD Temperature Range F

-139 Degrees to 284 Degrees F

Stability

+/-0.015 Degrees C

Reference Input Temperature Characteristics

+/-0.010 Degrees C at -95 Degrees C, +/-0.013 Degrees C at -25 Degrees C, +/-0.015 Degrees C at 0 Degrees C, +/-0.020 Degrees C at 50 Degrees C, +/-0.025 Degrees C at 140 Degrees C

Stabilization Time

15 min

Typical Heating Time

40 min (-95 Degrees to 140 Degrees C)

Power Source Details

100 to 115V, 200 to 230V

Sensor Type

RTD, Thermocouple

For Thermocouple Type

Type C, Type E, Type J, Type K, Type L, Type M, Type N, Type R, Type S, Type T, Type U

Brand and Series

Fluke 9190A

Calibrator Weight

35 lb

For RTD Type

2-Wire, 3-Wire, 4-Wire, Ni-120, PT-100 (385), PT-100 (3926), PT-100 (JIS)

Reference Junction Temperature Characteristics

+/- 0.35 Degrees C Accuracy at Ambient Temperature of 13 Degrees to 33 Degrees C

Reference Input Resistance Characteristics

+/--0.0025 ohm Accuracy (0 to 42 ohm), +/-60 ppm of Reading Accuracy (42 to 400 ohm)

Probe Connection Types

(1) 4-Terminal RTD Input, (1) Miniature Connectors (ASTM E1684)

Thermocouple Temperature Range F

-139 Degrees to 284 Degrees F

Resistance Sensing Current Characteristics

0.02% at 0.002 mA; Cal 4-22 mA, Spec 4-24 mA

Thermocouple mV Characteristics

0.025% + 0.01 mV at -10 to 75 mV

With Process Connections

Yes

Display Resolution

0.01 Degrees

Thermocouple Temperature Accuracy Characteristics

Type C: +/-1.00 Degrees C at 140 Degrees C, Type E: +/-0.60 Degrees C at 140 Degrees C, Type J: +/-0.70 Degrees C at 140 Degrees C, Type K: +/-0.75 Degrees C at 140 Degrees C, Type L: +/-0.65 Degrees C at 140 Degrees C, Type M: +/-0.65 Degrees C at 140 Degrees C, Type N: +/-0.75 Degrees C at 140 Degrees C, Type R: +/-1.60 Degrees C at 140 Degrees C, Type S: +/-1.60 Degrees C at 140 Degrees C, Type T: +/-0.60 Degrees C at 140 Degrees C, Type U: +/-0.70 Degrees C at 140 Degrees C

Calibrator Accuracy

+/-0.2 Degrees C

Typical Uniformity

+/-0.05 Degrees C

Temperature Range

-139 Degrees to 284 Degrees F/-95 Degrees to 140 Degrees C

4-Wire Device Resistance Characteristics

Range: 0 to 400 ohms/Accuracy: +/-0.0025 ohms (0 to 42 ohms), +/-60 ppm of Reading (42 to 400 ohms)

Number of Set Points

Variable

Single Well/Dual Well

Single Well

Set Point Style

Adjustable

Temperature Accuracy

+/-0.2 Degrees C

Description

Drywall Temperature Calibrator, Field Metrology Well, Fluke 9190A, -139 Degrees to 284 Degrees F/-95 Degrees to 140 Degrees C, Temperature Set Points -95 Degrees C, 140 Degrees C, Interface RS-232, USB Cable, Number of Set Points Variable, 18 13/16 in H x 8 in W x 14 29/32 in D
