Fault Locator
Mfr # FLUKE-GFL-1500
Zoro # G516554032
product price:Â $7,940.99
/ea
Free Shipping & Returns
Key Features
Includes

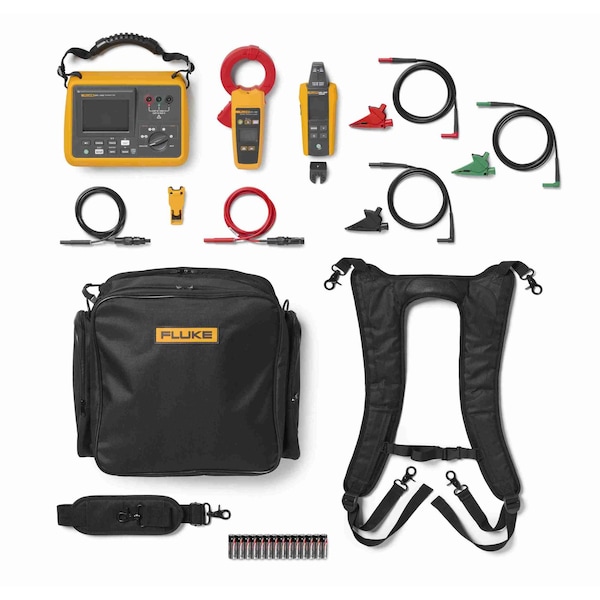

1500 V Rated Test Leads, Alligator Clips, Backpack Style Shoulder Strap, GFL-1500 Current Clamp, GFL-1500 Receiver, GFL-1500 Transmitter, MC4 Test Leads, MC4 Unlocking Tool, Soft Carrying Case
Features
Non-contact Active Ground Fault Locator for 1500 V Solar PV Systems
Power Source
Battery
Frequency Measurement Accuracy
0.01 %
Transmitter Power Output
120 W
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
FLUKE-GFL-1500
Zoro #
G516554032
UPC #
0195112130438
Country of Origin
Serbia
Dimensions
Manufacturers Warranty Length
1 yr
Maximum Fault Locating Depth
20 ft
Receiver Dimensions
7.2 x 2.95 x 1.69 in
Maximum Fault Locating Length
10 km
Transmitter Dimensions
9.6 x 7.0 x 4.2 in
Battery Size
AA
Details
Item
Fault Locator
Includes
1500 V Rated Test Leads, Alligator Clips, Backpack Style Shoulder Strap, GFL-1500 Current Clamp, GFL-1500 Receiver, GFL-1500 Transmitter, MC4 Test Leads, MC4 Unlocking Tool, Soft Carrying Case
Features
Non-contact Active Ground Fault Locator for 1500 V Solar PV Systems
Power Source
Battery
Frequency Measurement Accuracy
0.01 %
Transmitter Power Output
120 W
Number of Batteries Required
14
CAT Safety Rating
CAT IV 600V
Inductive Frequencies
1475 Hz
IP Rating
IP54
Alert Type
Digital Display, Light, Audible
Testing Functions
Fault Current
Display Screen Type
LCD
Calibration Certificate Included
No Certification Included
Special Features
Audio-Visual Feedback, Multiple Diagnostic Functions, Non-Contact Signal Tracing Pinpoints Active Ground Faults in Solar PV Systems
Maximum Output Voltage
1,500 V DC
Transient Voltage Protection
8,000V
Display Type
Digital
Description
Fault Locator, Alert Type Digital Display, Light, Audible, Battery Chemistry Alkaline, Battery Size AA, CAT Safety Rating CAT IV 600V, Compatible Receiver Not Applicable, Compatible Transmitter Not Applicable, Display Screen Type LCD, Display Type Digital, Features Non-contact Active Ground Fault Locator for 1500 V Solar PV Systems, Frequency Measurement Accuracy 0.01 Percent, Frequency Measurement Resolution Not Applicable
Restrictions
Hazardous material
