Fault Locator
Mfr # FLUKE-GFL-1500/FPC
Zoro # G916520897
product price:Â $8,740.99
/ea
Free Shipping & Returns
Key Features
Number of Batteries Required
14
Inductive Frequencies
1476 Hz
Battery Size
AA
Manufacturers Warranty Length
2 yr
Frequency Measurement Accuracy
0.01 %
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
FLUKE-GFL-1500/FPC
Zoro #
G916520897
UPC #
0195112143698
Country of Origin
Serbia
Dimensions
Battery Size
AA
Manufacturers Warranty Length
2 yr
Receiver Dimensions
7.2 x 2.95 x 1.69 in
Maximum Fault Locating Depth
20 ft
Maximum Fault Locating Length
10 km
Transmitter Dimensions
9.6 x 7.0 x 4.2 in
Details
Item
Fault Locator
Number of Batteries Required
14
Inductive Frequencies
1476 Hz
Frequency Measurement Accuracy
0.01 %
Display Screen Type
LCD
Features
Non-contact Active Ground Fault Locator for 1500 V Solar PV Systems
Testing Functions
Fault Current
Maximum Output Voltage
1,500 V DC
IP Rating
IP55
Includes

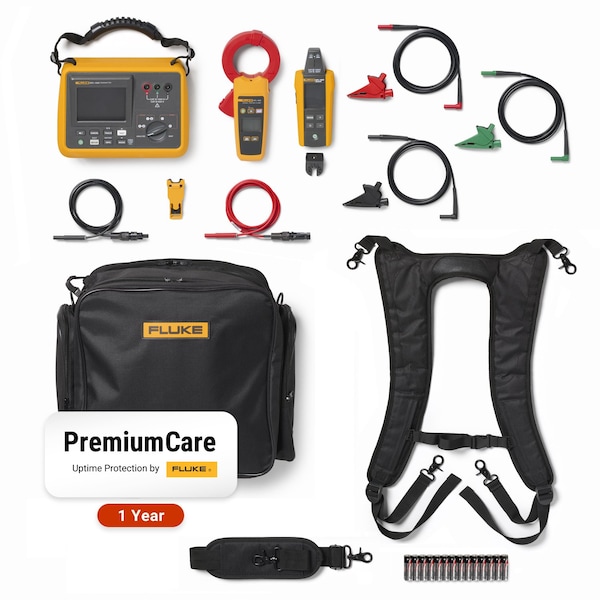

1 yr Fluke Permium Care, 1500 V Rated Test Leads, Alligator Clips, Backpack Style Shoulder Strap, GFL-1500 Current Clamp, GFL-1500 Receiver, GFL-1500 Transmitter, MC4 Test Leads, MC4 Unlocking Tool, Soft Carrying Case
Special Features
Audio-Visual Feedback, Multiple Diagnostic Functions, Non-Contact Signal Tracing Pinpoints Active Ground Faults in Solar PV Systems
CAT Safety Rating
CAT IV 600V
Display Type
Digital
Transmitter Power Output
120 W
Power Source
Battery
Transient Voltage Protection
8,000V
Alert Type
Digital Display, Light, Audible
Description
Fault Locator, Alert Type Digital Display, Light, Audible, Battery Chemistry Alkaline, Battery Size AA, CAT Safety Rating CAT IV 600V, Compatible Receiver Not Applicable, Compatible Transmitter Not Applicable, Display Screen Type LCD, Display Type Digital, Features Non-contact Active Ground Fault Locator for 1500 V Solar PV Systems, Frequency Measurement Accuracy 0.01 Percent, Frequency Measurement Resolution Not Applicable
