- Item

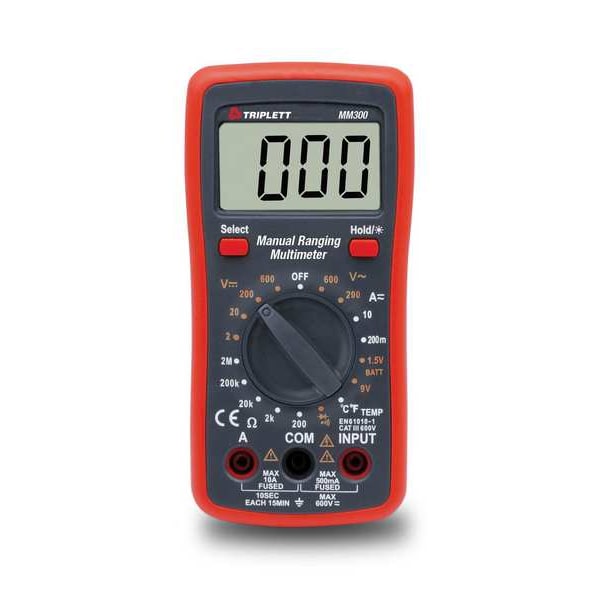

- True RMS Manual Ranging Digital Multimet
- Display Type
- LCD
- Data Hold
- Yes
- Instrument Counts
- 2000
- Includes
- Test leads and (3) AAA batteries
- Standards
- CE,ROHS
- Auto Power Off
- Yes
- Data Logging
- Yes
- Audible Continuity
- Yes
- Diode Test
- Yes
- Material
- Plastic
- Color
- Gray/Red
- For Use With
- For the Professional or DIYer. Diagnose common wiring problems; Test batteries, solar cells, wall plugs, and power outlets; Check polarity of wires in wiring installations; Measure input and output resistance of circuits (motors, transformers, resistors); Check continuity of wires, circuits
- Voltage (AC)
- 600V AC/DC
- Calibration Certificate Included
- No
- Weight
- 0.7lbs
- Instrument Safety Rating
- CAT III 600V
- Intrinsically Safe
- No
- Auto Ranging
- No
- Temperature Measurement Resolution
- 1 Degrees F
- Bluetooth Compatible
- No
- Temperature Measurement Accuracy
- +/-(1.5%+15D); +/-(1.0%+4D)
- Maximum AC Current Measurement
- 10 A
- Resistance Measurement Resolution
- 0.1 ohm
- Maximum DC Current Measurement
- 10 A
- Minimum AC Current Measurement
- 200 mA
- Battery Voltage
- 1.5V
- Minimum Temperature Measurement
- 14 Degrees F
- Minimum AC Voltage Measurement
- 2 V
- AC Response Calculation
- TRMS
- Maximum DC Voltage Measurement
- 600 V
- DC Voltage Measurement Resolution
- 1 mV
- Removable Screen
- No
- Maximum Temperature Measurement
- 2,000 Degrees F
- Maximum AC Voltage Measurement
- 600 V
- Frequency Measurement Accuracy
- +/-1%
- Current Leakage Testing
- No
- Basic AC Voltage Accuracy
- +/-1.0% of Reading +5 Digits
- Maximum Storage Temperature
- 122 Degrees F
- Dustproof
- No
- AC Current Measurement Resolution
- 100 uA
- Waterproof
- No
- Resistance Measurement Accuracy
- +/-1.0% of Reading + 10 Digits
- Batteries Included
- Yes
- DC Current Measurement Resolution
- 100 uA
- Basic DC Voltage Accuracy
- +/-0.8% of Reading +5 Digits; +/-1.0% of Reading +5 Digits
- Thermal Imaging
- No
- Fuse Access
- Yes
- Battery Access
- Yes
- Minimum Operating Temperature
- 32 Degrees F
- Minimum Storage Temperature
- 14 Degrees F
- Minimum DC Current Measurement
- 200 mA
- Parameters Measured
- AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Temperature
- Minimum DC Voltage Measurement
- 2 V
- Basic AC Current Accuracy
- +/-1.5% of Reading +4 Digits; +/-2.0% of Reading +4 Digits
- AC Voltage Measurement Resolution
- 100 mV
- Minimum Resistance Measurement
- 200 ohm
- Maximum Resistance Measurement
- 2 megaohm
- Basic DC Current Accuracy
- +/-1.5% of Reading +4 Digits; +/-2.0% of Reading +10 Digits
