  5. Handheld Oscilloscope, 500 MHz MHz, 4 Channels, 153mm Full Color LCD

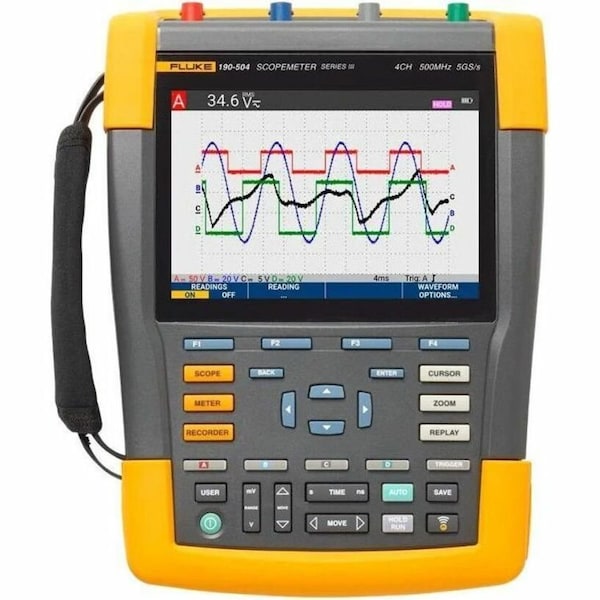

Fluke Handheld Oscilloscope, 500 MHz MHz, 4 Channels, 153mm Full Color LCD FLUKE-190-504-III - main
Shop FLUKE

Handheld Oscilloscope, 500 MHz MHz, 4 Channels, 153mm Full Color LCD

  • Mfr # FLUKE-190-504-III

  • Zoro # G510437140

product price:  $7,828.99
/ea
Free Shipping & Returns

Key Features

Channels
4
Bandwidth (MHz)
500 MHz
Display
153mm Full Color LCD
Sampling Rate
125 MS/s
Glitch Capture
8 ns Peak Detect on each Channel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FLUKE-190-504-III
Zoro #
G510437140
UPC #
195112021903
Country of Origin
Romania

Dimensions

Bandwidth (MHz)
500 MHz
Max. Record Length
10k/ Channel, 30,000 Points per Input (Scope Record mode)
Manufacturers Warranty Length
1 yr (Battery and Accessories), 3 yr (Main Instrument)
Bandwidth
500 MHz
Display Screen Width
3.5 in
Display Screen Length
5.2 in
Memory Depth
30,000 Data Points Per Channel

Details

Item
Handheld Oscilloscope
Channels
4
Display
153mm Full Color LCD
Sampling Rate
125 MS/s
Glitch Capture
8 ns Peak Detect on each Channel
Cursors and Zoom
Ranges from Full Record Overview to Zoom in upto Sample Level
FFT Analysis
Frequency Spectrum Using FFT Analysis
Waveform / Measurement Stored
(1) 190-XX2 or (2) 190-X04 Mathematical Operations on 2 Input Channels (A and B, C and D): Add, Subtract, Multiply, Frequency Spectrum using FFT, X-Y-mode
Battery Type
Li-Ion
Safety Rating
1,000 V CAT III/600 V CAT IV (EN61010-1)
Triggering Mode
Auto
Input Sensitivity
2 mV to 100 V/div
Persistence
Digital Persistence Giving Analog Oscilloscope-Like Waveform Decay
Includes
(4) TRM50 Cable Terminators, (4) VPS410-II Probes, AC Power Adapter, Carrying Case, DWA-131 Wi-Fi Dongle, Hand Strap, Hanging Strap, Power Cord, USB Cable
Interface
USB
Calibration Certificate
No
True RMS
Yes
Real Time Clock
Yes
Features
Dedicated 999 Count Digital Multimeter, Easy-Access Battery Door, Four Electrically Isolated Inputs, Four Meter Measurements Via Scope BNC Inputs in Four-Channel Models, Scope Record Roll Mode, Capture Waveform Sample Data for upto 48 Hours, Trend plot, Trend Measurement Readings for upto 22 Days
Time Base - Maximum
4 sec/div
Calibration Certificate Type
Not Certified
Time Base - Minimum
1 nsec/div
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Basic DC Voltage Accuracy
+/-(1.50% +6 Counts)
Input Sensitivity - Maximum
100 V/div
AC Voltage Measurement - Maximum
1,100 V
Input Sensitivity - Minimum
100 V/div
IP Rating
IP51
Digital Display Screen Type
LCD
Standards
EN 61010-1, IEC 61010-2-030: CAT IV 600V/CAT III 1000V
Battery Run Time
7 hr
Number of Channels
4
Basic AC Voltage Accuracy
+/-(1.50% +10 Counts)
Battery Chemistry
Lithium Ion
Power Source
Battery
Channel Source Isolation
Fully Isolated
Body Style
Handheld
AC Voltage Measurement Resolution
100 mV
AC Voltage Measurement - Minimum
500 mV
Includes Batteries
Batteries Included
AC Magnitude Calculation
True RMS

Description

Handheld Oscilloscope, Bandwidth (MHz) 500 MHz, 4 Channels, 153mm Full Color LCD Display, True RMS Yes, Sampling Rate 125 MS/s, (1) 190-XX2 or (2) 190-X04 Mathematical Operations on 2 Input Channels (A and B, C and D): Add, Subtract, Multiply, Frequency Spectrum using FFT, X-Y-mode Waveform / Measurement Stored, Max. Record Length 10k/ Channel, 30,000 Points per Input (Scope Record mode), FFT Analysis Frequency Spectrum Using FFT Analysis

Restrictions

Hazardous material
