  9. Infrared Camera, 0.15m to Infinity, 640 x 480 Pixels
Shop All Infrared Thermometers
Fluke

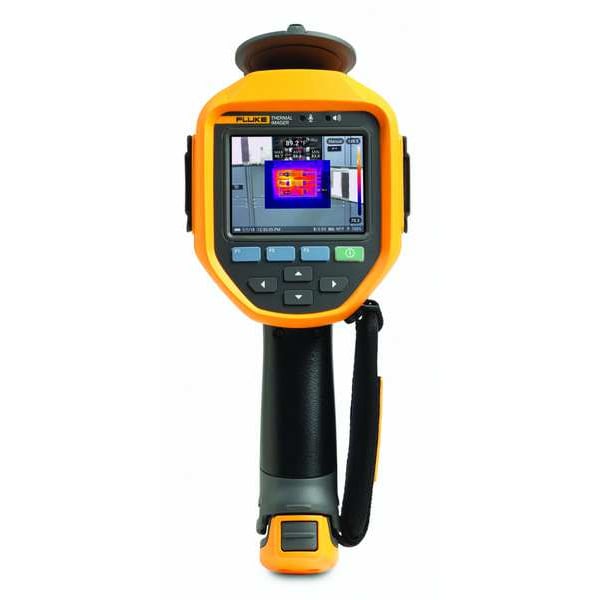

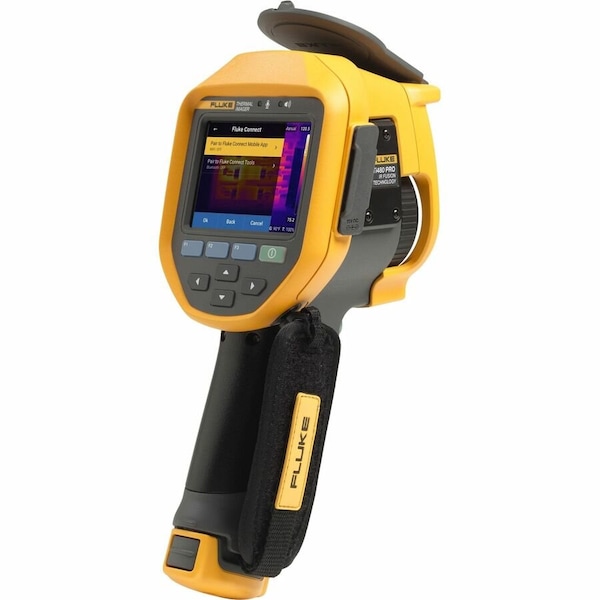

Infrared Camera, 0.15m to Infinity, 640 x 480 Pixels

product price: $13,399.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Temp. Range (F) - Infrared -14 Degrees to 1832 Degrees
  • Temp. Range (C) - Infrared -10 Degrees to 1000 Degrees
  • Temp. Accuracy (F) - Infrared +/-2%
  • Temp. Accuracy (C) - Infrared +/-2.0% or +/-2.0 Degrees
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 2 yr
Display Size 3.5 in
Manufacturer Warranty Length 2 yr

Details

Promotion Restriction Not eligible for promotion
Item Infrared Camera
Temp. Range (F) - Infrared -14 Degrees to 1832 Degrees
Temp. Range (C) - Infrared -10 Degrees to 1000 Degrees
Temp. Accuracy (F) - Infrared +/-2%
Temp. Accuracy (C) - Infrared +/-2.0% or +/-2.0 Degrees
Data Logging - Instrument Yes
Display - IR Camera 3.5 in Color LCD
Thermal Sensitivity - IR Camera 50 mK
Laser Sighting Yes
Special Features Multiple Delta T Markers, Rectangles Markers In Camera, Spot Markers, Transmission Correction, Video Recording, Streaming Video Output to PC, LaserSharp Auto Focus Calculates Distance to Your Designated Target, MultiSharp Focus Delivers Automatically Focused Images Throughout Your Field of View, IR Fusion Technology to Easily Adjust Visible and Infrared Image Blending, Fluke Connect Links Camera to The Fluke Network of Wireless Test and Measurement Tools, IR Photo Notes, Fluke Connect Smart View Desktop Software, 1280 x 960 Pixels with Super Resolution
Picture In Picture Yes
Ambient Temp. Range (F) 14 Degrees to 122 Degrees
Focus Range - Infrared 0.15m to Infinity
Frame Rate - IR Camera 60 Hz
Green Environmental Attribute Product is Rechargeable
Focus Method Auto, Manual
Articulating Lens No
Ambient Temp. Range -20 Degrees to 50 Degrees C
Thermal And Visible Light Blending No
Spectral Response - Infrared 7.5 to 14.0um
Detector Resolution - Infrared 640 x 480 Pixels
Multiple Lens Option Yes
Includes Adjustable Hand Strap, Battery Charger, Carrying Case, HDMI Video Cable, Power Supply, Transport Bag, USB Cable
Item - Infrared Camera Infrared Camera
Image Notation Voice
Wireless Yes
File Formats BMP, GIF, JPEG, PNG, TIFF
Emissivity Fixed
Thermal and Visible Light Blending No
Safety Rating IEC 61010-1: Overvoltage Category II, Pollution Degree 2
Charger Replacement No
Included Charger Yes
Display Resolution - IR Camera 640 x 480 Pixels
Alarm No
Field of View - IR Camera 24.0 Degrees Horizontal x 17.0 Degrees Vertical
NIST Certified No
Visual Light Resolution 5 MP
Removable Memory Card 4GB MicroSD
Drop Tested 6.5 ft
Thermal Sensitivity 50 mK
Display Resolution 640 x 480
Standards CFR 47, Part 15 Subpart B, CISPR 11: Group 1, Class A, IEC 61010-1: Overvoltage Category II, Pollution Degree 2, IEC 61326-1, IEC 61326-1: Basic EM Environment
Field of View 34 Degrees x 24 Degrees
Focus Distance - Infrared Minimum of 0.15 m
Auto Power Off No
Features Data Logging, Image Notation
Digital Display Screen Type LCD Touchscreen
Maximum Temperature Measured Degrees F 1,832 Degrees F
Infrared Resolution 640 x 480
Maximum Emissivity Setting 1.00
Maximum Operating Temperature Degrees F 122 Degrees F
Portability Handheld
Minimum Focus Distance 15 cm
Alert Type Digital Display, Sound
Data Transfer Type Wireless
Accuracy Degrees C +/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater
Minimum Operating Temperature Degrees F 14 Degrees F
Frame Rate 9 Hz, 60 Hz
Minimum Temperature Measured Degrees F -4 Degrees F
Series Professional
Battery Run Time 3 hr
Minimum Emissivity Setting 0.01
Lens Angles Included 34 Degrees
Minimum Temperature Measured Degrees C -20 Degrees C
Accuracy Degrees F +/-2 Degrees C or 2% (at 25 Degrees C nominal, whichever is greater)
Battery Chemistry Lithium Ion
Number of Batteries Required 2
Calibration Certificate Type Available Separately
Intrinsic Safety Not Specified Intrinsically Safe
Emissivity Adjustability Adjustable
Interface SD Card, USB, Wireless
Batteries Included Yes
Temperature Alerts High Temperature, Low Temperature
Maximum Temperature Measured Degrees C 50 Degrees C

Description

Infrared Camera, Temperature Alerts High Temperature, Low Temperature, Frame Rate 9 Hz, 60 Hz, Visual Light Resolution 5 MP, Calibration Certificate Type Available Separately, Alert Type Digital Display, Sound, Data Transfer Type Wireless, Digital Display Screen Type LCD Touchscreen, Emissivity Adjustability Adjustable, Maximum Emissivity Setting 1.00, Minimum Emissivity Setting 0.01, Thermal Sensitivity 50 mK, Minimum Focus Distance 15 cm, Minimum Operating Temperature Degrees F 14 Degrees F
