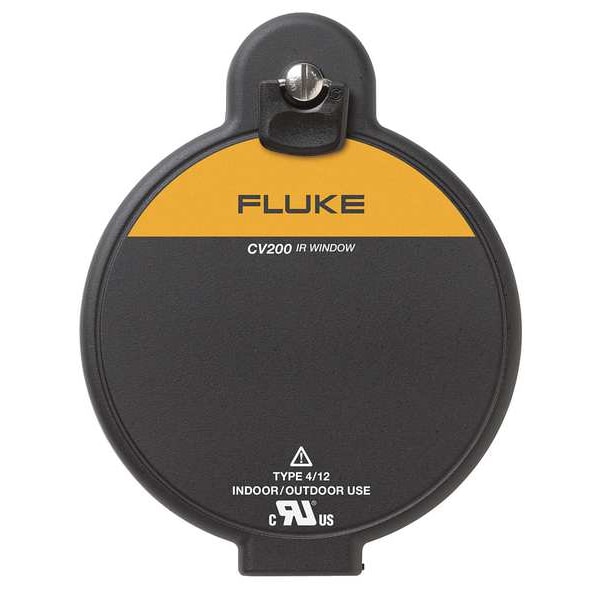

Infrared Window, 50 mm Dia, Hand Turn Door
- Mfr # FLUKE-CV200
- Zoro # G5254557
product price:Â
$
460.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Features
Arc-Fault Protection to 63 kA
Includes
2 in IR Window, Hand Turn Door Latch
NEMA Rating
12, 4
Components
ClirVu(R) Infrared Window, CV200
Body Material
Zinc/Aluminum Alloy
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- FLUKE-CV200
- Zoro #
- G5254557
- UPC #
- 095969683241
- Country of Origin
- China
- Item
- Infrared Window
- Features
- Arc-Fault Protection to 63 kA
- Includes
- 2 in IR Window, Hand Turn Door Latch
- NEMA Rating
- 12, 4
- Components
- ClirVu(R) Infrared Window, CV200
- Body Material
- Zinc/Aluminum Alloy
- Gasket Maximum Temperature
- 450 Degrees F
- IP Rating
- IP67
- Optic Maximum Temperature
- 450 Degrees F
- Body Maximum Temperature
- 450 Degrees F
- Use
- Electrical Thermal Imaging Inspections
- Voltage Range
- Any
- Viewing Aperture Area
- 2.24 sq in
- Minimum Operating Temperature Degrees F
- -40 Degrees F
- Cover Material
- Stainless Steel
- Frame Material
- Zinc-Aluminum Alloy
- Maximum Operating Temperature Degrees F
- 450 Degrees F
- Lens Material
- Zinc Selenide
- For Outdoor Use
- Yes
Dimensions
- Window Thickness
- 0.08 in
- Crystal Insert Size
- 50mm dia
- Viewing Aperture Size
- 45mm dia
- Manufacturers Warranty Length
- No Warranty (Service Available)
- Manufacturer Warranty Length
- Limited Lifetime Manufacturers Warranty
- Crystal Insert Diameter
- 1.97 in
- Viewing Aperture Diameter
- 1.69 in
- Fits Chest Size
- Arc-Fault Protection to 63 kA
Description
Infrared Window, Maximum Operating Temperature Degrees F 450 Degrees F, Minimum Operating Temperature Degrees F -40 Degrees F, Optic Maximum Temperature 450 Degrees F, Viewing Aperture Area 2.24 sq in, Viewing Aperture Diameter 1.69 in, Viewing Aperture Height Not Applicable, Viewing Aperture Width Not Applicable, Window Thickness 0.08 in, Body Maximum Temperature 450 Degrees F, Includes 2 in IR Window, Hand Turn Door Latch, IP Rating IP67, Gasket Maximum Temperature 450 Degrees F
