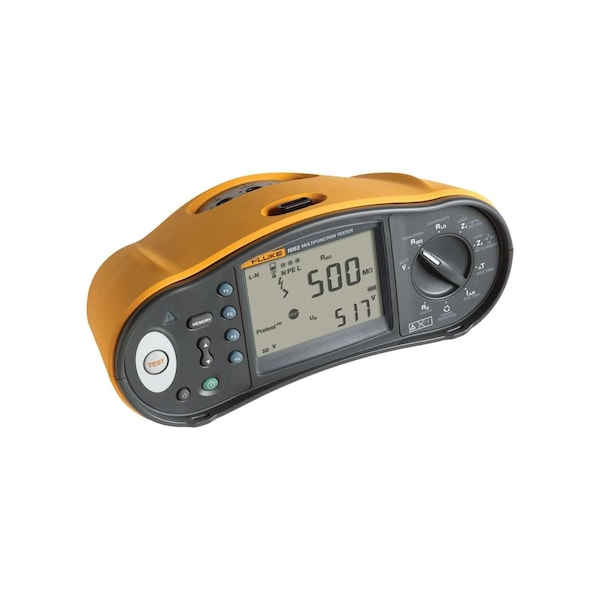

Fluke Insulation Tester, Digital, Alkaline FLK-1663 US - main

Insulation Tester, Digital, Alkaline

  • Mfr # FLK-1663 US

  • Zoro # G110993510

product price:  $2,479.99
/ea
Free Shipping & Returns

Key Features

Standards
cCSAus, CE, N10140, TUV SUD
Calibration Certificate
Available Separately
Auto Power Off
Yes
Auto Ranging
Yes
Features
Calculates Prospective Earth Fault Current (PEFC/IK) and Prospective Short-Circuit Current (PSC/IK), Checks Wiring Polarity to Detect Broken N Wires, Includes Z-Max Memory for Loop Tests to Support Easy Evaluation of the Highest Loop Test Value, Measures Motor Windings with Continuity Test, Measures RCD Switching Time and Tripping Level (Ramp Test), Measures Trip Time and Current for RCD Type a and AC in One Test, Provides Automatic RCD Test Sequence, Provides Unique Zero Adapter for Fast, Reliable and Accurate Test Lead and Mains Cord Compensation
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLK-1663 US
Zoro #
G110993510
UPC #
095969850131
Country of Origin
United Kingdom

Dimensions

Tool Length
3.9 in
Manufacturer Warranty Length
3 yr
Battery Size
AA
Tool Width
9.8 in
Tool Height
4.9 in

Details

Item
Insulation Tester
Standards
cCSAus, CE, N10140, TUV SUD
Calibration Certificate
Available Separately
Auto Power Off
Yes
Auto Ranging
Yes
Features
Calculates Prospective Earth Fault Current (PEFC/IK) and Prospective Short-Circuit Current (PSC/IK), Checks Wiring Polarity to Detect Broken N Wires, Includes Z-Max Memory for Loop Tests to Support Easy Evaluation of the Highest Loop Test Value, Measures Motor Windings with Continuity Test, Measures RCD Switching Time and Tripping Level (Ramp Test), Measures Trip Time and Current for RCD Type a and AC in One Test, Provides Automatic RCD Test Sequence, Provides Unique Zero Adapter for Fast, Reliable and Accurate Test Lead and Mains Cord Compensation
Includes
Hard Carrying Case, Mains Cord, Padded Carrying and Waist Strap, Quick Reference Guide, Standard Test Lead Set, TP165X Remote Control Probe and Lead, Zero Adapter
Test Voltage
100V DC, 1,000V DC, 250V DC, 500V DC
Insulation Limit Alarm
No
Insulation Resistance Resolution
0.01 megaohm to 1 megaohm
Power Source
Battery, Wire Leads
Data Logger
Yes
Waterproof
No
Test Current
1 mA
Bluetooth Compatible
No
Minimum Insulation Resistance
0.01 megaohm
Backlit Digital Display
Yes
PI/DAR Testing
No
Pass/Fail Selection Limits
No
IP Rating
IP40
USB Data Download Included
Yes
Communication Protocol
USB
Capacitance Auto Discharge
Yes
Battery Chemistry
Alkaline
Maximum AC Voltage Measured
500 V
Number of Records Stored
3,000
Alert Type
Digital Display
Number of Batteries Required
6
Display Type
Digital
Maximum Insulation Resistance
1,000 megaohm
Greater Than 30V Warning
No
Timed Ramp Voltage Test
Yes
Parameters Measured
AC Voltage, Continuity, DC Voltage, Frequency, Ground Resistance
Number of Digits
4
CAT Safety Rating
CAT III, CAT IV 300V
Input Impedance
360 kiloohm
Includes Batteries
Yes
Dustproof
No
Resistance Accuracy
+/-5%
Live Circuit Voltage
500V AC
Testing Functions
AC Voltage, Continuity, DC Voltage, Frequency, Insulation Resistance
Remote Test Probe Included
Yes
Live Circuit Voltage Measurement - Minimum
0 V AC
Maximum Ground Resistance Measurement
2,000 ohm
Minimum AC Voltage Measured
0 V
Installation Tester Socket Region
US
Instrument Style
Handheld
Live Circuit Voltage Measurement - Maximum
500 V AC
Calibration Certificate Included
No Certification Included
Minimum Ground Resistance Measurement
200 ohm
Data Output Type
USB
Display Screen Type
LCD Touchscreen

Description

Insulation Tester, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating CAT III, CAT IV 300V, Calibration Certificate Available Separately, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof No, Greater Than 30V Warning No, Includes Hard Carrying Case, Mains Cord, Padded Carrying and Waist Strap, Quick Reference Guide, Standard Test Lead Set, TP165X Remote Control Probe and Lead, Zero Adapter, Insulation Limit Alarm No, Maximum Insulation Resistance 1,000 megaohm
