  9. Digital Multimeter, 600 V Max DC, 0 V Max AC, TRMS, 6,000 Instrument Counts, LCD

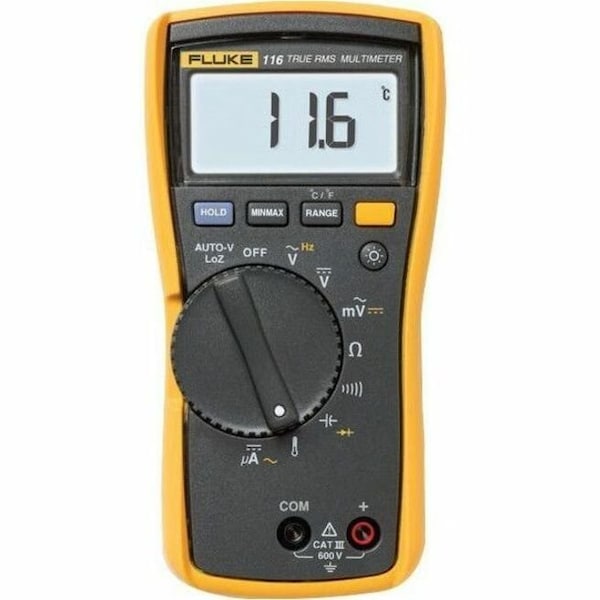

Fluke Digital Multimeter, 600 V Max DC, 0 V Max AC, TRMS, 6,000 Instrument Counts, LCD FLUKE-116 - main

Digital Multimeter, 600 V Max DC, 0 V Max AC, TRMS, 6,000 Instrument Counts, LCD

  • Mfr # FLUKE-116

  • Zoro # G1441203

original price: $282.99
13% off
new price: $245.64
/ea
Free Shipping & Returns

Key Features

Display Type
LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
(1 Pair) 4 mm Silicone Test Lead Set, 80BK Integrated Temperature Probe, Holster, Installed 9V Battery, Quick Reference Guide
Auto Power Off
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLUKE-116
Zoro #
G1441203
UPC #
095969359122
Country of Origin
Malaysia

Dimensions

Manufacturers Warranty Length
3 yr
Overall Width
3.4 in
Depth
1.8 in
Pulse Width
No
Overall Height
6.6 in
Battery Size
9V

Details

Item
Digital Multimeter
Display Type
LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
(1 Pair) 4 mm Silicone Test Lead Set, 80BK Integrated Temperature Probe, Holster, Installed 9V Battery, Quick Reference Guide
Auto Power Off
Yes
Data Logging
Yes
Audible Continuity
Yes
Diode Test
Yes
Display
LCD
Max. Ohms
40 megohm
Series
FLUKE (R) Fluke-116
Instrument Safety Rating
CAT III 600V
Capacitance Range
1 nF to 9999 uF
Calibration Certificate Included
No
Max. AC Amps
600 uA
Instrument Frequency Counter Range
0.01 Hz to 50 kHz
AC Response
TRMS
Temp. Range
-40 Degrees to 752 Degrees F
Auto Ranging
Yes
Multimeter Style
Compact - Basic Features
Max. DC Amps
600 uA
Basic DC Accuracy
+/-0.50% of Reading +2 Digits
Peak Hold
No
Duty Cycle
No
Intrinsically Safe
No
Maximum DC Voltage Measurement
600 V
Minimum Temperature Measurement
-40 Degrees F
Battery Chemistry
Alkaline
DC Voltage Measurement Resolution
0.1 V
Minimum Storage Temperature
-40 Degrees F
Frequency Measurement Resolution
0.01 Hz
Minimum Frequency Measurement
0.01 Hz
Maximum Resistance Measurement
40 megaohm
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)
Capacitance Measurement Accuracy
1.9% + 2
Batteries Included
Yes
Maximum Storage Temperature
140 Degrees F
Bluetooth Compatible
No
Basic AC Current Accuracy
1.5% + 3
Minimum AC Voltage Measurement
0 V
Temperature Measurement Accuracy
1% + 10 (-40 Degrees C to 400 Degrees C) 1% + 18 (-40 Degrees F to 752 Degrees F)
Maximum AC Current Measurement
600 uA
Battery Access
Yes
Maximum DC Current Measurement
600 uA
Bar Graph Included
Yes
AC Current Measurement Resolution
0.1 uA
Weight
550 g
Min-Max-Avg Button Included
Yes
Minimum AC Current Measurement
0 uA
Removable Screen
No
AC Response Calculation
TRMS
Maximum AC Voltage Measurement
600 V
Battery Voltage
9V
DC Current Measurement Resolution
0.1 uA
Minimum/Maximum Memory
Yes
Minimum Capacitance Measurement
1 nF
Maximum Temperature Measurement
752 Degrees F
Resistance Measurement Accuracy
+/-5%
Minimum DC Current Measurement
0 mA
Waterproof
No
IP Rating
IP42
Maximum Operating Temperature
122 Degrees F
Minimum DC Voltage Measurement
0 V
Thermal Imaging
No
Basic DC Current Accuracy
1.0% + 2
Minimum Operating Temperature
14 Degrees F
Basic DC Voltage Accuracy
+/-0.50% + 2 Digits
Frequency Measurement Accuracy
0.1% + 2
Current Leakage Testing
No
Maximum Frequency Measurement
50 kHz
Basic AC Voltage Accuracy
1.0% + 3 (DC, 45 Hz to 500 Hz)2.0% + 3 (500 Hz to 1 kHz)
Minimum Resistance Measurement
0.1 ohm
Dustproof
No
Maximum Capacitance Measurement
9,999 uF
AC Voltage Measurement Resolution
0.1 V
Software Included
No

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy 1.0 Percent + 3 (DC, 45 Hz to 500 Hz)2.0 Percent + 3 (500 Hz to 1 kHz), Basic DC Voltage Accuracy +/-0.50 Percent + 2 Digits, Data Hold Yes, Basic DC Current Accuracy 1.0 Percent + 2, Instrument Safety Rating CAT III 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 6,000, Special Features Temperature and Microamp Measurement Range, Maximum AC Current Measurement 600 uA
