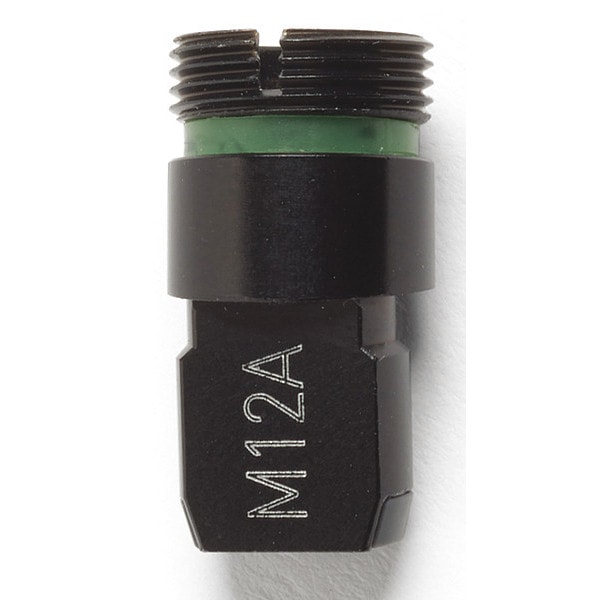

Fluke Networks Fiber Optic Tester, For Optic Cables FI-3000TP-AMPO12F - main

Fiber Optic Tester, For Optic Cables

  • Mfr # FI-3000TP-AMPO12F

  • Zoro # G6757827

product price:  $262.99
/ea
Free Shipping & Returns

Key Features

Includes
MPO 12 or 24 APC tip for bulkheads
Auto Power Off
Auto-off saves battery life
Application
Fiber Optic Video Inspection
For Use With
54XM13 (Fluke FI-3000)
Waterproof
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FI-3000TP-AMPO12F
Zoro #
G6757827
UPC #
-
Country of Origin
Lithuania

Dimensions

Dimensions
Length with dust cap: 7. 5 in (191 mm) || (with no dust cap or adapter tip) || 6. 625 in x 5. 375 in x 2. 125 in (168 mm x 137 mm x 54 mm)

Details

Item
MPO Bulkhead Tip
Includes
MPO 12 or 24 APC tip for bulkheads
Auto Power Off
Auto-off saves battery life
Application
Fiber Optic Video Inspection
For Use With
54XM13 (Fluke FI-3000)
Waterproof
No
Connector Type
MPO
Features
MPO 12 or 24 APC Tip
Adapter Type
MPO
Product Type
Tip
Compatible with Series
FiberInspector(TM) Ultra Camera
Compatible with Manufacturer Model Number
FI-3000
Camera type
5 Megapixel 1/4-inch CMOS sensor
Endtype Support
Single Fiber and MPO: 1x8 (8 fibers), 1x12 (8, 10, or 12 fibers), 1x16 (16 fibers), 2x12 (16, 20, or 24 fibers), 2x16 (32 fibers)
EMC
CISPR 11: Group 2, Class A || USA (FCC): 47 CFR 15 Intentional Radiators: This device complies with part 15 of the FCC Rules. || IEC 61326-1: Controlled Electromagnetic Environment; IEC 61326-2-1
Endface illumination
Coaxial blue LED
Resolution
1 µm
Vibration
2 g, 5 Hz to 500 Hz
Safety
IEC 61010-1: Pollution Degree 2
Shock
1 meter drop test
Temperature range
Storage: -10 °C to +60 °C (+14 °F to +140 °F) || Operating: -10 °C to +45 °C (+14 °F to +113 °F)
Altitude
Storage: 12,000 m || Operating: 4,000 m (3,200 m with AC adapter)
Power Adapter
Output: 15 VDC, 2 A maximum || Class II || Input: 100 to 240 VAC ±10%, 50/60Hz
Field of view
610 µm x 460 µm
Humidity range
RH non-condensing || Storage: 0 % to 95 % (95 °F to 113 °F, 35 °C to 45 °C) || Operating: 0 % to 95 % (32 °F to 95 °F, 0 °C to 35 °C)
Light source
LED, >100,000 hr life
Optional automated Pass/Fail Test Time
Less than 2 seconds per fiber
Wireless Transmission
Transmission* || Output power: <100 mWFrequency ranges: 2. 4 GHz (2412 MHz to 2462 MHz)
Test Limits
IEC 61300-3-35 ED. 2 MM || IEC 61300-3-35 ED. 2 SM APC || Document Only
Port illumination
White LED
Compatible with Mfr. Model No.
FI-3000
For Use with Mfr Model Number
FI-3000
Compatible Manufacturer Model Number
FI-3000
Compatible Manufacturer Part Number
FI-3000
For Use With Mfr. Model Number
FI-3000
Compatible with Manufacturer Model No.
FI-3000
Compatible Pump Manufacturer Part Number
FI-3000
Compatible Mfr. Model Number
FI-3000

Description

MPO Bulkhead Tip, For Use With 54XM13 (Fluke FI-3000), Product Type Tip, Includes MPO 12 or 24 APC tip for bulkheads, Compatible with Manufacturer Model Number FI-3000, Features MPO 12 or 24 APC Tip, Compatible with Series FiberInspector(TM) Ultra Camera, Standards Not Applicable, Compatible with Grainger Part Number 54XM13, Maximum Operating Temperature Not Applicable, Minimum Operating Temperature Not Applicable
